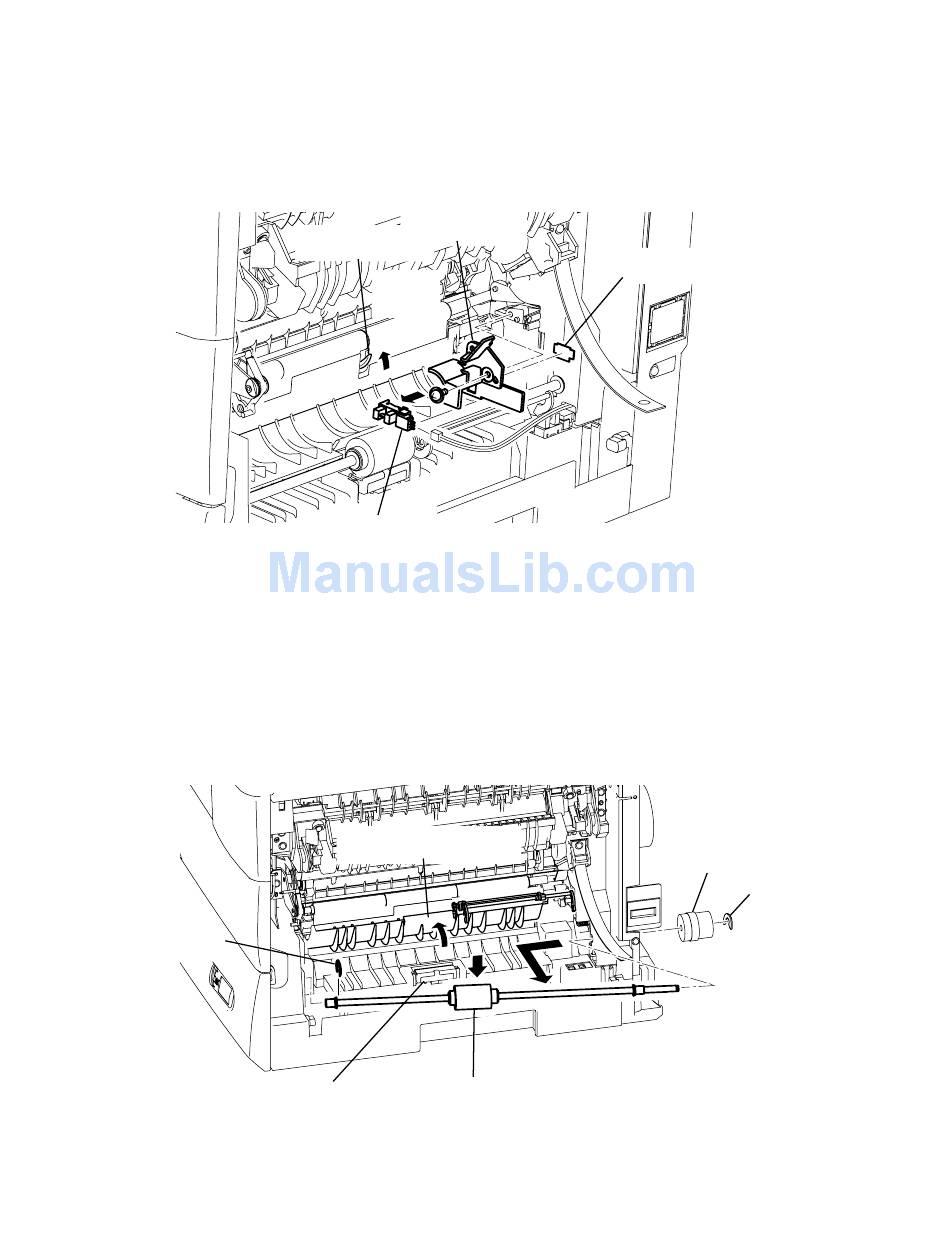

SENSOR PSS

1) Remove the Cover jam access.
2) Remove the Guide press B mounting screw, and then remove Guide press B while pulling up the Feeler
PSS.
3) Release the tab, and then remove the SENSOR PSS.

ROLLER PICKUP MP / PAD PRESSURE MP

1) Remove the Clutch (MG) (See page 5-42)
2) Remove the Cover jam access.
3) Remove two E-rings.
4) Lift the Guide paper MPDUP and press down the MP pressure.
5) Slide the ROLLER PICKUP MP to the left and remove.
E-ring
Guide press B
Feeler PSS
Sensor PSS
Guide paper MPDUP
MP pressure
Roller pickup MP
Sensor stopper
5-51 5-51
Clutch(MG)
E-ring
