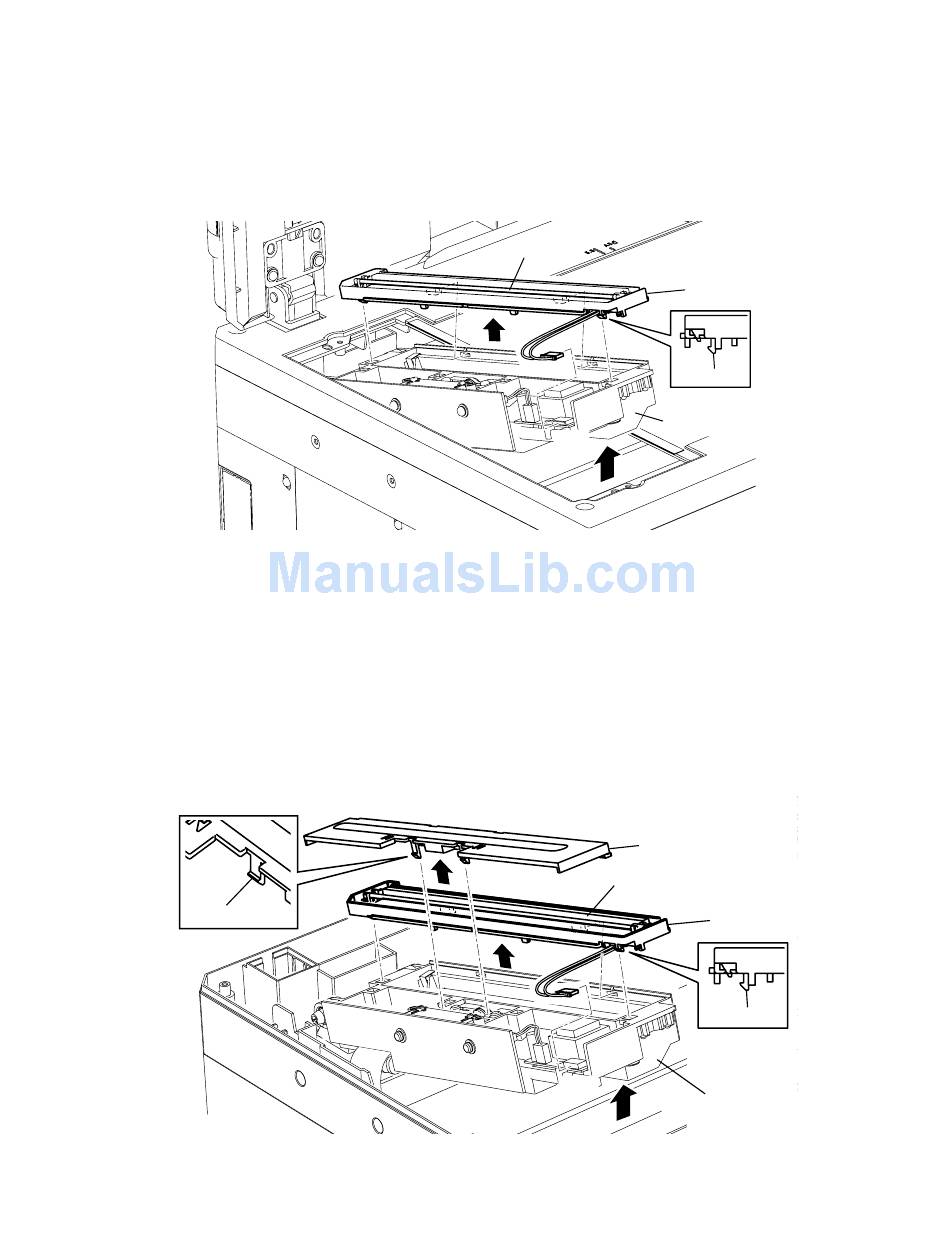

LAMP (MFX-1330)
1) Remove the Cover contact.
2) Remove the Cover lens.
3) Lift the front of the Frame scanner.
4) Disconnect the connector for the Lamp on the PCB INVERTER.
5) Release two locking tabs and two snap fits, and then remove the LAMP.
LAMP (F-300)
1) Remove the Cover ADF base. (See page 5-7)
2) Remove the Cover top PPF. (See page 5-13)
3) Remove the Cover lens.
4) Lift the front of the Frame scanner.
5) Disconnect the connector for the Lamp on the PCB INVERTER.
6) Release two locking tabs and two snap fits, and then remove the LAMP.
Snap fit
( See page 5-17)
H H H H
( See page 5-17Error! Bookmark not defined.)
H H
5-19 5-19
H H
Lamp
Frame scanner
CN2
Cover lens
Lamp
CN2
Frame scanner
Case lamp
Snap fit
Case lamp
Snap fit
