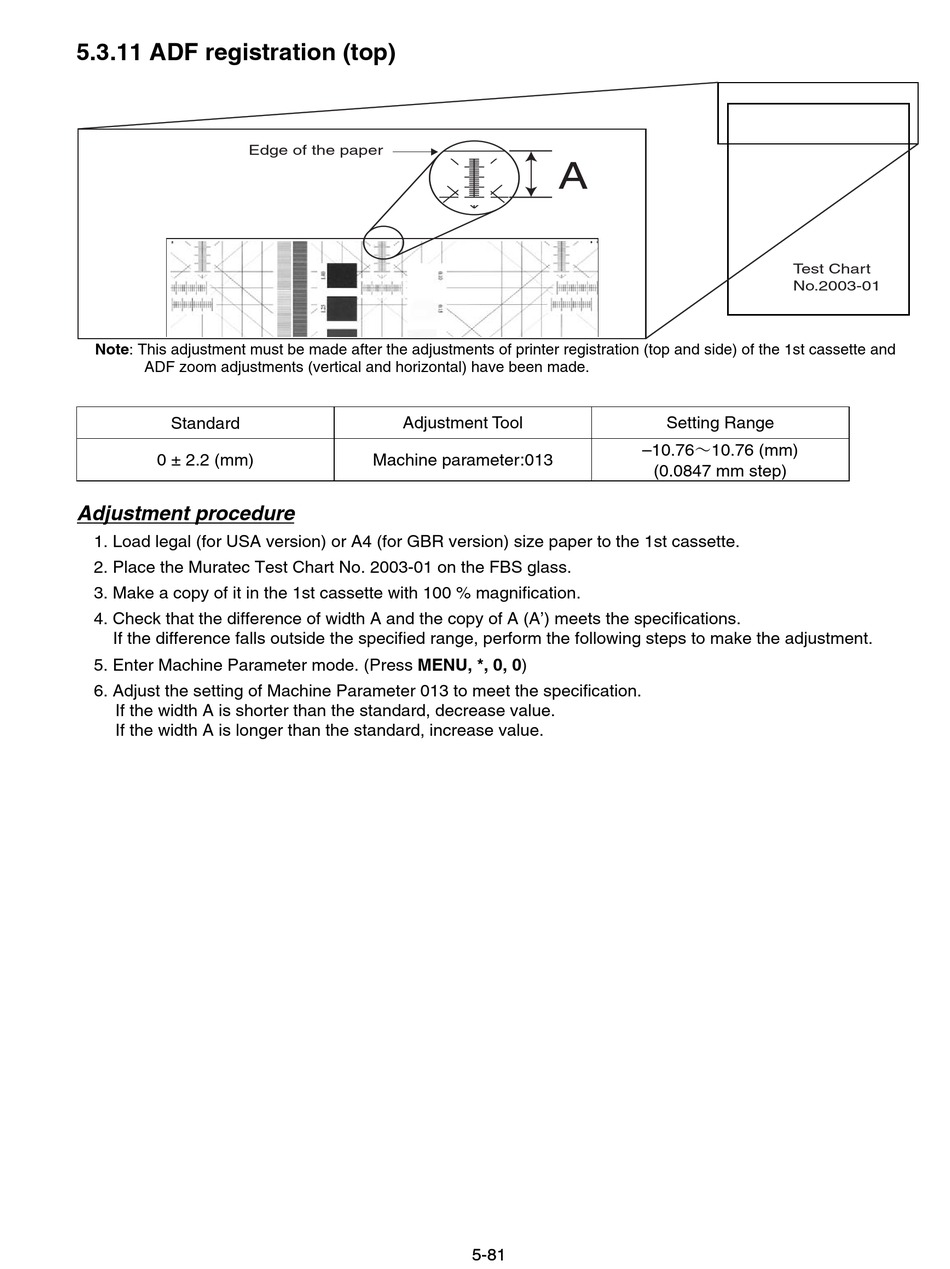

5.3.11 ADF registration (top)

Edge of the paper
Note: This adjustment must be made after the adjustments of printer registration (top and side) of the 1st cassette and
ADF zoom adjustments (vertical and horizontal) have been made.
Standard
0 ± 2.2 (mm)
Adjustment procedure
1. Load legal (for USA version) or A4 (for GBR version) size paper to the 1st cassette.
2. Place the Muratec Test Chart No. 2003-01 on the FBS glass.
3. Make a copy of it in the 1st cassette with 100 % magnification.
4. Check that the difference of width A and the copy of A (A') meets the specifications.
If the difference falls outside the specified range, perform the following steps to make the adjustment.
5. Enter Machine Parameter mode. (Press MENU, *, 0, 0)
6. Adjust the setting of Machine Parameter 013 to meet the specification.
If the width A is shorter than the standard, decrease value.
If the width A is longer than the standard, increase value.
Adjustment Tool
Machine parameter:013
5-81 5-81
A
Setting Range
–10.76～10.76 (mm)
(0.0847 mm step)
Test Chart
No.2003-01
