FRAME SCANNER (MFX-1330)

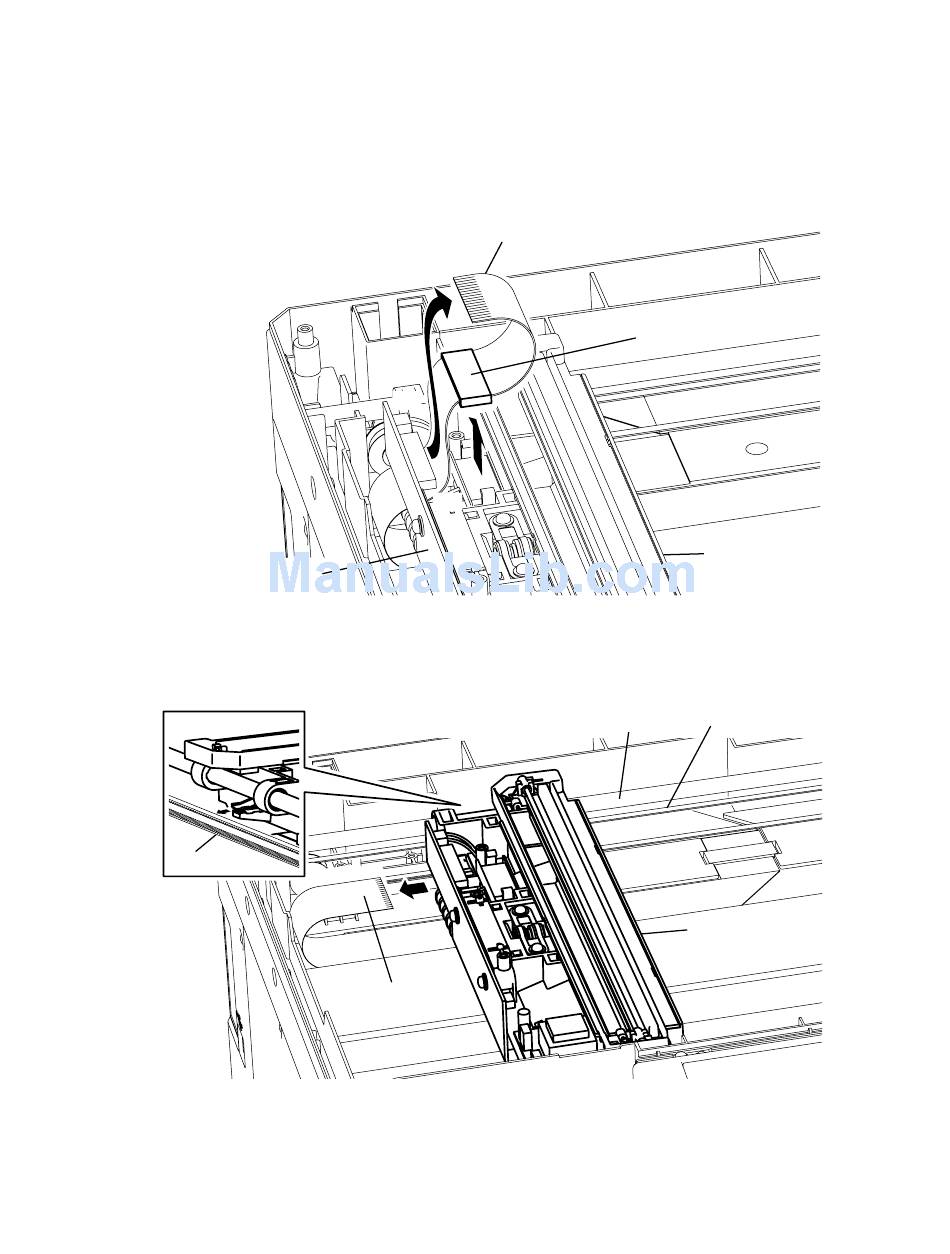

1) Remove Cover platen.
2) Remove the Cover top.
3) Remove the Cover lens.
4) Disconnect the Flat harness from the connector P1 on the PCB CCD.
5) Release two locking tabs, and then remove the Core.
PCB CCD
6) Disconnect the Flat harness on the Frame scanner.
7) Remove the belt from the Frame scanner.
Belt
( See page 5-7)
H H H H H H
( See page 5-13)
H H H H H H
( See page 5-17)
H H H H H H
Flat harness
P2
P1
Flat harness
5-28 5-28
Core
Frame scanner
Belt
Shaft guide
Frame scanner
