2.8.3 Development

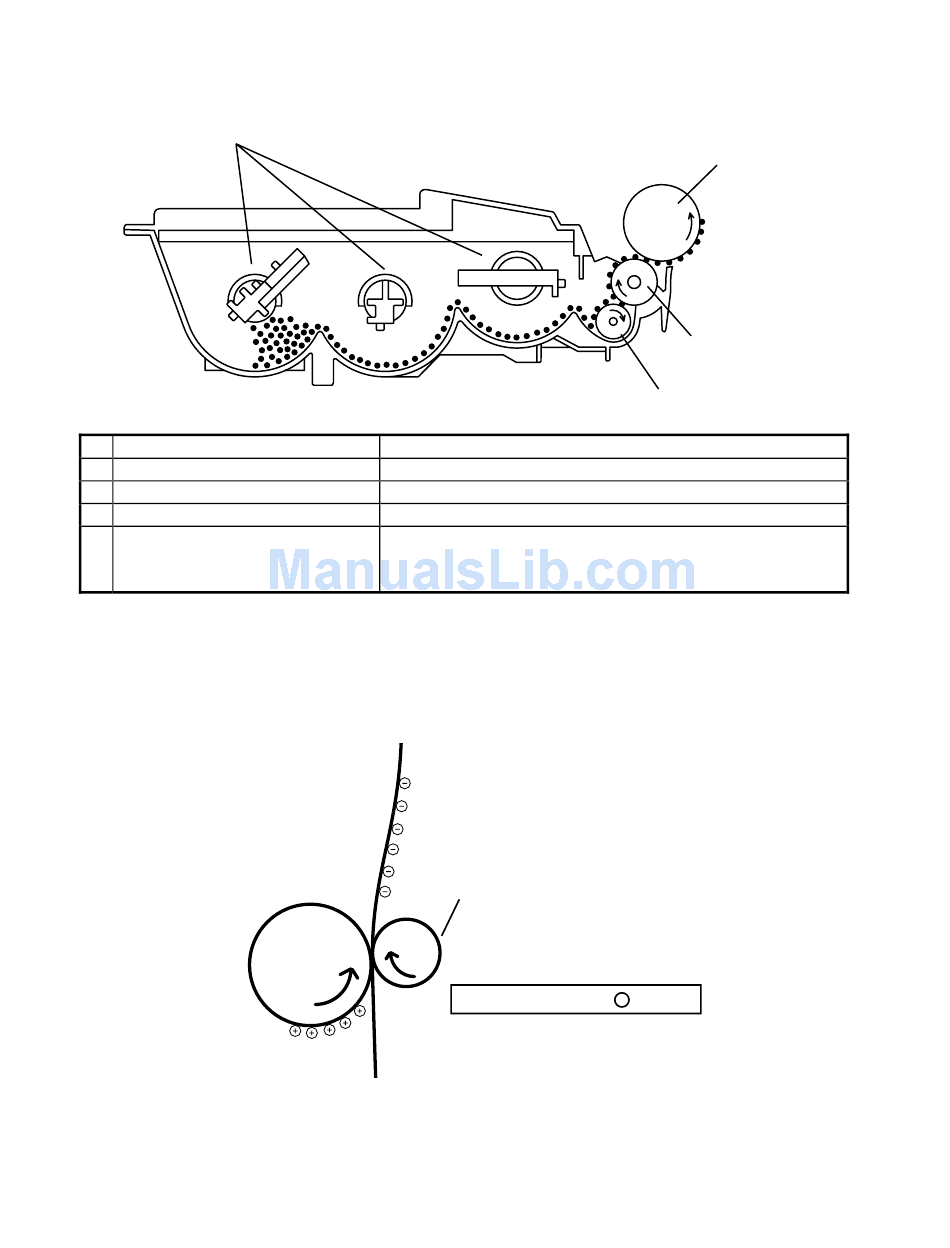

Toner is applied to the invisible static image on the Drum and a toner image is created on the surface.
Toner agitator
Part Name
1 Toner Agitator
2 Toner supply Roller
3 Developing Roller
4 Drum

2.8.4 Image Transfer

Image transfer is the process of transferring the toner image created on the Drum in the developing
process to paper. In the Roller Image Transfer, there is little generation of ozone due to corona
discharge. Also, there is no blur of toner because the paper is always pressed by the Drum and the
Image Transfer Roller.
PC Drum
Agitates toner.
Transports the toner to the developing roller.
Carries the toner to the Drum surface for development.
Exposed by LED light to create an invisible image and
rotates to carry the developed image to the paper
surface.
Image transfer roller
Hight voltage unit - output
