4. Fasten the counter to the machine frame using a screw.
5. Connect the relay cable to the P94 connector on connection board B.
6. Attach the other end of the relay cable to the counter cable.

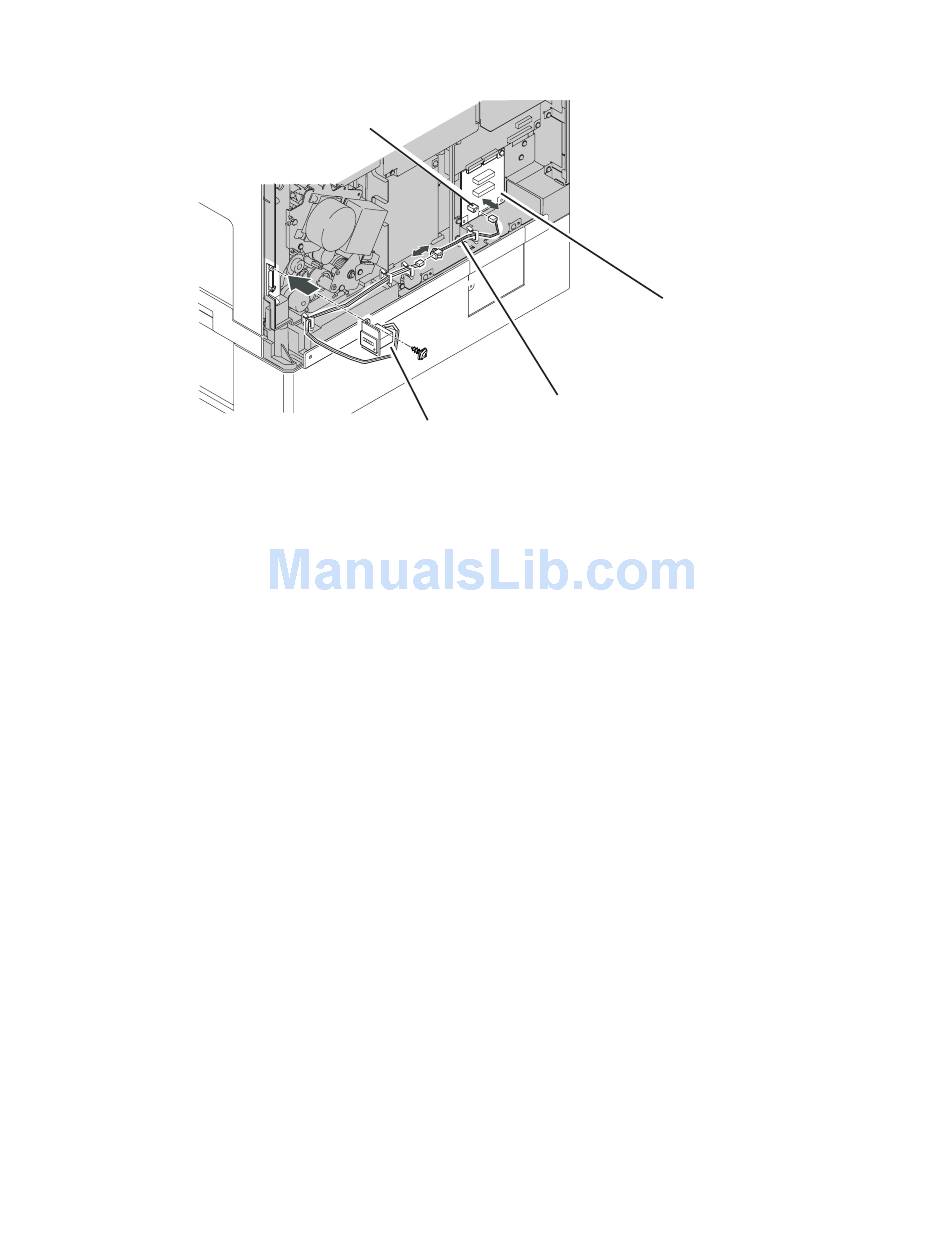

P94
Connection board B
Relay cable
Counter
7. Reattach the covers and the harness.
Be sure that wires are not caught when reattaching the covers.
The counter will now count the number of pages printed.
NOTE: When it is absolutely necessary to touch the ICs and other electrical components on the board, be
sure to ground your body.
6-6
