PCB INVERTER (F-300)
1) Remove the Cover ADF base. (See page 5-7)
2) Remove the Cover top PPF. (See page 5-13)
3) Remove the Cover lens. (See page 5-19)

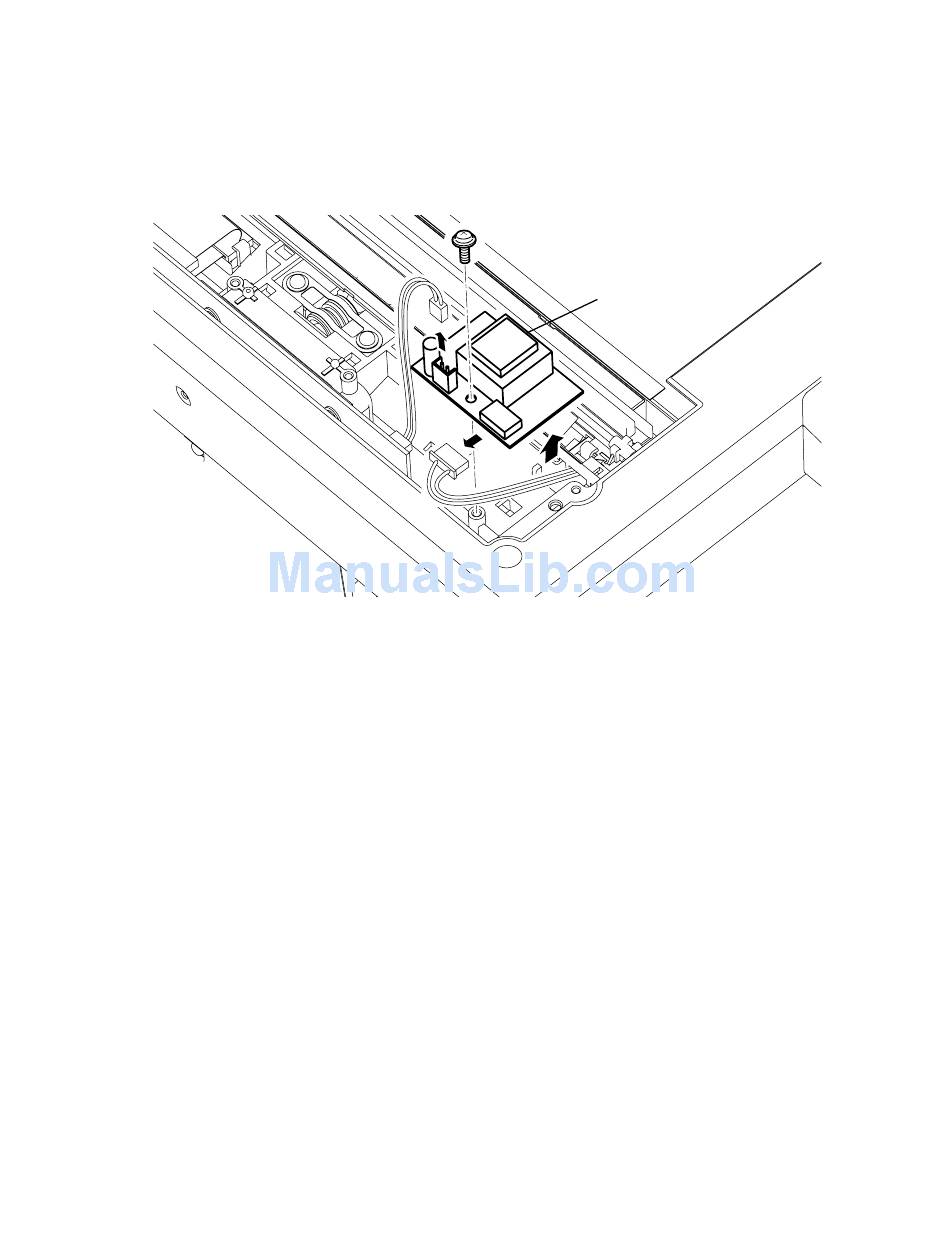

4) Remove the PCB INVERTER mounting screw, then disconnect two connectors and two locking tabs, and
then the PCB INVERTER.
CN1
CN2
5-18
5-18
PCB INVERTER
