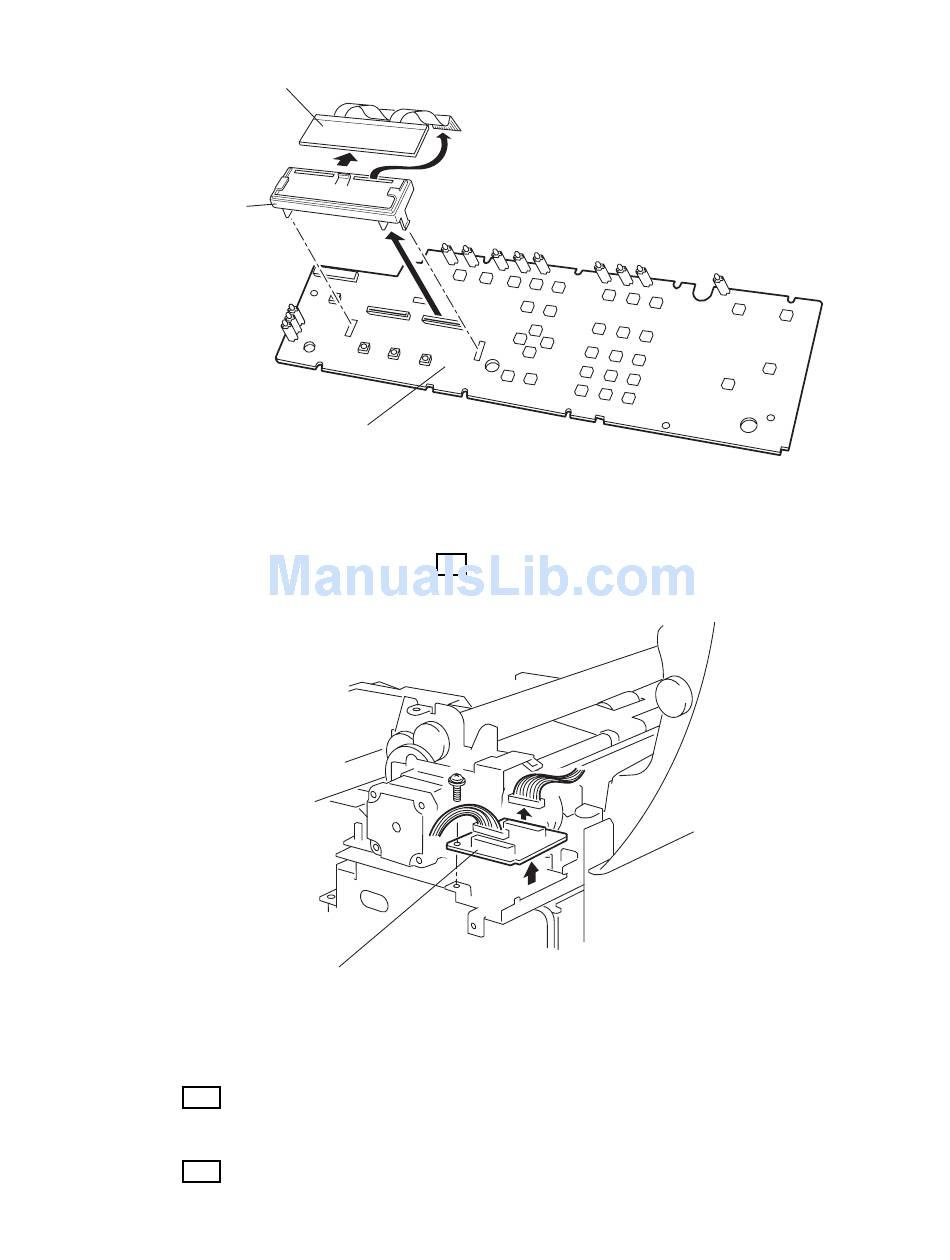

6. Remove the LCD support, and then remove the LCD.
LCD
LCD support
Panel 1
CONNECT ADF PCB
1. Remove the TOP REAR COVER. (See page 5-6.)
2. Disconnect two connector and remove a Connect ADF PCB mounting screw.
3. Remove the CONNECT ADF PCB.
Connect ADF PCB
INVERTER PCB
Refer to page 5-31.
LAMP
Refer to page 5-31.
5-19
