CONTROL COMMAND

■ Remote jack (CI-V) information

D CI-V connection
The transceiver's operating frequency, mode, VFO
and memory selection, can be remotely controlled
using the PC.
Choose the connection method from the following:
• A USB cable (A-B type, user supplied)
The required USB driver and driver install guide can be
downloaded from Icom web site.
Access to "http://www.icom.co.jp/world," then click
"Support," "Firmware Updates / Software downloads" in
sequence.
The download procedure on the web page may be
changed without notice.
• The optional CT-17 (CI-V level converter)
Connects to a PC with an RS-232C port.
D Preparing
The Icom Communications Interface-V (CI-V) is used
for remote control.
To control the transceiver, first set its address, data
communication speed, and transceive function. These
settings are set in Set mode. (p. 142)

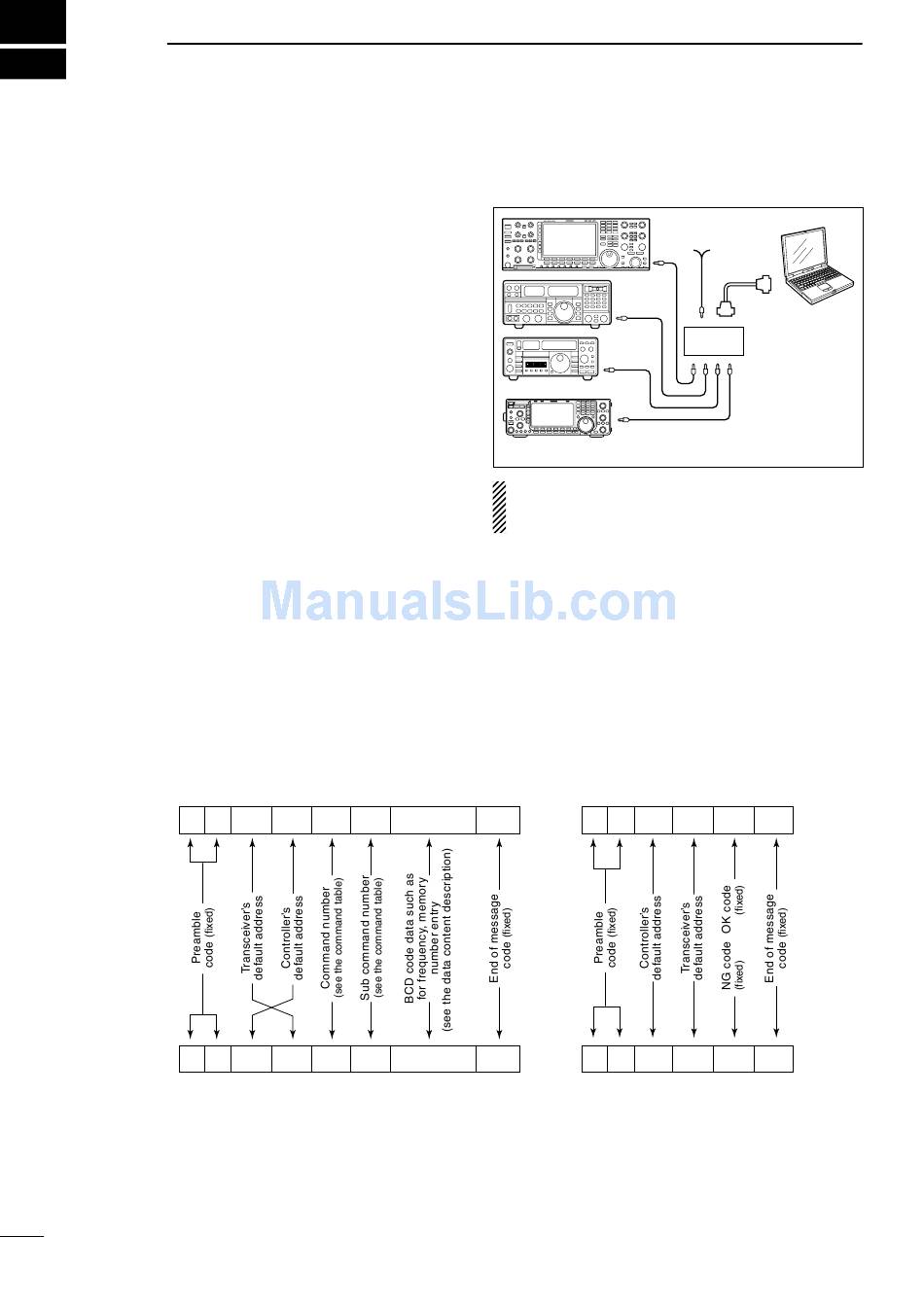

D Data format

The CI-V system can be operated using the following
data formats. Data formats differ according to
command numbers. A data area or sub command is
added for some commands.
Controller to IC-7600
FE FE
FE FE
IC-7600 to controller
159
q w e r t
7A E0 Cn Sc
E0 7A Cn Sc
q w e r t
IC-7600
When the transceiver is connected to a PC with the
USB cable (user supplied), the optional CT-17 is
not required.
OK message to controller
y u
Data area FD
Data area FD
y u
NG message to controller
9−15V DC
RS-232C
cable
ct-17
mini-plug cable
FE FE E0 7A FB
FE FE E0 7A FA
PC
FD
FD
