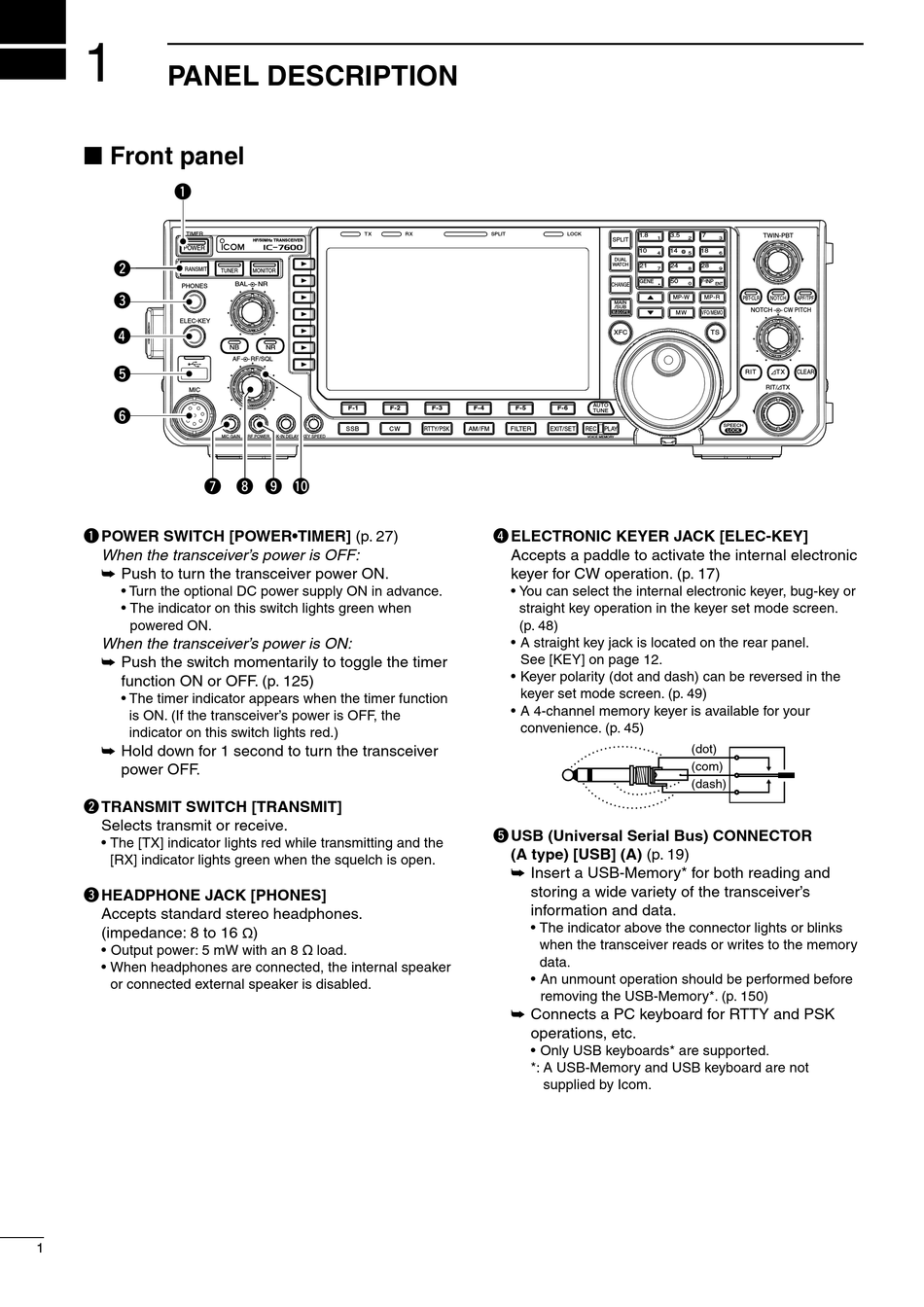

PANEL DESCRIPTION

■ Front panel

q
TIMER
POWER
w
TRANSMIT
PHONES
e
ELEC-KEY
r
t
MIC
y
u i o !0
q POWER SWITCH [POWER•TIMER] (p. 27)
When the transceiver's power is OFF:
Push to turn the transceiver power ON.
➥
• Turn the optional DC power supply ON in advance.
• The indicator on this switch lights green when
powered ON.
When the transceiver's power is ON:
➥ ush the switch momentarily to toggle the timer P
function ON or OFF. (p. 125)
• The timer indicator appears when the timer function
is ON. (If the transceiver's power is OFF, the
indicator on this switch lights red.)
Hold down for 1 second to turn the transceiver
➥
power OFF.
w TRANSMIT SWITCH [TRANSMIT]
Selects transmit or receive.
• The [TX] indicator lights red while transmitting and the
[RX] indicator lights green when the squelch is open.
e HEADPHONE JACK [PHONES]
Accepts standard stereo headphones.
(impedance: 8 to 16
• Output power: 5 mW with an 8 ø load.
• When headphones are connected, the internal speaker
or connected external speaker is disabled.
1
T X
HF/50MHz TRANSCEIVER
TUNER MONITOR
BAL NR
NB NR
AF RF/SQL
F- 1 F- 2
SSB CW
MIC GAIN RF POWER BK-IN DELAY KEY SPEED
)
ø
RX SPLIT LOCK
F- 3 F- 4 F- 5 F- 6
RTTY/PSK AM/FM FILTER EXIT/SET
r ELECTRONIC KEYER JACK [ELEC-KEY]
Accepts a paddle to activate the internal electronic
keyer for CW operation. (p. 17)
• You can select the internal electronic keyer, bug-key or
straight key operation in the keyer set mode screen.
(p. 48)
• A straight key jack is located on the rear panel.
See [KEY] on page 12.
• Keyer polarity (dot and dash) can be reversed in the
keyer set mode screen. (p. 49)
• A 4-channel memory keyer is available for your
convenience. (p. 45)
t USB (Universal Serial Bus) CONNECTOR
(A type) [USB] (A) (p. 19)
Insert a USB-Memory* for both reading and
➥
storing a wide variety of the transceiver's
information and data.
• The indicator above the connector lights or blinks
when the transceiver reads or writes to the memory
data.
• An unmount operation should be performed before
removing the USB-Memory*. (p. 150)
Connects a PC keyboard for RTTY and PSK
➥
operations, etc.
• Only USB keyboards* are supported.
*: A USB-Memory and USB keyboard are not
supplied by Icom.
1.8 3.5 7
1 2 3
SPLIT
10 14 18
4 5 6
DUAL
WATCH 21 24 28
7 8 9
GENE 50 F-INP
0
CHANGE ENT
MP-W MP-R PBT - CLR
MAIN
/SUB
NOTCH
MW VFO/MEMO
XFC TS
RIT
AUTO
TUNE
SPEECH
REC PLAY
LOCK
VOICE MEMORY
(dot)
(com)
(dash)
TWIN-PBT
NOTCH APF/TPF
CW PITCH
TX CLEAR
RIT/ TX
