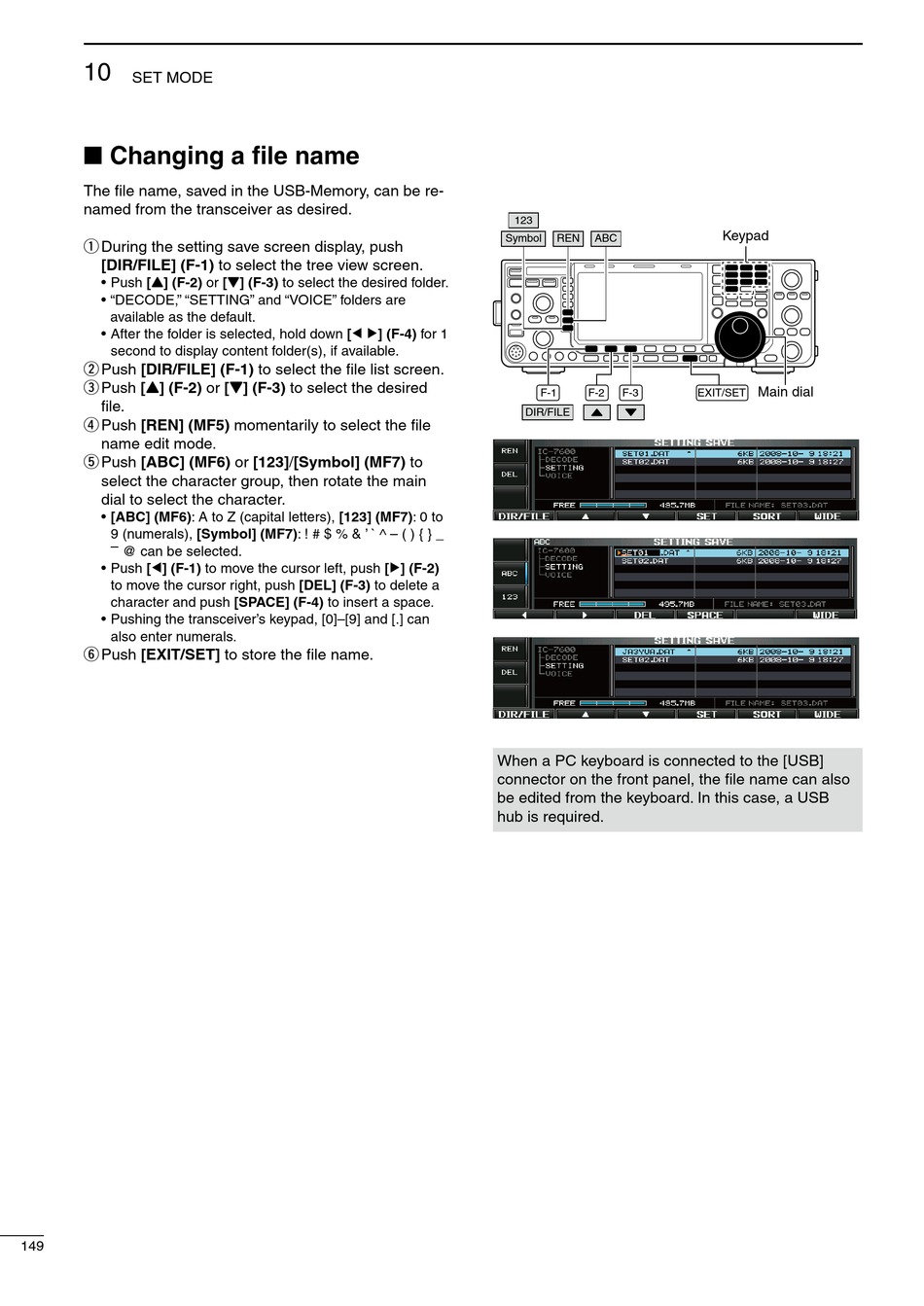

Changing A File Name - Icom IC-7600 Instruction Manual

10
SET MODE

■ Changing a file name

The file name, saved in the USB-Memory, can be re-
named from the transceiver as desired.
q During the setting save screen display, push
[DIR/FILE] (F-1) to select the tree view screen.
• Push [Y] (F-2) or [Z] (F-3) to select the desired folder.
• "DECODE," "SETTING" and "VOICE" folders are
available as the default.
• After the folder is selected, hold down [Ω ≈] (F-4) for 1
second to display content folder(s), if available.
w Push [DIR/FILE] (F-1) to select the file list screen.
e Push [Y] (F-2) or [Z] (F-3) to select the desired
file.
r Push [REN] (MF5) momentarily to select the file
name edit mode.
t Push [ABC] (MF6) or [123]/[Symbol] (MF7) to
select the character group, then rotate the main
dial to select the character.
• [ABC] (MF6): A to Z (capital letters), [123] (MF7): 0 to
9 (numerals), [Symbol] (MF7): ! # $ % & ' ` ^ – ( ) { } _
– @ can be selected.
• Push [Ω] (F-1) to move the cursor left, push [≈] (F-2)
to move the cursor right, push [DEL] (F-3) to delete a
character and push [SPACE] (F-4) to insert a space.
• Pushing the transceiver's keypad, [0]–[9] and [.] can
also enter numerals.
y Push [EXIT/SET] to store the file name.
149
123
Symbol REN ABC
F-1 F-2 F-3
DIR/FILE
When a PC keyboard is connected to the [USB]
connector on the front panel, the file name can also
be edited from the keyboard. In this case, a USB
hub is required.
Keypad
Main dial
EXIT/SET
