4
RECEIVE AND TRANSMIT

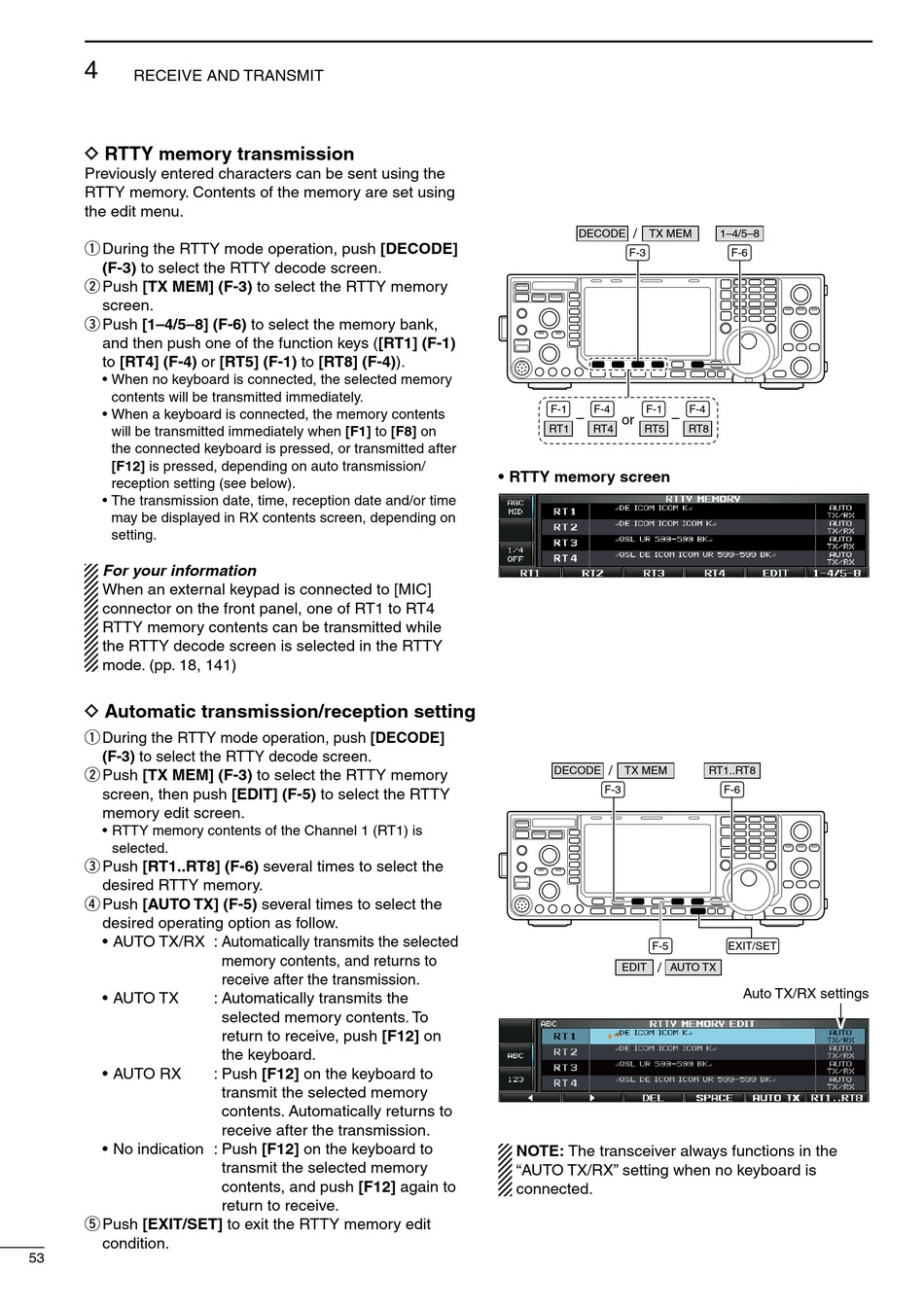

D RTTY memory transmission
Previously entered characters can be sent using the
RTTY memory. Contents of the memory are set using
the edit menu.
q During the RTTY mode operation, push [DECODE]
(F-3) to select the RTTY decode screen.
w Push [TX MEM] (F-3) to select the RTTY memory
screen.
e Push [1–4/5–8] (F-6) to select the memory bank,
and then push one of the function keys ([RT1] (F-1)
to [RT4] (F-4) or [RT5] (F-1) to [RT8] (F-4)).
• When no keyboard is connected, the selected memory
contents will be transmitted immediately.
• When a keyboard is connected, the memory contents
will be transmitted immediately when [F1] to [F8] on
the connected keyboard is pressed, or transmitted after
[F12] is pressed, depending on auto transmission/
reception setting (see below).
• The transmission date, time, reception date and/or time
may be displayed in RX contents screen, depending on
setting.
For your information
When an external keypad is connected to [MIC]
connector on the front panel, one of RT1 to RT4
RTTY memory contents can be transmitted while
the RTTY decode screen is selected in the RTTY
mode. (pp. 18, 141)

D Automatic transmission/reception setting

q During the RTTY mode operation, push [DECODE]
(F-3) to select the RTTY decode screen.
w Push [TX MEM] (F-3) to select the RTTY memory
screen, then push [EDIT] (F-5) to select the RTTY
memory edit screen.
• RTTY memory contents of the Channel 1 (RT1) is
selected.
e Push [RT1..RT8] (F-6) several times to select the
desired RTTY memory.
r Push [AUTO TX] (F-5) several times to select the
desired operating option as follow.
• AUTO TX/RX : Automatically transmits the selected
• AUTO TX
• AUTO RX
• No indication : Push [F12] on the keyboard to
t Push [EXIT/SET] to exit the RTTY memory edit
condition.
53
memory contents, and returns to
receive after the transmission.
: Automatically transmits the
selected memory contents. To
return to receive, push [F12] on
the keyboard.
: Push [F12] on the keyboard to
transmit the selected memory
contents. Automatically returns to
receive after the transmission.
transmit the selected memory
contents, and push [F12] again to
return to receive.
/
DECODE TX MEM
F-3
F-1 F-4 F-1
– –
or
RT1 RT4 RT5
• RTTY memory screen
/
DECODE TX MEM
F-3
F-5
/
EDIT AUTO TX
NOTE: The transceiver always functions in the
"AUTO TX/RX" setting when no keyboard is
connected.
1–4/5–8
F-6
F-4
RT8
RT1..RT8
F-6
EXIT/SET
Auto TX/RX settings
