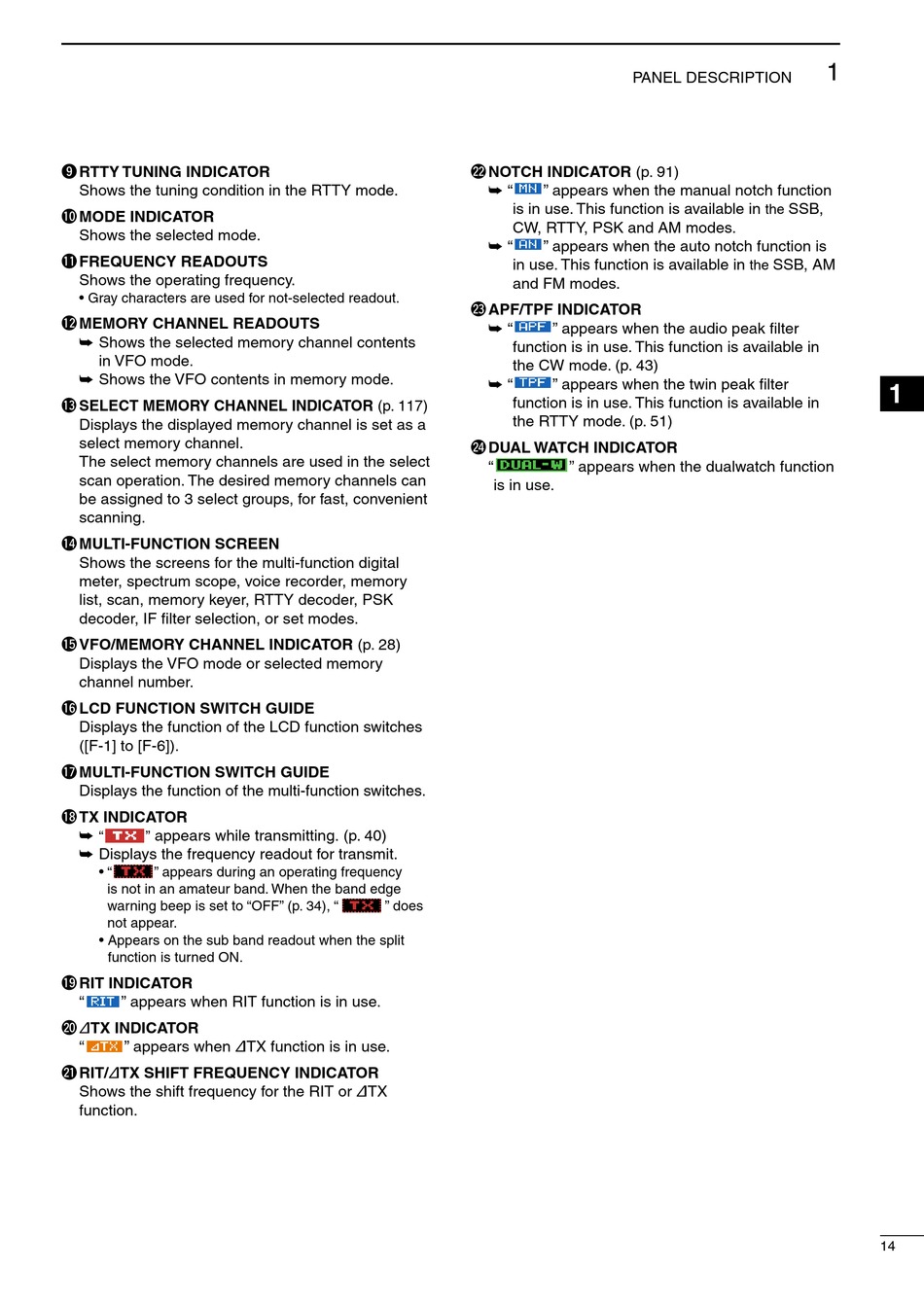

Icom IC-7600 Instruction Manual page 23

o RTTY TUNING INDICATOR
Shows the tuning condition in the RTTY mode.
!0 MODE INDICATOR
Shows the selected mode.
!1 FREQUENCY READOUTS
Shows the operating frequency.
• Gray characters are used for not-selected readout.
!2 MEMORY CHANNEL READOUTS
➥ Shows the selected memory channel contents
in VFO mode.
➥ Shows the VFO contents in memory mode.
!3 SELECT MEMORY CHANNEL INDICATOR (p. 117)
Displays the displayed memory channel is set as a
select memory channel.
The select memory channels are used in the select
scan operation. The desired memory channels can
be assigned to 3 select groups, for fast, convenient
scanning.
!4 MULTI-FUNCTION SCREEN
Shows the screens for the multi-function digital
meter, spectrum scope, voice recorder, memory
list, scan, memory keyer, RTTY decoder, PSK
decoder, IF filter selection, or set modes.
!5 VFO/MEMORY CHANNEL INDICATOR (p. 28)
Displays the VFO mode or selected memory
channel number.
!6 LCD FUNCTION SWITCH GUIDE
Displays the function of the LCD function switches
([F-1] to [F-6]).
!7 MULTI-FUNCTION SWITCH GUIDE
Displays the function of the multi-function switches.
!8 TX INDICATOR
appears while transmitting. (p. 40)
" "
➥
➥ Displays the frequency readout for transmit.
• " " appears during an operating frequency
is not in an amateur band. When the band edge
warning beep is set to "OFF" (p. 34), "
not appear.
• Appears on the sub band readout when the split
function is turned ON.
!9 RIT INDICATOR
" " appears when RIT function is in use.
@0 ∂TX INDICATOR
" " appears when ∂TX function is in use.
@1 RIT/∂TX SHIFT FREQUENCY INDICATOR
Shows the shift frequency for the RIT or ∂TX
function.
@2 NOTCH INDICATOR (p. 91)
➥ " " appears when the manual notch function
is in use. This function is available in
CW, RTTY, PSK and AM modes.
➥ " " appears when the auto notch function is
in use. This function is available in
and FM modes.
@3 APF/TPF INDICATOR
➥ " " appears when the audio peak filter
function is in use. This function is available in
the CW mode. (p. 43)
➥ " " appears when the twin peak filter
function is in use. This function is available in
the RTTY mode. (p. 51)
@4 DUAL WATCH INDICATOR
"
is in use.
" does
PANEL DESCRIPTION
" appears when the dualwatch function
