4
RECEIVE AND TRANSMIT

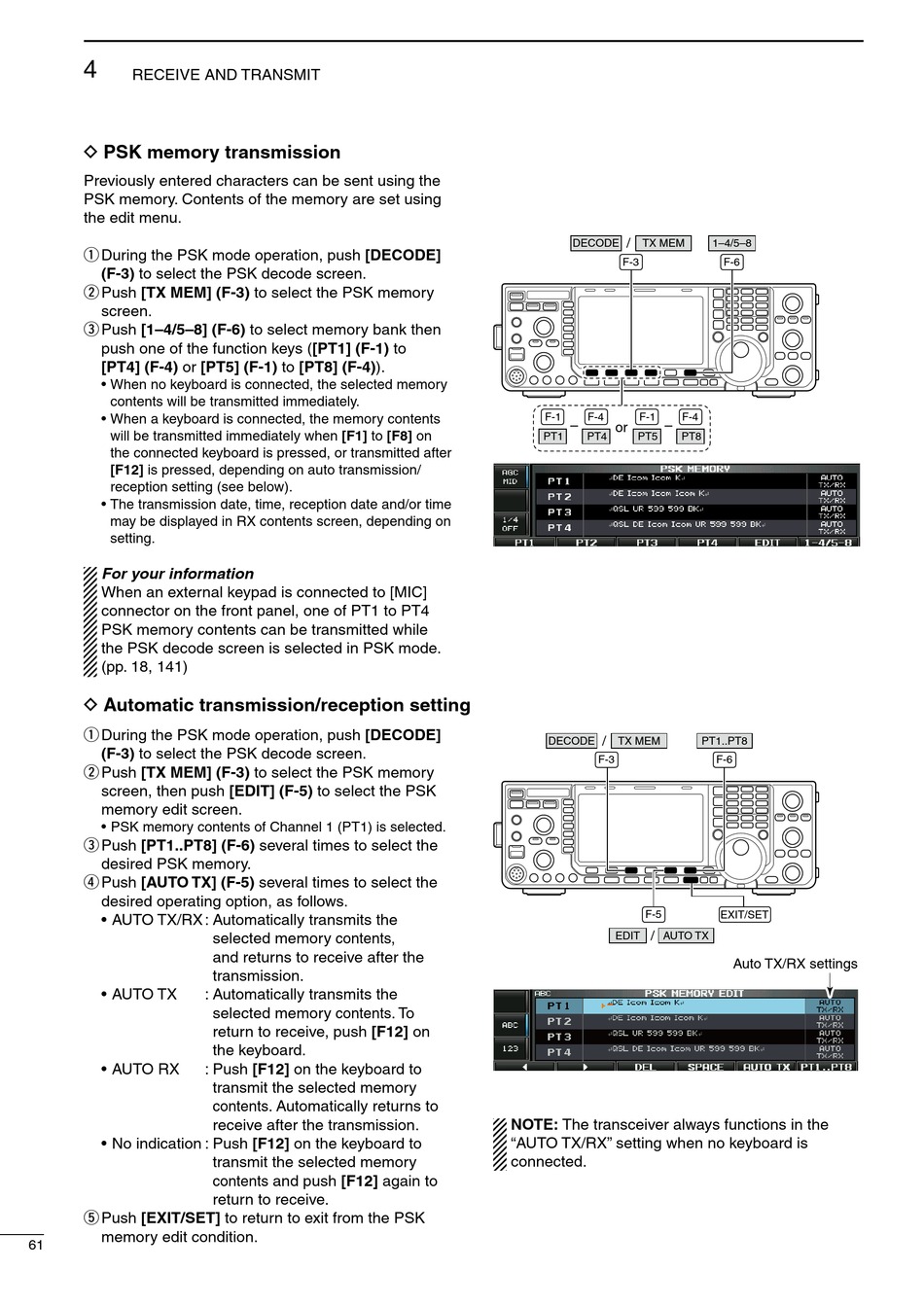

D PSK memory transmission
Previously entered characters can be sent using the
PSK memory. Contents of the memory are set using
the edit menu.
q During the PSK mode operation, push [DECODE]
(F-3) to select the PSK decode screen.
w Push [TX MEM] (F-3) to select the PSK memory
screen.
e Push [1–4/5–8] (F-6) to select memory bank then
push one of the function keys ([PT1] (F-1) to
[PT4] (F-4) or [PT5] (F-1) to [PT8] (F-4)).
• When no keyboard is connected, the selected memory
contents will be transmitted immediately.
• When a keyboard is connected, the memory contents
will be transmitted immediately when [F1] to [F8] on
the connected keyboard is pressed, or transmitted after
[F12] is pressed, depending on auto transmission/
reception setting (see below).
• The transmission date, time, reception date and/or time
may be displayed in RX contents screen, depending on
setting.
For your information
When an external keypad is connected to [MIC]
connector on the front panel, one of PT1 to PT4
PSK memory contents can be transmitted while
the PSK decode screen is selected in PSK mode.
(pp. 18, 141)

D Automatic transmission/reception setting

q During the PSK mode operation, push [DECODE]
(F-3) to select the PSK decode screen.
w Push [TX MEM] (F-3) to select the PSK memory
screen, then push [EDIT] (F-5) to select the PSK
memory edit screen.
• PSK memory contents of Channel 1 (PT1) is selected.
e Push [PT1..PT8] (F-6) several times to select the
desired PSK memory.
r Push [AUTO TX] (F-5) several times to select the
desired operating option, as follows.
• AUTO TX/RX : Automatically transmits the
• AUTO TX
• AUTO RX
• No indication : Push [F12] on the keyboard to
t Push [EXIT/SET] to return to exit from the PSK
memory edit condition.
61
selected memory contents,
and returns to receive after the
transmission.
: Automatically transmits the
selected memory contents. To
return to receive, push [F12] on
the keyboard.
: Push [F12] on the keyboard to
transmit the selected memory
contents. Automatically returns to
receive after the transmission.
transmit the selected memory
contents and push [F12] again to
return to receive.
/
DECODE TX MEM
F-3
F-1 F-4 F-1 F-4
– –
or
PT1 PT4 PT5 PT8
/
DECODE TX MEM
F-3
F-5
/
EDIT AUTO TX
NOTE: The transceiver always functions in the
"AUTO TX/RX" setting when no keyboard is
connected.
1–4/5–8
F-6
PT1..PT8
F-6
EXIT/SET
Auto TX/RX settings
