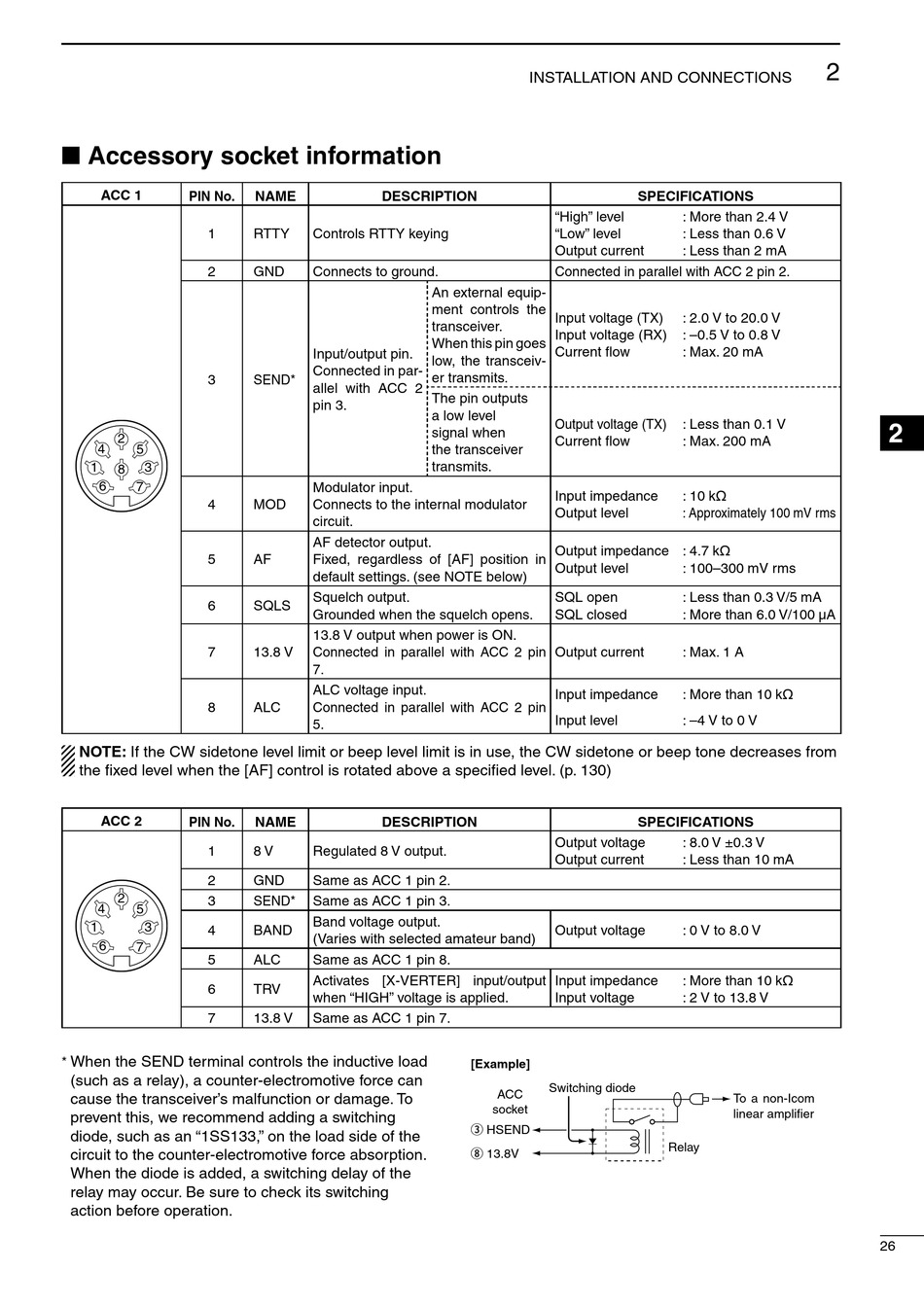

■ Accessory socket information

ACC 1
PIN No.
1
2
3
2
4
5
3
1
8
6
7
4
5
6
7
8
NOTE: If the CW sidetone level limit or beep level limit is in use, the CW sidetone or beep tone decreases from
the fixed level when the [AF] control is rotated above a specified level. (p. 130)
ACC 2
PIN No.
1
2
2
3
4
5
3
1
4
6
7
5
6
7
When the SEND terminal controls the inductive load
*
(such as a relay), a counter-electromotive force can
cause the transceiver's malfunction or damage. To
prevent this, we recommend adding a switching
diode, such as an "1SS133," on the load side of the
circuit to the counter-electromotive force absorption.
When the diode is added, a switching delay of the
relay may occur. Be sure to check its switching
action before operation.
NAME DESCRIPTION
RTTY Controls RTTY keying
GND Connects to ground.
Input/output pin.
Connected in par-
SEND*
allel with ACC 2
pin 3.
Modulator input.
MOD Connects to the internal modulator
circuit.
AF detector output.
AF Fixed, regardless of [AF] position in
default settings. (see NOTE below)
Squelch output.
SQLS
Grounded when the squelch opens.
13.8 V output when power is ON.
13.8 V Connected in parallel with ACC 2 pin
7.
ALC voltage input.
ALC Connected in parallel with ACC 2 pin
5.
NAME DESCRIPTION
8 V Regulated 8 V output.
GND Same as ACC 1 pin 2.
SEND* Same as ACC 1 pin 3.
Band voltage output.
BAND
(Varies with selected amateur band)
ALC Same as ACC 1 pin 8.
Activates [X-VERTER] input/output
TRV
when "HIGH" voltage is applied.
13.8 V Same as ACC 1 pin 7.

INSTALLATION AND CONNECTIONS

"High" level
"Low" level
Output current
Connected in parallel with ACC 2 pin 2.
An external equip-
ment controls the
Input voltage (TX)
transceiver.
Input voltage (RX)
When this pin goes
Current flow
low, the transceiv-
er transmits.
The pin outputs
a low level
Output voltage (TX)
signal when
Current flow
the transceiver
transmits.
Input impedance
Output level
Output impedance
Output level
SQL open
SQL closed
Output current
Input impedance
Input level
Output voltage
Output current
Output voltage
Input impedance
Input voltage
[Example]
Switching diode
ACC
socket
e HSEND
i 13.8V
SPECIFICATIONS
: More than 2.4 V
: Less than 0.6 V
: Less than 2 mA
: 2.0 V to 20.0 V
: –0.5 V to 0.8 V
: Max. 20 mA
: Less than 0.1 V
: Max. 200 mA
: 10 k˘
: Approximately 100 mV rms
: 4.7 k˘
: 100–300 mV rms
: Less than 0.3 V/5 mA
: More than 6.0 V/100 µA
: Max. 1 A
: More than 10 k˘
: –4 V to 0 V
SPECIFICATIONS
: 8.0 V ±0.3 V
: Less than 10 mA
: 0 V to 8.0 V
: More than 10 k˘
: 2 V to 13.8 V
To a non-Icom
linear amplifier
Relay
2
2
26
