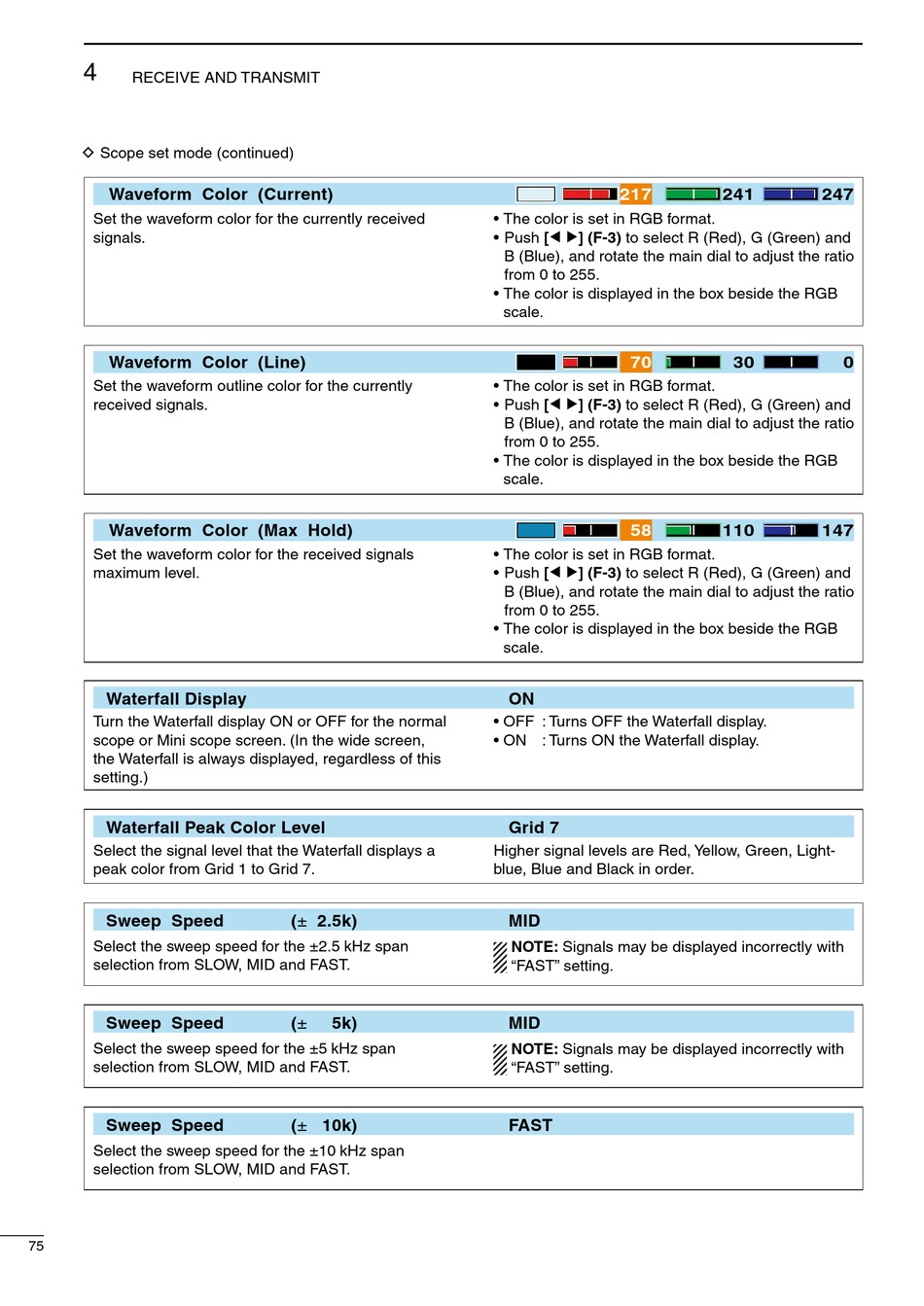

Icom IC-7600 Instruction Manual page 84

4
RECEIVE AND TRANSMIT
D
Scope set mode (continued)
Waveform Color (Current)
Set the waveform color for the currently received
signals.
Waveform Color (Line)
Set the waveform outline color for the currently
received signals.
Waveform Color (Max Hold)
Set the waveform color for the received signals
maximum level.
Waterfall Display
Turn the Waterfall display ON or OFF for the normal
scope or Mini scope screen. (In the wide screen,
the Waterfall is always displayed, regardless of this
setting.)
Waterfall Peak Color Level
Select the signal level that the Waterfall displays a
peak color from Grid 1 to Grid 7.
Sweep Speed
Select the sweep speed for the ±2.5 kHz span
selection from SLOW, MID and FAST.
Sweep Speed
Select the sweep speed for the ±5 kHz span
selection from SLOW, MID and FAST.
Sweep Speed
Select the sweep speed for the ±10 kHz span
selection from SLOW, MID and FAST.
75
(± 2.5k)
(± 5k)
(± 10k)
217
• The color is set in RGB format.
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and rotate the main dial to adjust the ratio
from 0 to 255.
• The color is displayed in the box beside the RGB
scale.
70
• The color is set in RGB format.
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and rotate the main dial to adjust the ratio
from 0 to 255.
• The color is displayed in the box beside the RGB
scale.
58
• The color is set in RGB format.
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and rotate the main dial to adjust the ratio
from 0 to 255.
• The color is displayed in the box beside the RGB
scale.
ON
• OFF : Turns OFF the Waterfall display.
• ON : Turns ON the Waterfall display.
Grid 7
Higher signal levels are Red, Yellow, Green, Light-
blue, Blue and Black in order.
MID
NOTE: Signals may be displayed incorrectly with
"FAST" setting.
MID
NOTE: Signals may be displayed incorrectly with
"FAST" setting.
FAST
241 247
30 0
110 147
