12

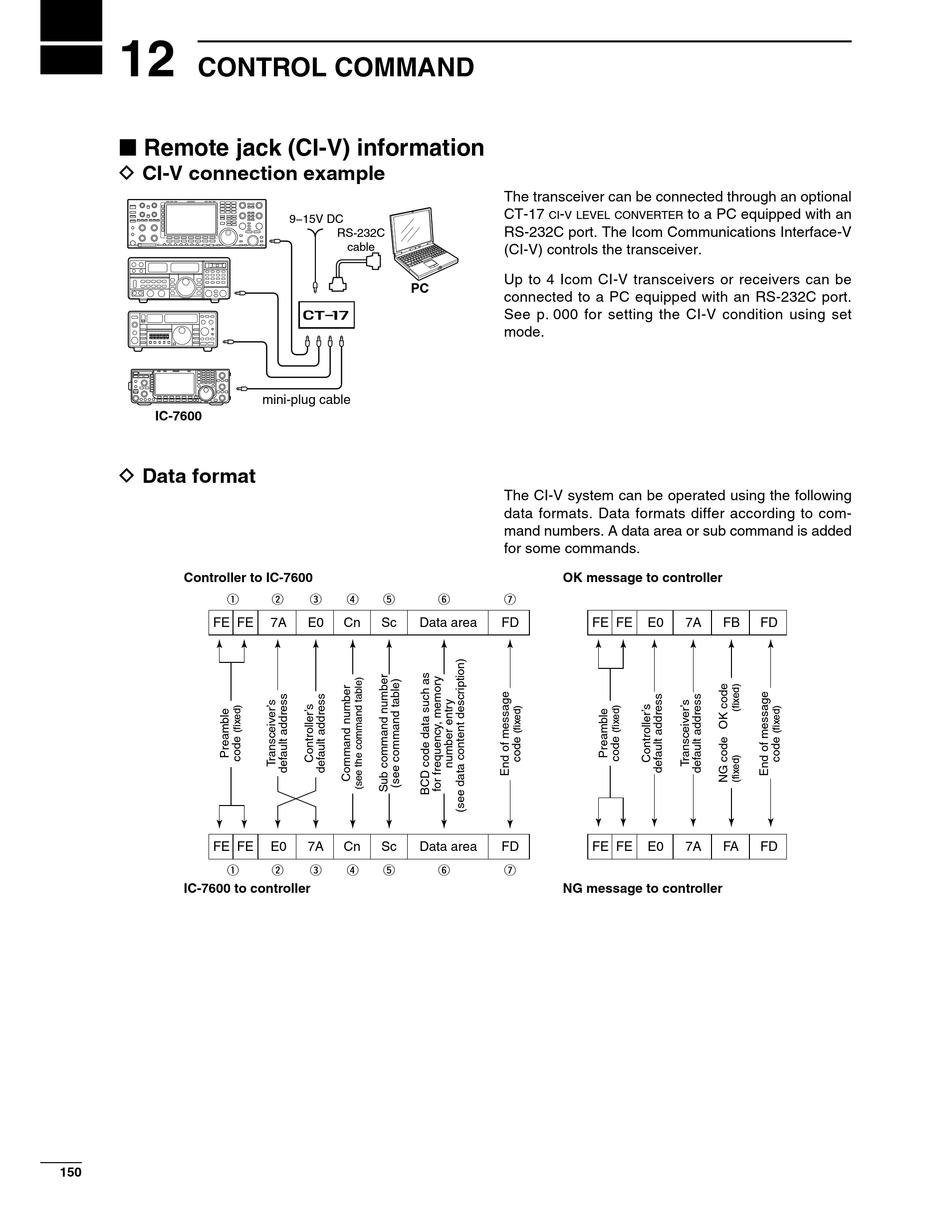

CONTROL COMMAND

Remote jack (CI-V) information
D CI-V connection example
IC-7600

D Data format

Controller to IC-7600
q
FE FE
FE FE
q
IC-7600 to controller
150
9−15V DC
RS-232C
cable
PC
ct-17
mini-plug cable
w e r t y
7A E0 Cn Sc Data area
E0 7A Cn Sc Data area
w e r t y
The transceiver can be connected through an optional
CT-17 -
CI V LEVEL CONVERTER
RS-232C port. The Icom Communications Interface-V
(CI-V) controls the transceiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to a PC equipped with an RS-232C port.
See p. 000 for setting the CI-V condition using set
mode.
The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area or sub command is added
for some commands.
OK me age to controller
u
FD FE FE E0
FD FE FE E0
u
NG me age to controller
to a PC equipped with an
7A FB FD
7A FA FD
