Icom IC-7600 Instruction Manual page 12

1

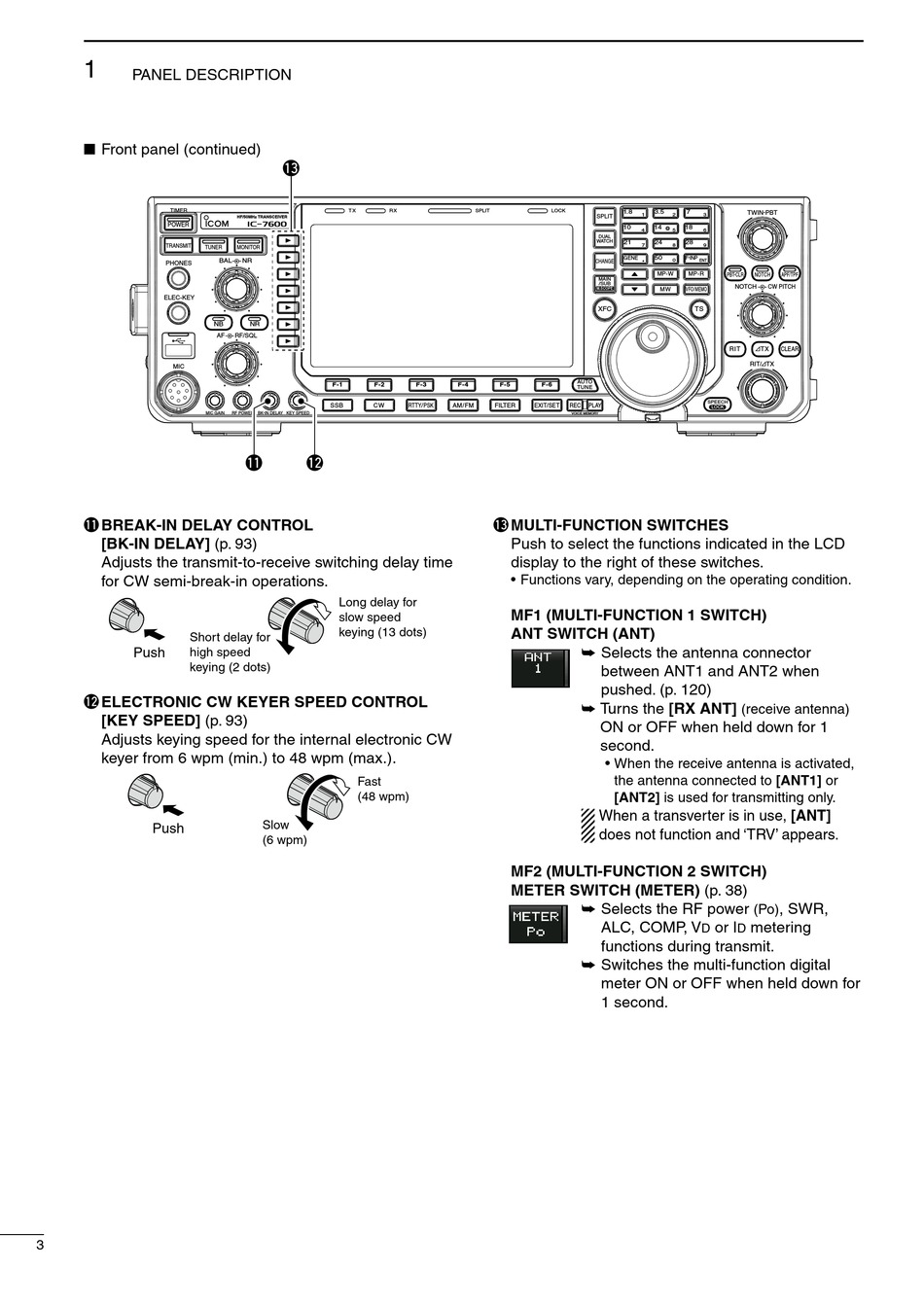

PANEL DESCRIPTION
Front panel (continued)
■
TIMER
POWER
TRANSMIT
TUNER
PHONES
ELEC-KEY
MIC
MIC GAIN
!1 BREAK-IN DELAY CONTROL
[BK-IN DELAY] (p. 93)
Adjusts the transmit-to-receive switching delay time
for CW semi-break-in operations.
Short delay for
Push
high speed
keying (2 dots)
!2 ELECTRONIC CW KEYER SPEED CONTROL
[KEY SPEED] (p. 93)
Adjusts keying speed for the internal electronic CW
keyer from 6 wpm (min.) to 48 wpm (max.).
Push
3
!3
T X
HF/50MHz TRANSCEIVER
MONITOR
BAL NR
NB NR
AF RF/SQL
F- 1 F- 2
SSB CW
RF POWER BK-IN DELAY KEY SPEED
!1 !2
Long delay for
slow speed
keying (13 dots)
Fast
(48 wpm)
Slow
(6 wpm)
RX SPLIT LOCK
F- 3 F- 4 F- 5 F- 6
RTTY/PSK AM/FM FILTER EXIT/SET
!3 MULTI-FUNCTION SWITCHES
Push to select the functions indicated in the LCD
display to the right of these switches.
• Functions vary, depending on the operating condition.
MF1 (MULTI-FUNCTION 1 SWITCH)
ANT SWITCH (ANT)
MF2 (MULTI-FUNCTION 2 SWITCH)
METER SWITCH (METER) (p. 38)
1.8 3.5 7
1 2 3
SPLIT
10 14 18
4 5 6
DUAL
WATCH 21 24 28
7 8 9
GENE 50 F-INP
0
CHANGE ENT
MP-W MP-R PBT - CLR
MAIN
/SUB
NOTCH
M.SCOPE MW VFO/MEMO
XFC TS
RIT
AUTO
TUNE
SPEECH
REC PLAY
LOCK
VOICE MEMORY
➥ Selects the antenna connector
between ANT1 and ANT2 when
pushed. (p. 120)
➥ Turns the [RX ANT]
(receive antenna)
ON or OFF when held down for 1
second.
• When the receive antenna is activated,
the antenna connected to [ANT1] or
[ANT2] is used for transmitting only.
When a transverter is in use, [ANT]
does not function and 'TRV' appears.
➥ Selects the RF power
ALC, COMP, V or I
d d
functions during transmit.
➥ Switches the multi-function digital
meter ON or OFF when held down for
1 second.
TWIN-PBT
NOTCH APF/TPF
CW PITCH
TX CLEAR
RIT/ TX
, SWR,
(Po)
metering
