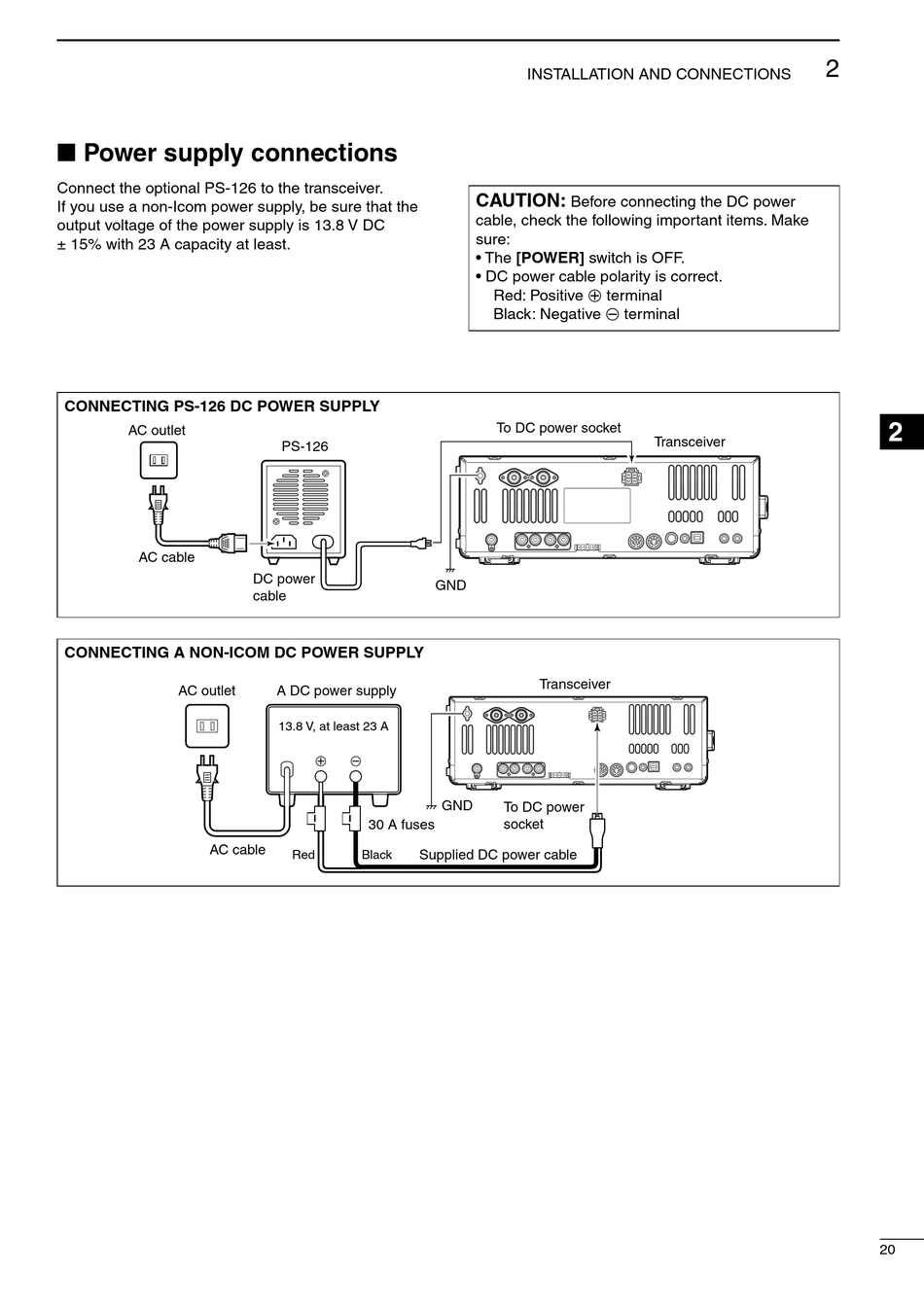

■ Power supply connections

Connect the optional PS-126 to the transceiver.
If you use a non-Icom power supply, be sure that the
output voltage of the power supply is 13.8 V DC
± 15% with 23 A capacity at least.
CONNECTING PS-126 DC POWER SUPPLY
AC outlet
AC cable
CONNECTING A NON-ICOM DC POWER SUPPLY
AC outlet
AC cable
PS-126
DC power
cable
A DC power supply
13.8 V, at least 23 A
+ _
30 A fuses
Supplied DC power cable
Red Black
INSTALLATION AND CONNECTIONS
CAUTION:
Before connecting the DC power
cable, check the following important items. Make
sure:
• The [POWER] switch is OFF.
• DC power cable polarity is correct.
Red: Positive + terminal
Black : Negative _ terminal
To DC power socket
GND
Transceiver
GND
To DC power
socket
2
Transceiver
2
20
