4
RECEIVE AND TRANSMIT

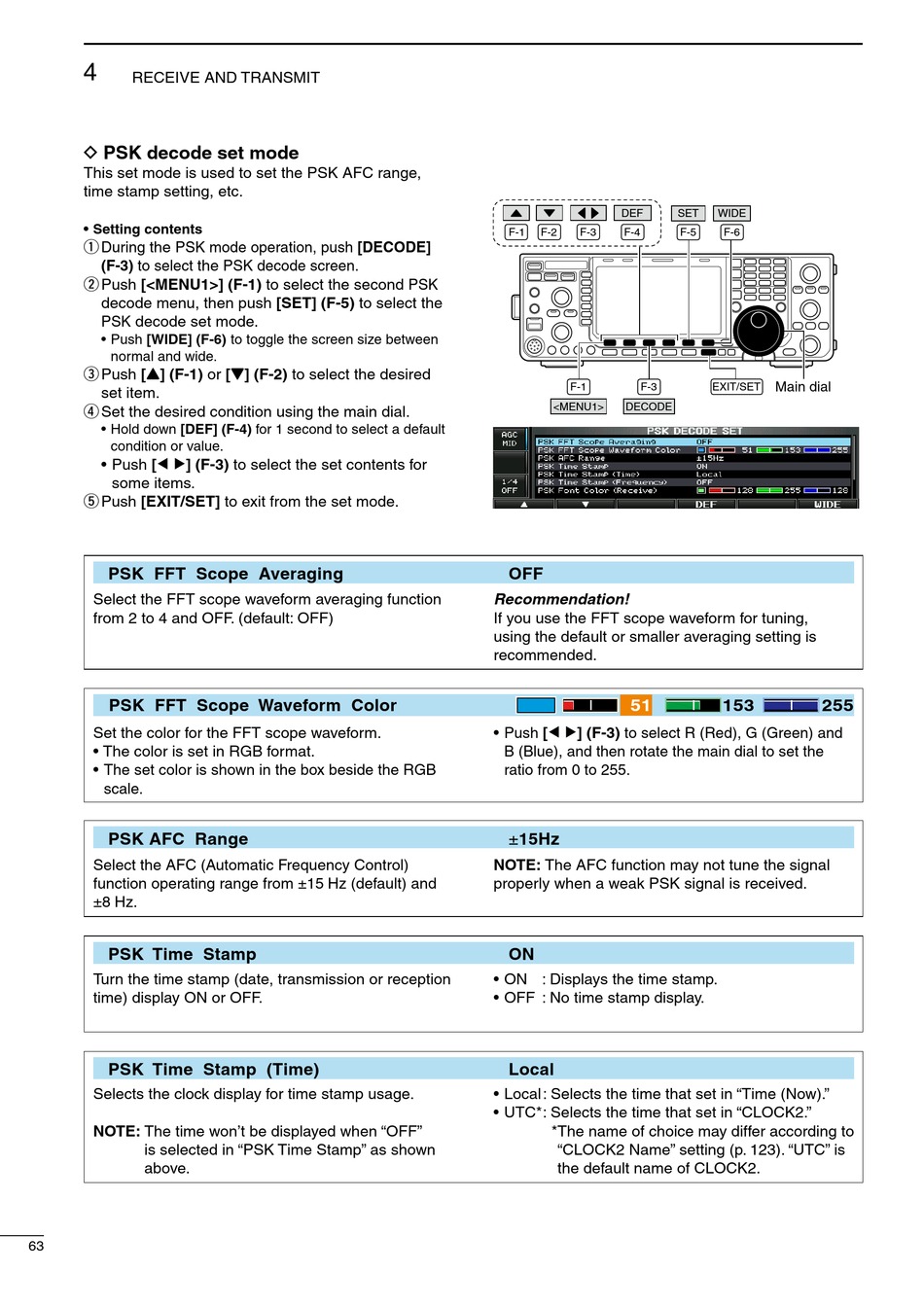

D PSK decode set mode
This set mode is used to set the PSK AFC range,
time stamp setting, etc.
• Setting contents
q During the PSK mode operation, push [DECODE]
(F-3) to select the PSK decode screen.
w Push [<MENU1>] (F-1) to select the second PSK
decode menu, then push [SET] (F-5) to select the
PSK decode set mode.
• Push [WIDE] (F-6) to toggle the screen size between
normal and wide.
e Push [Y] (F-1) or [Z] (F-2) to select the desired
set item.
r Set the desired condition using the main dial.
• Hold down [DEF] (F-4) for 1 second to select a default
condition or value.
• Push [Ω ≈] (F-3) to select the set contents for
some items.
t Push [EXIT/SET] to exit from the set mode.
PSK FFT Scope Averaging
Select the FFT scope waveform averaging function
from 2 to 4 and OFF. (default: OFF)
PSK FFT Scope Waveform Color
Set the color for the FFT scope waveform.
• The color is set in RGB format.
• The set color is shown in the box beside the RGB
scale.
PSK AFC Range
Select the AFC (Automatic Frequency Control)
function operating range from ±15 Hz (default) and
±8 Hz.
PSK Time Stamp
Turn the time stamp (date, transmission or reception
time) display ON or OFF.
PSK Time Stamp (Time)
Selects the clock display for time stamp usage.
NOTE: The time won't be displayed when "OFF"
is selected in "PSK Time Stamp" as shown
above.
63
DEF
F-1 F-2 F-3 F-4
F-1 F-3
<MENU1> DECODE
OFF
Recommendation!
If you use the FFT scope waveform for tuning,
using the default or smaller averaging setting is
recommended.
51
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and then rotate the main dial to set the
ratio from 0 to 255.
±15Hz
NOTE: The AFC function may not tune the signal
properly when a weak PSK signal is received.
ON
• ON : Displays the time stamp.
• OFF : No time stamp display.
Local
• Local : Selects the time that set in "Time (Now)."
• UTC*: Selects the time that set in "CLOCK2."
* The name of choice may differ according to
"CLOCK2 Name" setting (p. 123). "UTC" is
the default name of CLOCK2.
SET WIDE
F-5 F-6
Main dial
EXIT/SET
153 255
