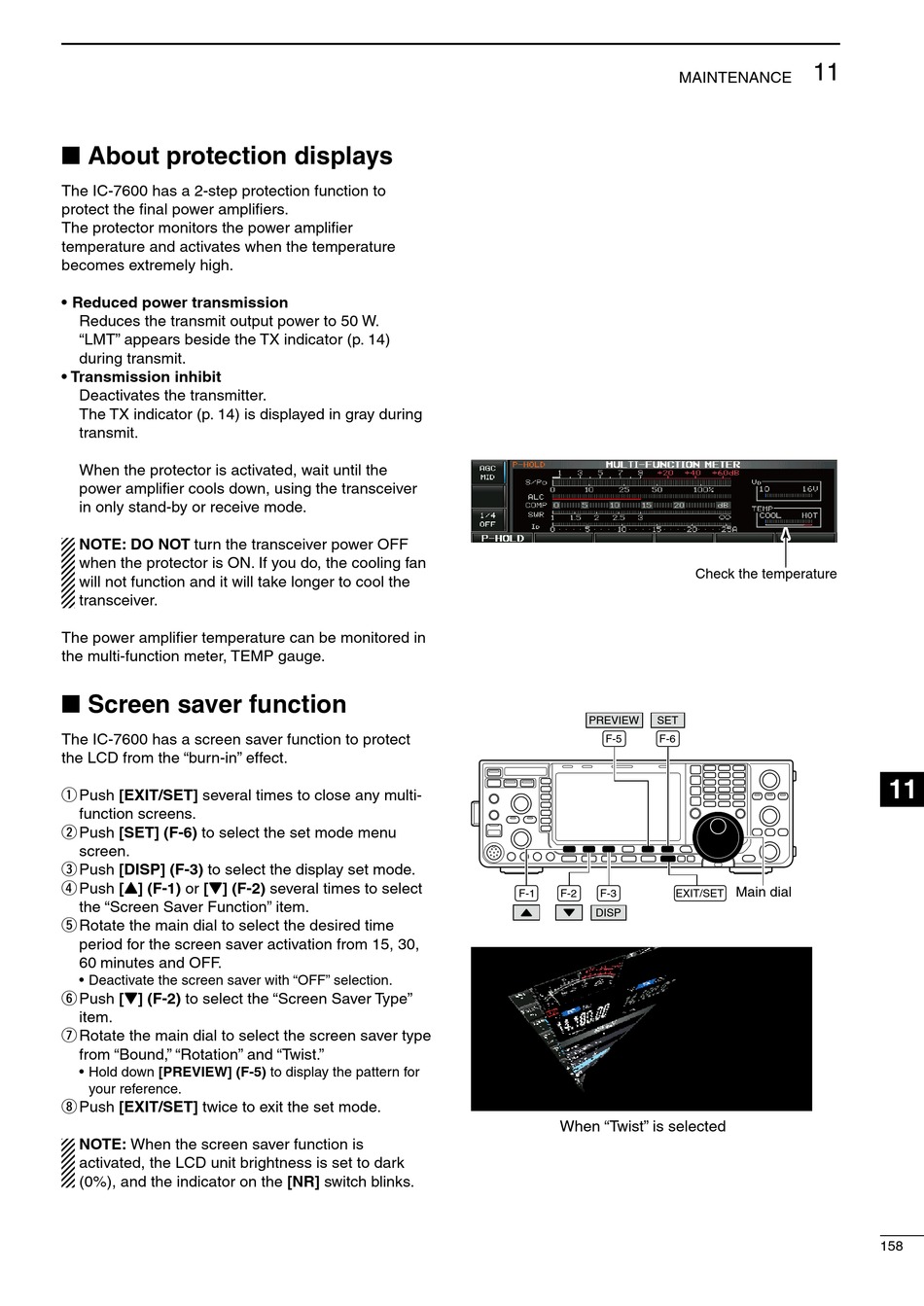

■ About protection displays

The IC-7600 has a 2-step protection function to
protect the final power amplifiers.
The protector monitors the power amplifier
temperature and activates when the temperature
becomes extremely high.
• Reduced power transmission
Reduces the transmit output power to 50 W.
"LMT" appears beside the TX indicator (p. 14)
during transmit.
• Transmission inhibit
Deactivates the transmitter.
The TX indicator (p. 14) is displayed in gray during
transmit.
When the protector is activated, wait until the
power amplifier cools down, using the transceiver
in only stand-by or receive mode.
NOTE: DO NOT turn the transceiver power OFF
when the protector is ON. If you do, the cooling fan
will not function and it will take longer to cool the
transceiver.
The power amplifier temperature can be monitored in
the multi-function meter, TEMP gauge.

■ Screen saver function

The IC-7600 has a screen saver function to protect
the LCD from the "burn-in" effect.
q Push [EXIT/SET] several times to close any multi-
function screens.
w Push [SET] (F-6) to select the set mode menu
screen.
e Push [DISP] (F-3) to select the display set mode.
r Push [Y] (F-1) or [Z] (F-2) several times to select
the "Screen Saver Function" item.
t Rotate the main dial to select the desired time
period for the screen saver activation from 15, 30,
60 minutes and OFF.
• Deactivate the screen saver with "OFF" selection.
y Push [Z] (F-2) to select the "Screen Saver Type"
item.
u Rotate the main dial to select the screen saver type
from "Bound," "Rotation" and "Twist."
• Hold down [PREVIEW] (F-5) to display the pattern for
your reference.
i Push [EXIT/SET] twice to exit the set mode.
NOTE: When the screen saver function is
activated, the LCD unit brightness is set to dark
(0%), and the indicator on the [NR] switch blinks.
MAINTENANCE
PREVIEW SET
F-5 F-6
F-1 F-2 F-3 EXIT/SET
DISP
When "Twist" is selected
11
Check the temperature
Main dial
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
158
