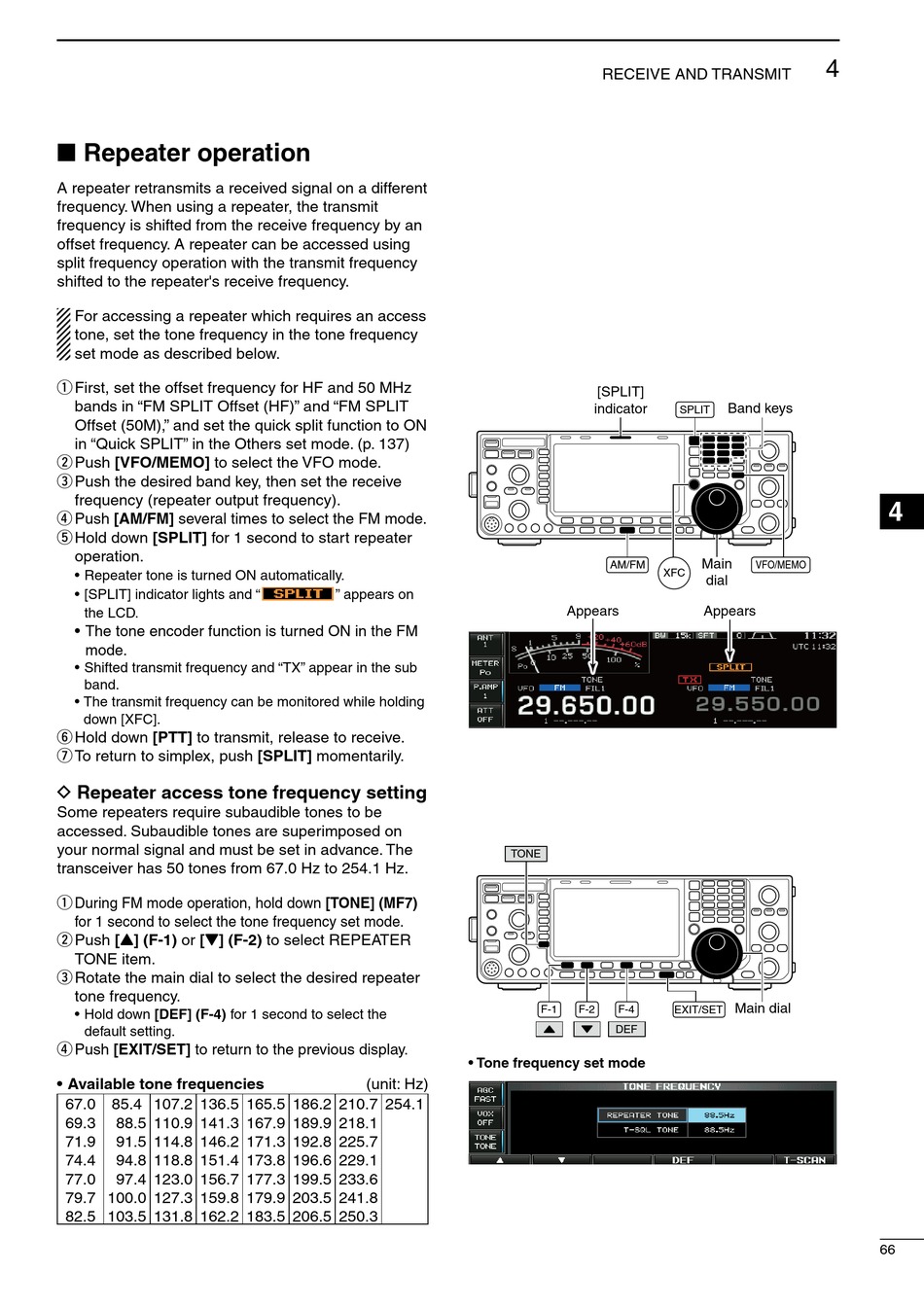

■ Repeater operation

A repeater retransmits a received signal on a different
frequency. When using a repeater, the transmit
frequency is shifted from the receive frequency by an
offset frequency. A repeater can be accessed using
split frequency operation with the transmit frequency
shifted to the repeater's receive frequency.
For accessing a repeater which requires an access
tone, set the tone frequency in the tone frequency
set mode as described below.
First, set the offset frequency for HF and 50 MHz
q
bands in "FM SPLIT Offset (HF)" and "FM SPLIT
Offset (50M)," and set the quick split function to ON
in "Quick SPLIT" in the Others set mode. (p. 137)
Push [VFO/MEMO] to select the VFO mode.
w
Push the desired band key, then set the receive
e
frequency (repeater output frequency).
[AM/FM] several times to select the FM mode.
Push
r
[SPLIT] for 1 second to start repeater
Hold down
t
operation.
• Repeater tone is turned ON automatically.
• [SPLIT] indicator lights and "
the LCD.
• The tone encoder function is turned ON in the FM
mode.
• Shifted transmit frequency and "TX" appear in the sub
band.
• The transmit frequency can be monitored while holding
down [XFC].
Hold down [PTT] to transmit, release to receive.
y
To return to simplex, push
u

D Repeater access tone frequency setting

Some repeaters require subaudible tones to be
accessed. Subaudible tones are superimposed on
your normal signal and must be set in advance. The
transceiver has 50 tones from 67.0 Hz to 254.1 Hz.
q During FM mode operation, hold down [TONE] (MF7)
for 1 second to select the tone frequency set mode.
w Push [Y] (F-1) or [Z] (F-2) to select REPEATER
TONE item.
e Rotate the main dial to select the desired repeater
tone frequency.
• Hold down [DEF] (F-4) for 1 second to select the
default setting.
r Push [EXIT/SET] to return to the previous display.
• Available tone frequencies
67.0 85.4 107.2 136.5
69.3 088.5 110.9 141.3
71.9 091.5 114.8 146.2
74.4 094.8 118.8 151.4
77.0 097.4 123.0 156.7
79.7 100.0 127.3 159.8
82.5 103.5 131.8 162.2
" appears on
[SPLIT] momentarily.
(unit: Hz)
165.5 186.2 210.7 254.1
167.9 189.9 218.1
171.3 192.8 225.7
173.8 196.6 229.1
177.3 199.5 233.6
179.9 203.5 241.8
183.5 206.5 250.3
