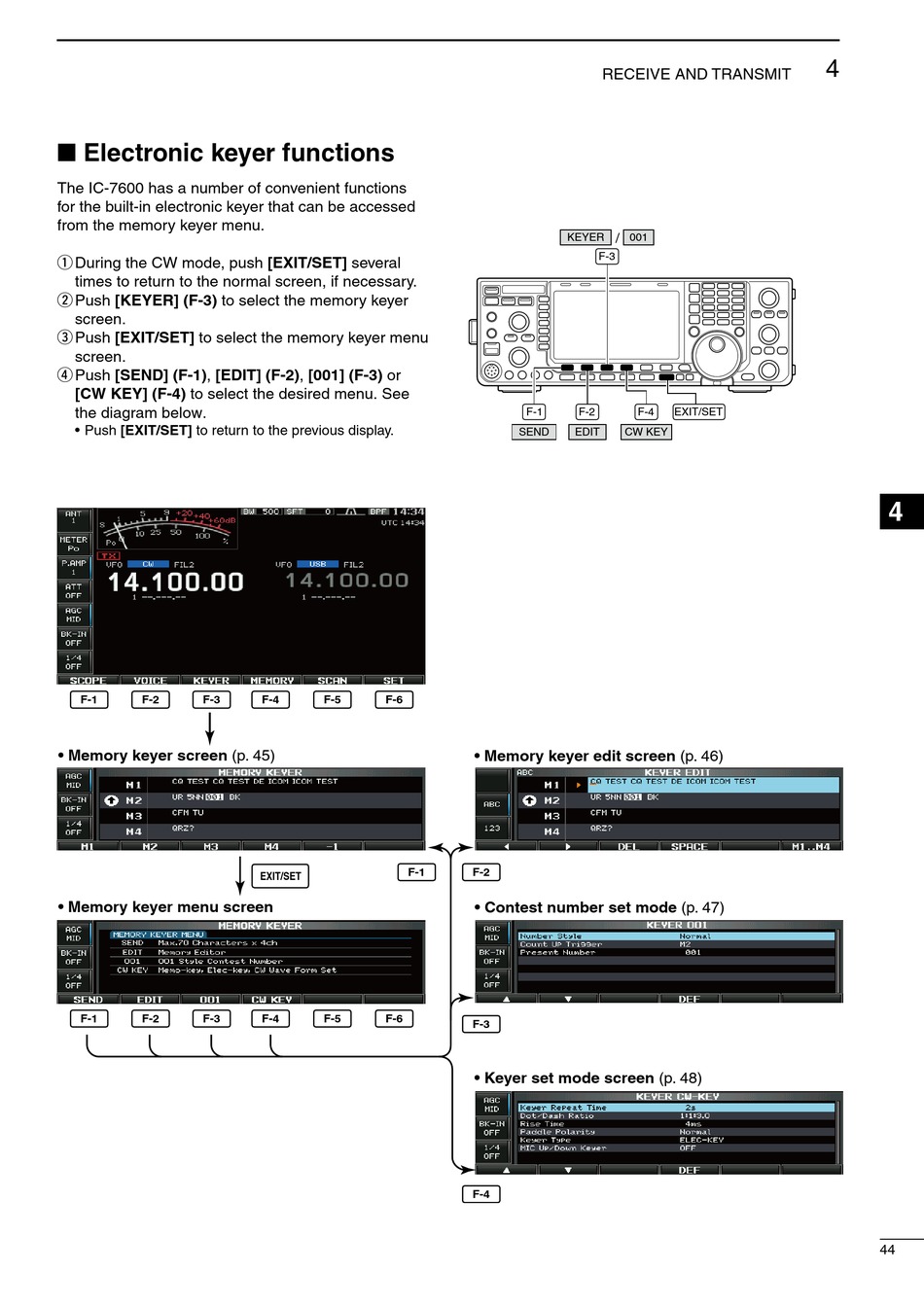

■ Electronic keyer functions

The IC-7600 has a number of convenient functions
for the built-in electronic keyer that can be accessed
from the memory keyer menu.
q During the CW mode, push [EXIT/SET] several
times to return to the normal screen, if necessary.
w Push [KEYER] (F-3) to select the memory keyer
screen.
e Push [EXIT/SET] to select the memory keyer menu
screen.
r Push [SEND] (F-1), [EDIT] (F-2), [001] (F-3) or
[CW KEY] (F-4) to select the desired menu. See
the diagram below.
• Push [EXIT/SET] to return to the previous display.
F-1 F-2 F-3
• Memory keyer screen (p. 45)
• Memory keyer menu screen
F-1 F-2 F-3
F-4 F-5 F-6
F-1
EXIT/SET
F-4 F-5 F-6
RECEIVE AND TRANSMIT
/
KEYER 001
F-3
F-1 F-2 F-4
SEND EDIT CW KEY
• Memory keyer edit screen (p. 46)
F-2
• Contest number set mode (p. 47)
F-3
• Keyer set mode screen (p. 48)
F-4
4
EXIT/SET
4
44
