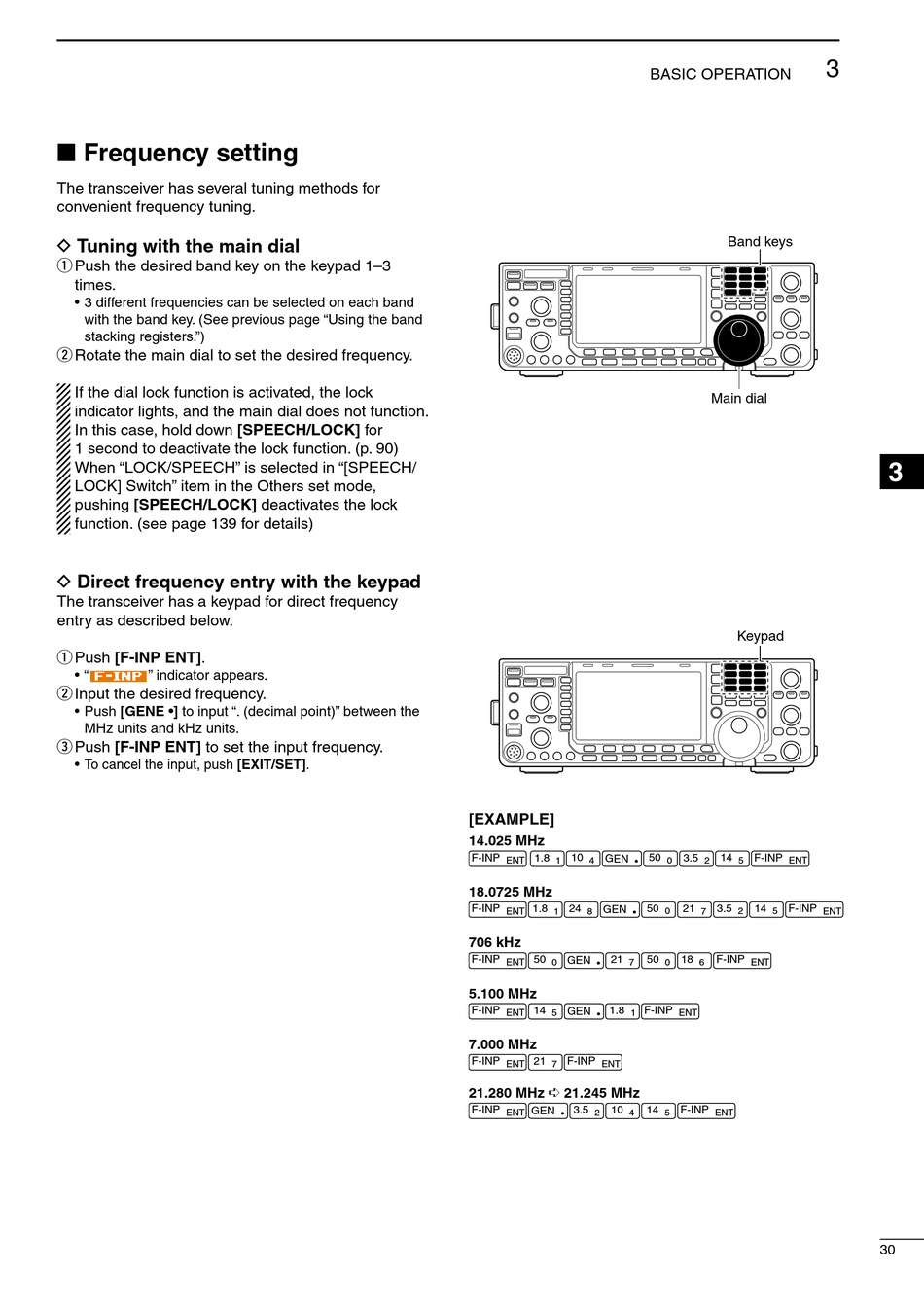

■ Frequency setting

The transceiver has several tuning methods for
convenient frequency tuning.
D Tuning with the main dial
Push the desired band key on the keypad 1–3
q
times.
• 3 different frequencies can be selected on each band
with the band key. (See previous page "Using the band
stacking registers.")
Rotate the main dial to set the desired frequency.
w
If the dial lock function is activated, the lock
indicator lights, and the main dial does not function.
In this case, hold down [SPEECH/LOCK] for
1 second to deactivate the lock function. (p. 90)
When "LOCK/SPEECH" is selected in "[SPEECH/
LOCK] Switch" item in the Others set mode,
pushing [SPEECH/LOCK] deactivates the lock
function. (see page 139 for details)
D Direct frequency entry with the keypad
The transceiver has a keypad for direct frequency
entry as described below.
[F-INP ENT].
Push
q
• " " indicator appears.
Input the desired frequency.
w
• Push [GENE •] to input ". (decimal point)" between the
MHz units and kHz units.
[F-INP ENT] to set the input frequency.
Push
e
• To cancel the input, push [EXIT/SET].
[EXAMPLE]
14.025 MHz
F-INP 1.8 10
ENT 1 4
18.0725 MHz
F-INP 1.8 24
ENT 1 8
706 kHz
F-INP 50 21
ENT 0 7
5.100 MHz
F-INP 14 1.8 F-INP
ENT 5 1
7.000 MHz
F-INP 21 F-INP
ENT 7 ENT
21.280 MHz � 21.245 MHz
F-INP 3.5 10
ENT 2 4
BASIC OPERATION
Band keys
Main dial
Keypad
50 3.5 14 F-INP
0 2 5 ENT
50 21 3.5 14 F-INP
0 7 2 5
50 18 F-INP
0 6 ENT
ENT
14 F-INP
5 ENT
