13

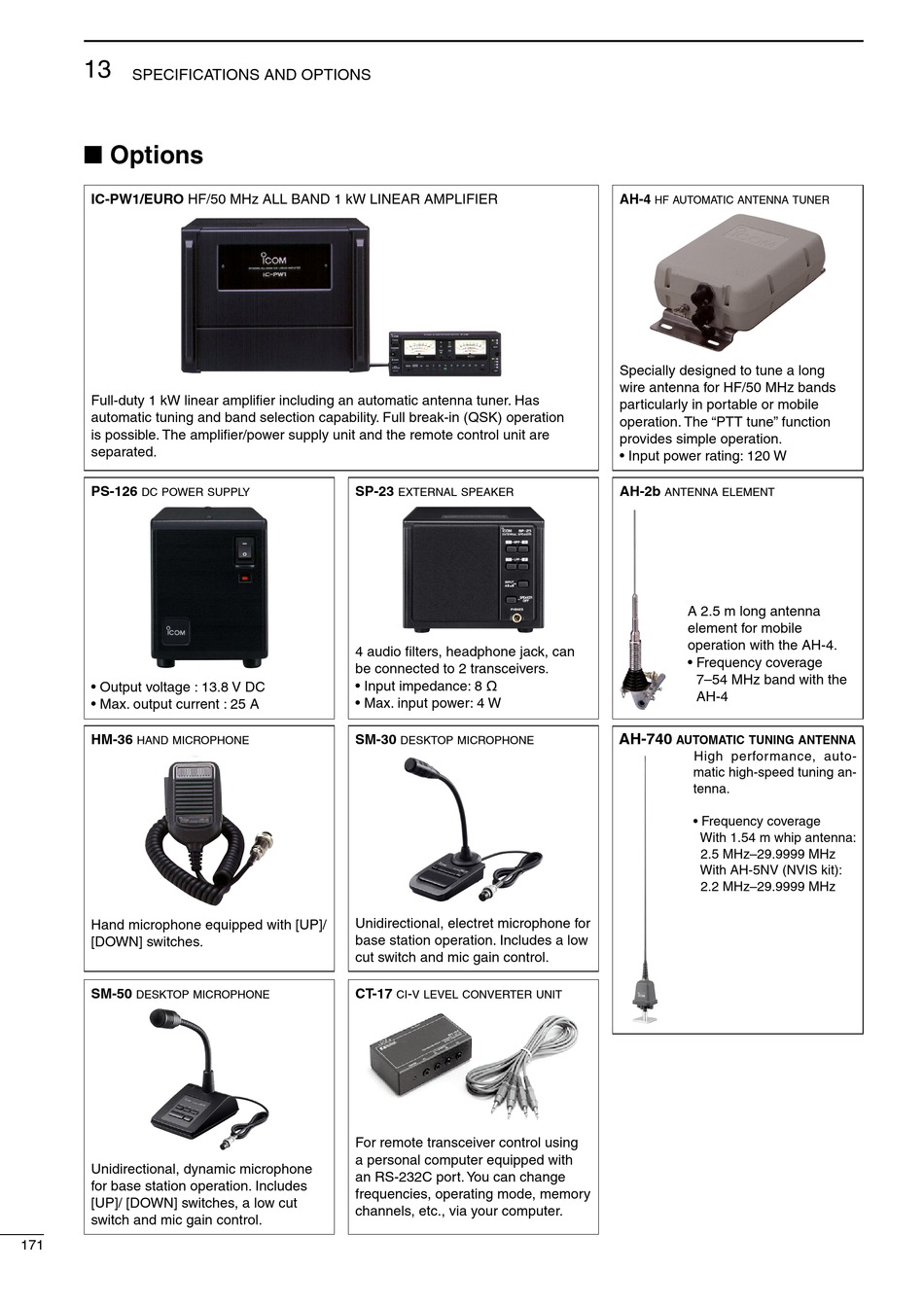

SPECIFICATIONS AND OPTIONS

■ Options

IC-PW1/EURO HF/50 MHz ALL BAND 1 kW LINEAR AMPLIFIER
Full-duty 1 kW linear amplifier including an automatic antenna tuner. Has
automatic tuning and band selection capability. Full break-in (QSK) operation
is possible. The amplifier/power supply unit and the remote control unit are
separated.
PS-126
dc power supply
• Output voltage : 13.8 V DC
• Max. output current : 25 A
HM-36
hand microphone
Hand microphone equipped with [UP]/
[DOWN] switches.
SM-50
desktop microphone
Unidirectional, dynamic microphone
for base station operation. Includes
[UP]/ [DOWN] switches, a low cut
switch and mic gain control.
171
SP-23
external speaker
4 audio filters, headphone jack, can
be connected to 2 transceivers.
• Input impedance: 8 ø
• Max. input power: 4 W
SM-30
desktop microphone
Unidirectional, electret microphone for
base station operation. Includes a low
cut switch and mic gain control.
CT-17
-
ci v level converter unit
For remote transceiver control using
a personal computer equipped with
an RS-232C port. You can change
frequencies, operating mode, memory
channels, etc., via your computer.
AH-4
hf automatic antenna tuner
Specially designed to tune a long
wire antenna for HF/50 MHz bands
particularly in portable or mobile
operation. The "PTT tune" function
provides simple operation.
• Input power rating: 120 W
AH-2b
antenna element
A 2.5 m long antenna
element for mobile
operation with the AH-4.
• Frequency coverage
7–54 MHz band with the
AH-4
AH-740
automatic tuning antenna
High performance, auto-
matic high-speed tuning an-
tenna.
• Frequency coverage
With 1.54 m whip antenna:
2.5 MHz–29.9999 MHz
With AH-5NV (NVIS kit):
2.2 MHz–29.9999 MHz
