■ Operating mode selection

SSB (USB/LSB), SSB data (USB data/LSB data),
CW, CW reverse (CW-R), RTTY, RTTY reverse
(RTTY-R), PSK, PSK reverse (PSK-R), AM, AM data,
FM and FM data modes are available in the IC-7600.
Push the desired mode switch to select a mode of
operation.

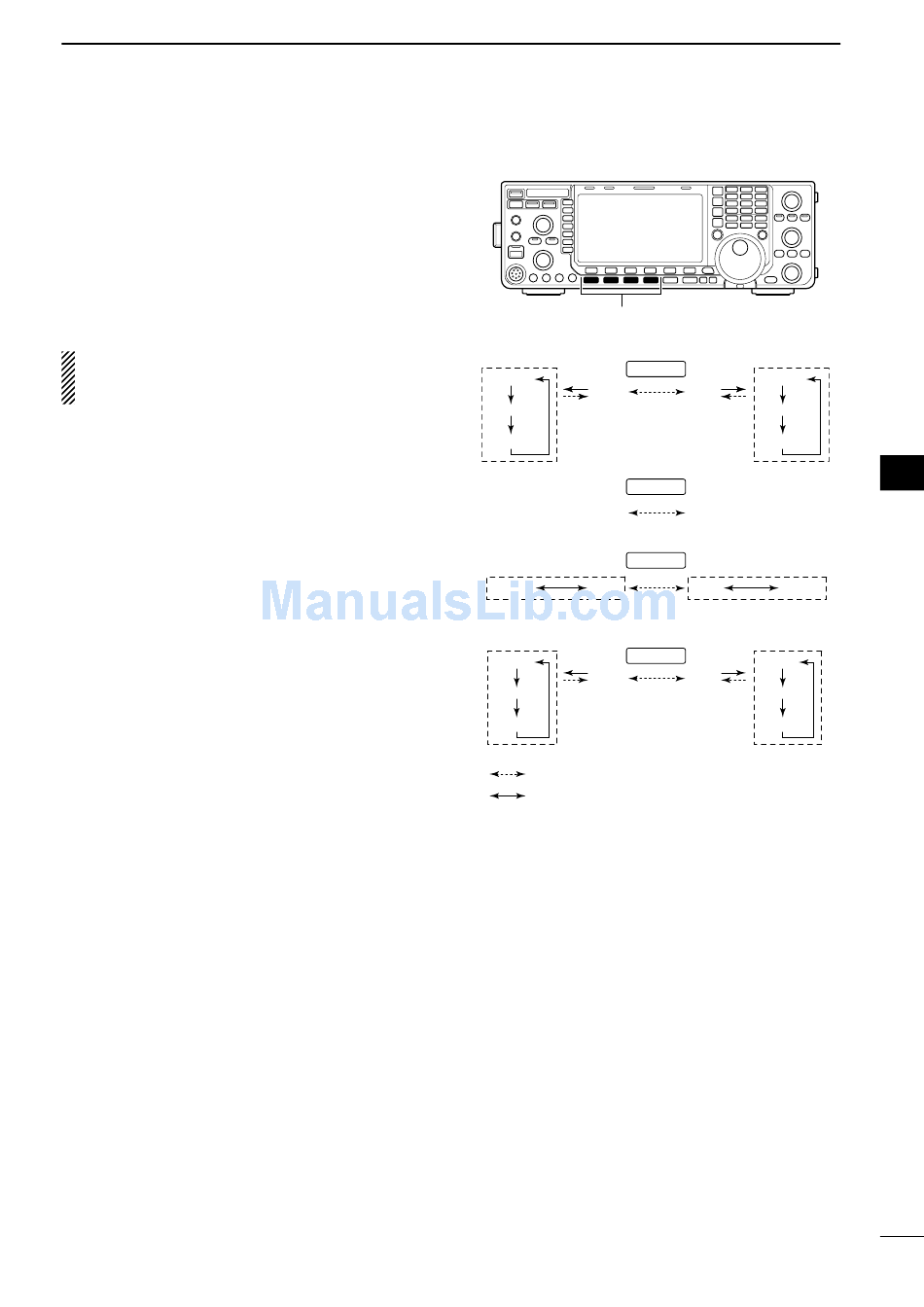

See the diagram as at right for the order of selection.
Microphone signals are muted when data mode is
selected depending on the set mode settings
(p. 132).
• Selecting SSB mode
➥ Push [SSB] to select USB or LSB.
• USB is selected first when above 10 MHz, LSB is
selected first when below 10 MHz operation.
• After USB or LSB is selected, push [SSB] to toggle
between USB and LSB.
• After USB or LSB is selected, hold down [SSB]
for 1 second to select the USB or LSB data mode,
respectively.
• After the USB or LSB data mode is selected, hold
down [SSB] for 1 second to select data 1, 2 and 3, in
sequence.
• In the USB or LSB data mode, push [SSB] to return to
the USB or LSB mode, respectively.
• Selecting CW mode
➥ Push [CW] to select CW.
• After CW is selected, push [CW] to toggle between the
CW and CW reverse mode.
• Selecting RTTY/PSK mode
➥ Push [RTTY/PSK] to select RTTY or PSK.
• After RTTY or PSK is selected, push [RTTY/PSK] to
toggle between RTTY and PSK.
• After RTTY or PSK is selected, hold down
[RTTY/PSK] for 1 second to toggle between RTTY
and RTTY reverse, or, PSK and PSK reverse mode,
respectively.
• Selecting AM/FM mode
➥ Push [AM/FM] to select AM or FM.
• After AM or FM is selected, push [AM/FM] to toggle
between AM and FM.
• After AM or FM is selected, hold down [AM/FM] for 1
second to select AM or FM data mode, respectively.
• After AM or FM data mode is selected, hold down
[AM/FM] for 1 second to select data 1, 2 and 3, in
sequence.
• In AM or FM data mode, push [AM/FM] to return to the
AM or FM mode, respectively.
BASIC OPERATION
Mode switches
SSB
USB-D1
USB
USB-D2
USB-D3
CW
CW
RTTY/PSK
RTTY-R RTTY
AM/FM
AM-D1
AM
AM-D2
AM-D3
: Push mode switch momentary.
: Push and hold mode switch for 1 sec.
3
LSB-D1
LSB
LSB-D2
LSB-D3
CW-R
PSK PSK-R
FM-D1
FM
FM-D2
FM-D3
