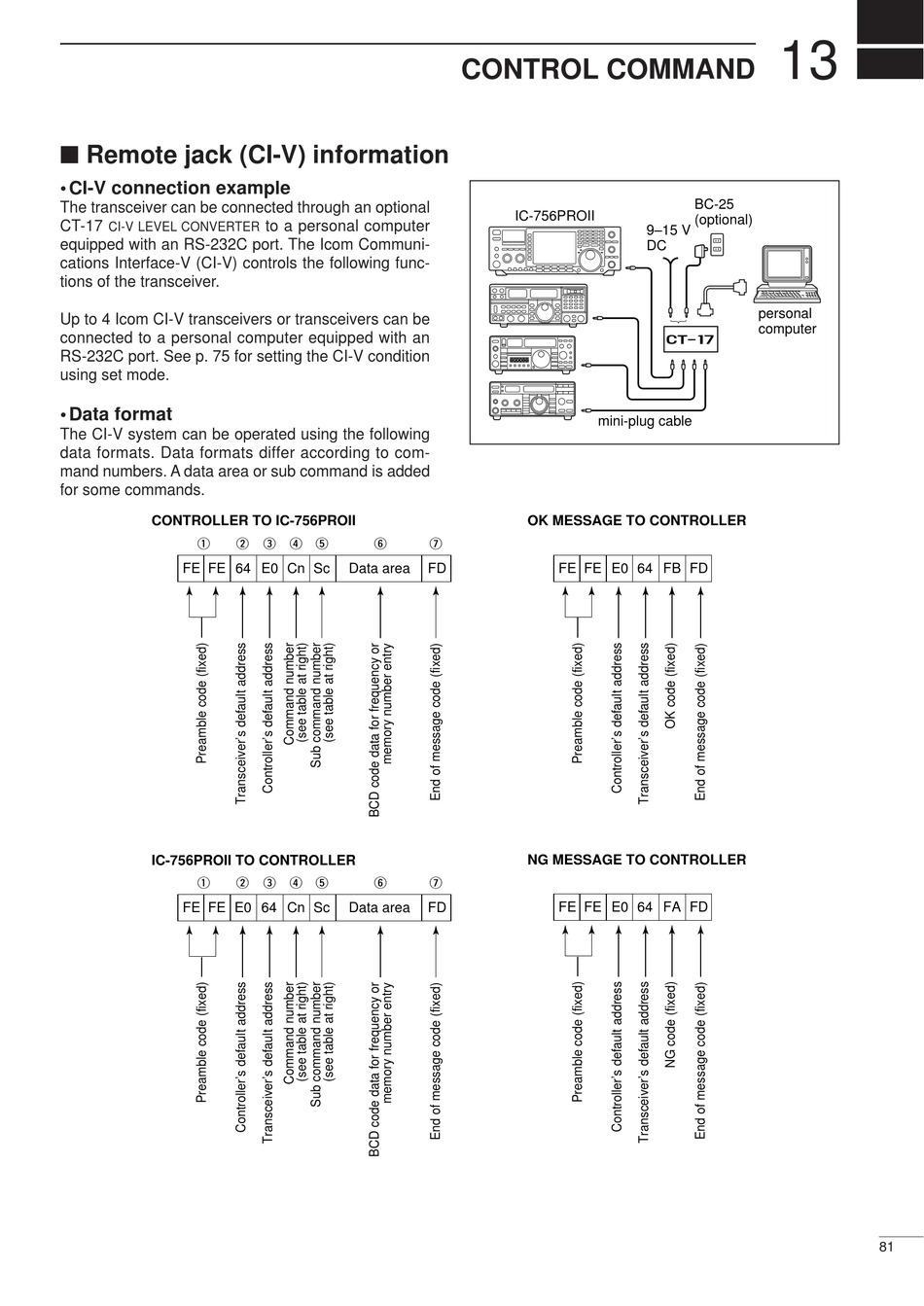

Remote jack (CI-V) information

• CI-V connection example
The transceiver can be connected through an optional
CT-17
CI-V LEVEL CONVERTER
equipped with an RS-232C port. The Icom Communi-
cations Interface-V (CI-V) controls the following func-
tions of the transceiver.
Up to 4 Icom CI-V transceivers or transceivers can be
connected to a personal computer equipped with an
RS-232C port. See p. 75 for setting the CI-V condition
using set mode.
• Data format
The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area or sub command is added
for some commands.
CONTROLLER TO IC-756PROII
q
FE FE 64 E0 Cn Sc
IC-756PROII TO CONTROLLER
q
FE FE E0 64 Cn Sc
to a personal computer
w e r t y
Data area
w e r t y
Data area

CONTROL COMMAND

IC-756PROII
mini-plug cable
OK MESSAGE TO CONTROLLER
u
FD FE FE E0 64 FB FD
NG MESSAGE TO CONTROLLER
u
FD FE FE E0 64 FA FD
