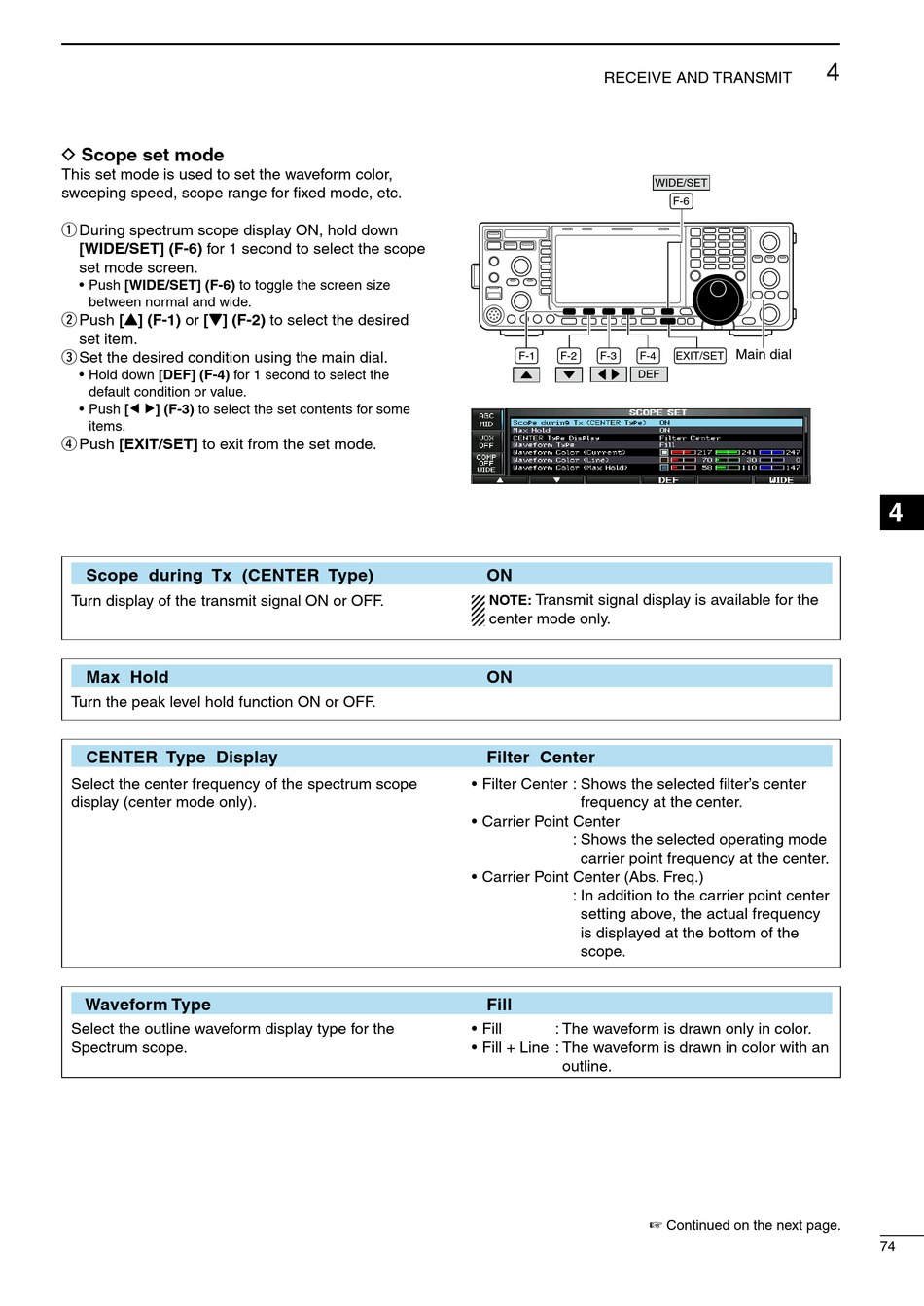

D Scope set mode

This set mode is used to set the waveform color,
sweeping speed, scope range for fixed mode, etc.
q During spectrum scope display ON, hold down
[WIDE/SET] (F-6) for 1 second to select the scope
set mode screen.
• Push [WIDE/SET] (F-6) to toggle the screen size
between normal and wide.
w Push [Y] (F-1) or [Z] (F-2) to select the desired
set item.
e Set the desired condition using the main dial.
• Hold down [DEF] (F-4) for 1 second to select the
default condition or value.
• Push [Ω ≈] (F-3) to select the set contents for some
items.
r Push [EXIT/SET] to exit from the set mode.
Scope during Tx (CENTER Type)
Turn display of the transmit signal ON or OFF.

Max Hold

Turn the peak level hold function ON or OFF.
CENTER Type Display
Select the center frequency of the spectrum scope
display (center mode only).
Waveform Type
Select the outline waveform display type for the
Spectrum scope.
RECEIVE AND TRANSMIT
F-1 F-2 F-3 F-4
DEF
ON
Transmit signal display is available for the
NOTE:
center mode only.
ON
Filter Center
• Filter Center : Shows the selected filter's center
frequency at the center.
• Carrier Point Center
: Shows the selected operating mode
carrier point frequency at the center.
• Carrier Point Center (Abs. Freq.)
: In addition to the carrier point center
setting above, the actual frequency
is displayed at the bottom of the
scope.
Fill
• Fill : The waveform is drawn only in color.
• Fill + Line : The waveform is drawn in color with an
outline.
WIDE/SET
F-6
Main dial
EXIT/SET
☞ Continued on the next page.
