1
PANEL DESCRIPTION

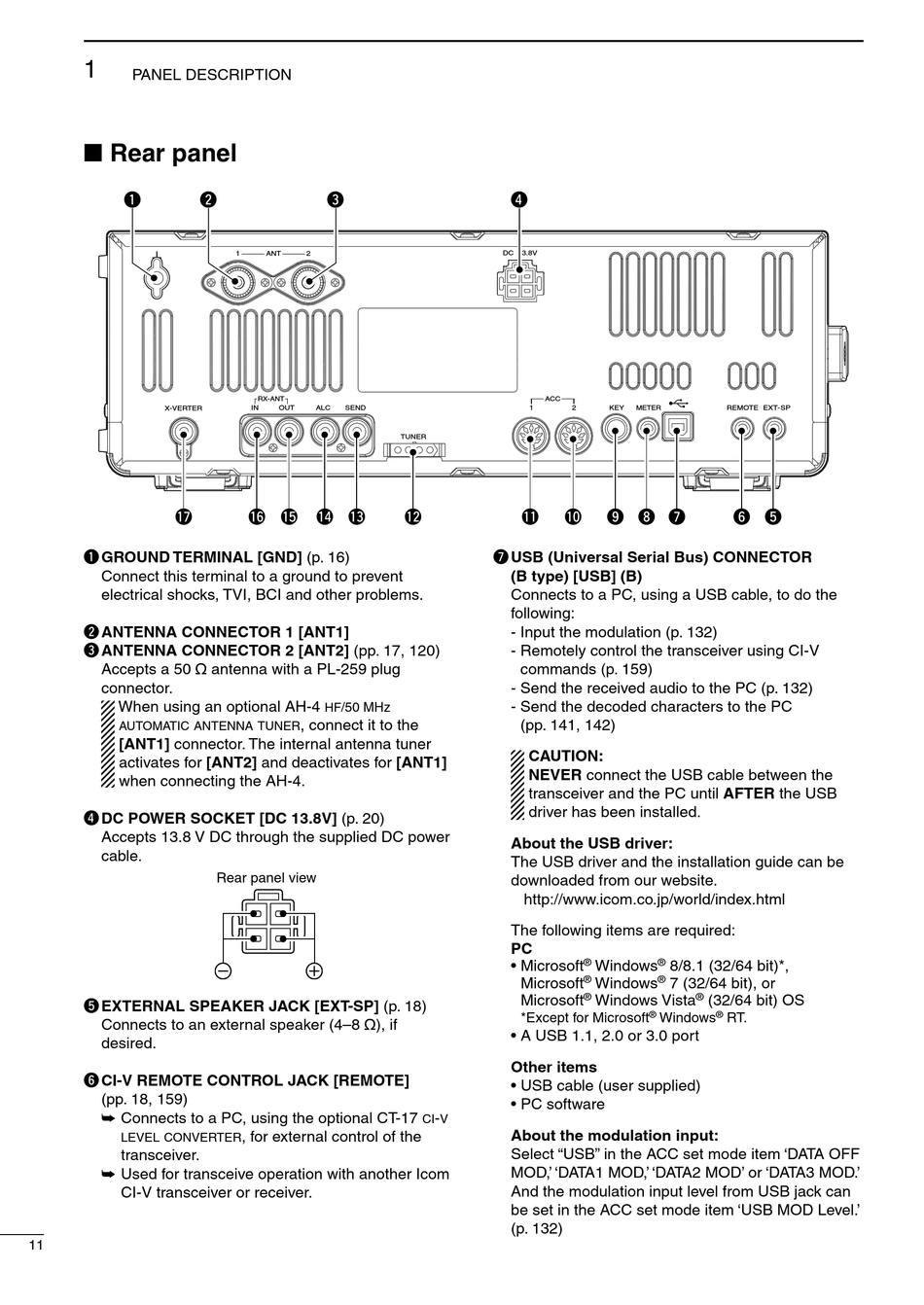

■ Rear panel

q w
X-VERTER
!7
q GROUND TERMINAL [GND] (p. 16)
Connect this terminal to a ground to prevent
electrical shocks, TVI, BCI and other problems.
w ANTENNA CONNECTOR 1 [ANT1]
e ANTENNA CONNECTOR 2 [ANT2] (pp. 17, 120)
Accepts a 50 ø antenna with a PL-259 plug
connector.
When using an optional AH-4
automatic antenna tuner
[ANT1] connector. The internal antenna tuner
activates for [ANT2] and deactivates for [ANT1]
when connecting the AH-4.
r DC POWER SOCKET [DC 13.8V] (p. 20)
Accepts 13.8 V DC through the supplied DC power
cable.
t EXTERNAL SPEAKER JACK [EXT-SP] (p. 18)
Connects to an external speaker (4–8 ø), if
desired.
y CI-V REMOTE CONTROL JACK [REMOTE]
(pp. 18, 159)
➥ Connects to a PC, using the optional CT-17
level converter
transceiver.
➥ Used for transceive operation with another Icom
CI-V transceiver or receiver.
11
e
1 ANT 2
RX-ANT
IN OUT ALC SEND
!6 !5 !4 !3
/50 MHz
hf
, connect it to the
Rear panel view
, for external control of the
r
DC 13.8V
ACC
1 2
TUNER
!2 !1 !0
u USB (Universal Serial Bus) CONNECTOR
(B type) [USB] (B)
Connects to a PC, using a USB cable, to do the
following:
- Input the modulation (p. 132)
- Remotely control the transceiver using CI-V
commands (p. 159)
- Send the received audio to the PC (p. 132)
- Send the decoded characters to the PC
(pp. 141, 142)
CAUTION:
NEVER connect the USB cable between the
transceiver and the PC until AFTER the USB
driver has been installed.
About the USB driver:
The USB driver and the installation guide can be
downloaded from our website.
http://www.icom.co.jp/world/index.html
The following items are required:
PC
• Microsoft
Microsoft
Microsoft
*Except for Microsoft
• A USB 1.1, 2.0 or 3.0 port
Other items
• USB cable (user supplied)
• PC software
-
ci v
About the modulation input:
Select "USB" in the ACC set mode item 'DATA OFF
MOD,' 'DATA1 MOD,' 'DATA2 MOD' or 'DATA3 MOD.'
And the modulation input level from USB jack can
be set in the ACC set mode item 'USB MOD Level.'
(p. 132)
KEY REMOTE EXT-SP
METER
o i u y
® Windows ® 8/8.1 (32/64 bit)*,
® Windows ® 7 (32/64 bit), or
® ®
Windows Vista (32/64 bit) OS
® ®
Windows RT.
t
