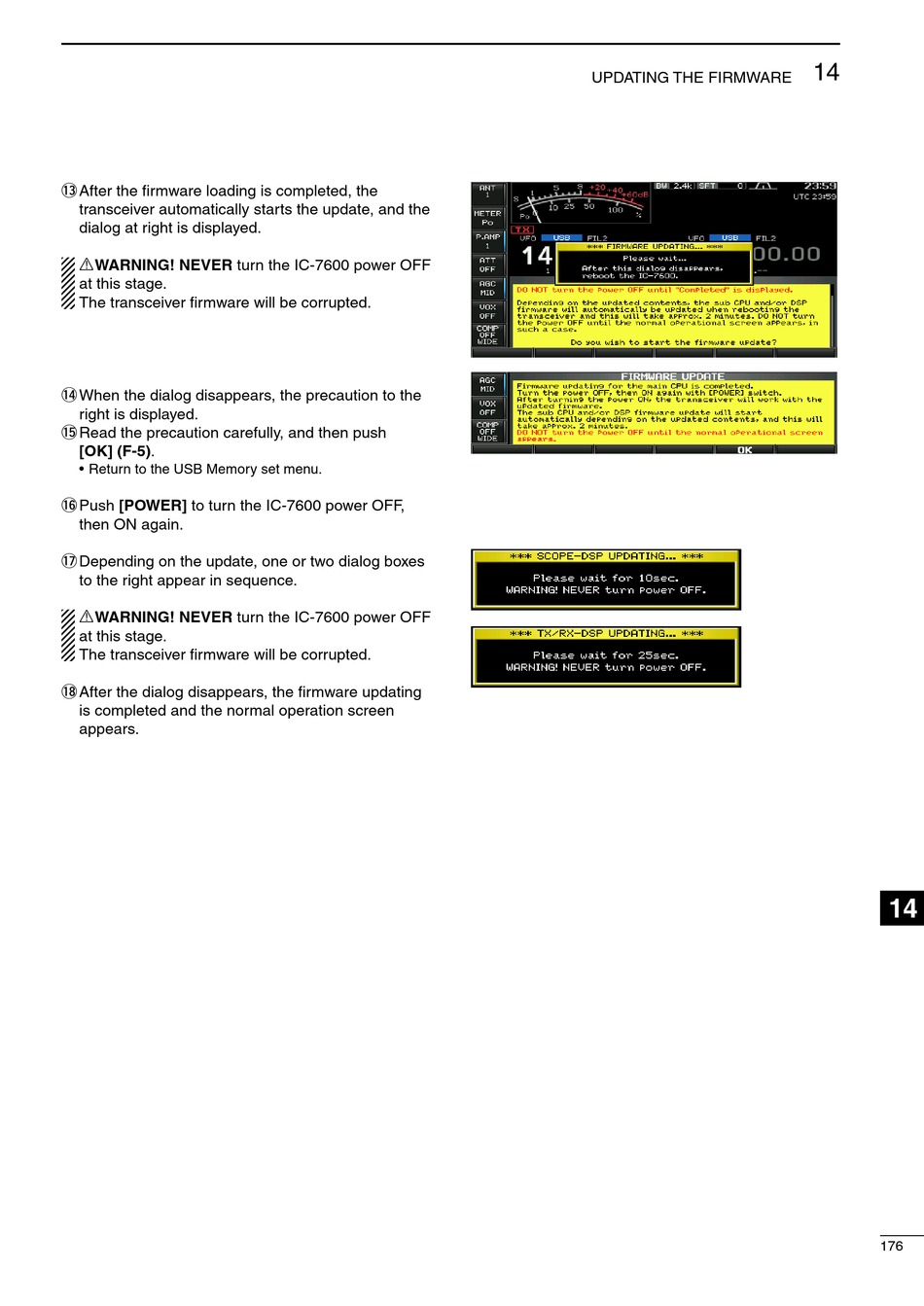

Icom IC-7600 Instruction Manual page 185

!3 After the firmware loading is completed, the
transceiver automatically starts the update, and the
dialog at right is displayed.
RWARNING! NEVER turn the IC-7600 power OFF
at this stage.
The transceiver firmware will be corrupted.
!4 When the dialog disappears, the precaution to the
right is displayed.
!5 Read the precaution carefully, and then push
[OK] (F-5).
• Return to the USB Memory set menu.
!6 Push [POWER] to turn the IC-7600 power OFF,
then ON again.
!7 Depending on the update, one or two dialog boxes
to the right appear in sequence.
RWARNING! NEVER turn the IC-7600 power OFF
at this stage.
The transceiver firmware will be corrupted.
!8 After the dialog disappears, the firmware updating
is completed and the normal operation screen
appears.
UPDATING THE FIRMWARE
