4
RECEIVE AND TRANSMIT

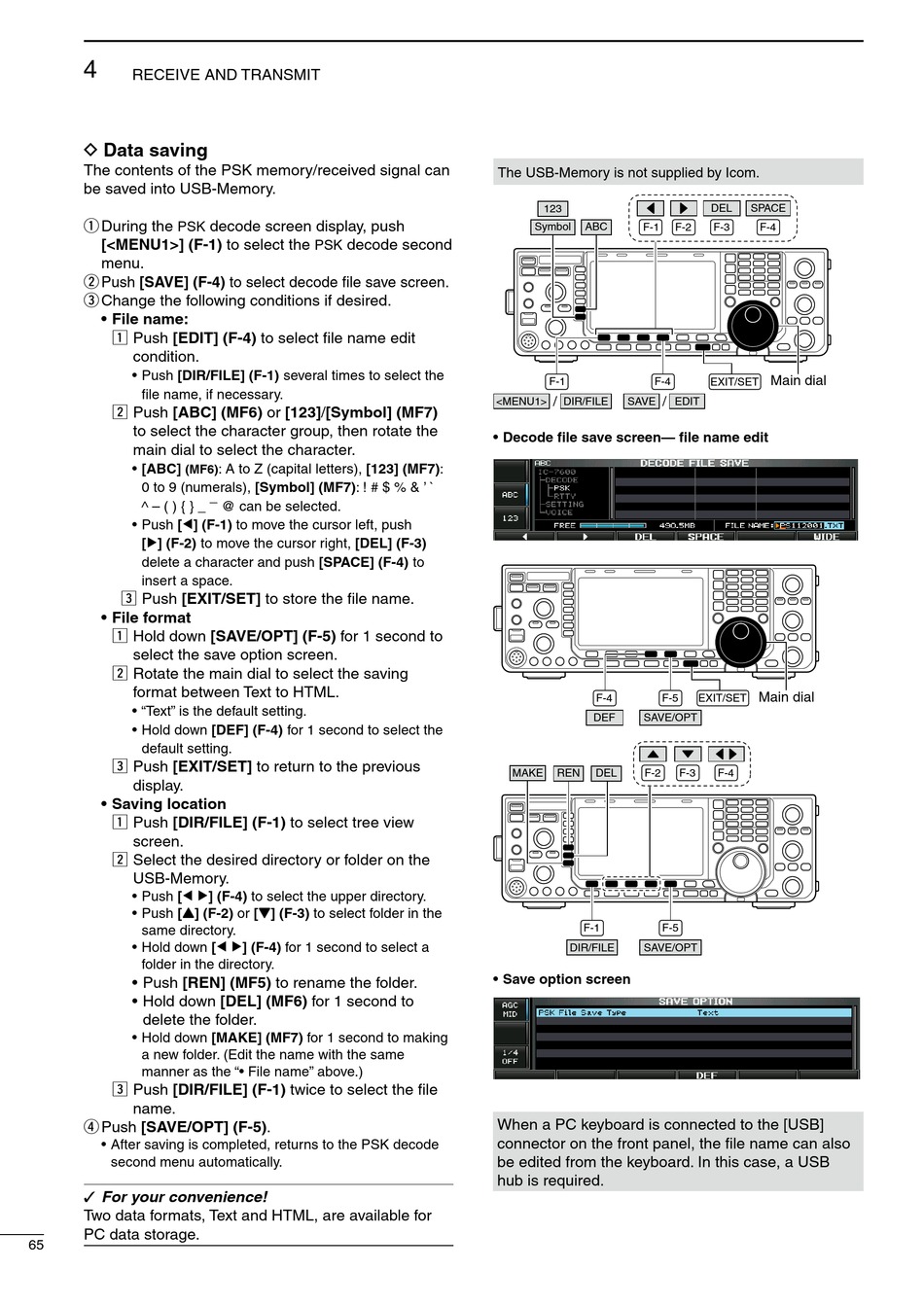

D Data saving

The contents of the PSK memory/received signal can
be saved into USB-Memory.
q During the
PSK
[<MENU1>] (F-1) to select the
menu.
w Push [SAVE] (F-4) to select decode file save screen.
e Change the following conditions if desired.
• File name:
z Push [EDIT] (F-4) to select file name edit
condition.
• Push [DIR/FILE] (F-1) several times to select the
file name, if necessary.
x Push [ABC] (MF6) or [123]/[Symbol] (MF7)
to select the character group, then rotate the
main dial to select the character.
• [ABC]
(MF6)
0 to 9 (numerals), [Symbol] (MF7): ! # $ % & ' `
^ – ( ) { } _
• Push [Ω] (F-1) to move the cursor left, push
[≈] (F-2) to move the cursor right, [DEL] (F-3)
delete a character and push [SPACE] (F-4) to
insert a space.
c Push [EXIT/SET] to store the file name.
• File format
z Hold down [SAVE/OPT] (F-5) for 1 second to
select the save option screen.
x Rotate the main dial to select the saving
format between Text to HTML.
• "Text" is the default setting.
• Hold down [DEF] (F-4) for 1 second to select the
default setting.
c Push [EXIT/SET] to return to the previous
display.
• Saving location
z Push [DIR/FILE] (F-1) to select tree view
screen.
x Select the desired directory or folder on the
USB-Memory.
• Push [Ω ≈] (F-4) to select the upper directory.
• Push [Y] (F-2) or [Z] (F-3) to select folder in the
same directory.
• Hold down [Ω ≈] (F-4) for 1 second to select a
folder in the directory.
• Push [REN] (MF5) to rename the folder.
• Hold down [DEL] (MF6) for 1 second to
delete the folder.
• Hold down [MAKE] (MF7) for 1 second to making
a new folder. (Edit the name with the same
manner as the "• File name" above.)
c Push [DIR/FILE] (F-1) twice to select the file
name.
r Push [SAVE/OPT] (F-5).
• After saving is completed, returns to the PSK decode
second menu automatically.
For your convenience!
✓
Two data formats, Text and HTML, are available for
PC data storage.
65
decode screen display, push
decode second
PSK
: A to Z (capital letters), [123] (MF7):
_
@ can be selected.
The USB-Memory is not supplied by Icom.
123
Symbol ABC
F-1
F-1 F-4
/ /
<MENU1> DIR/FILE SAVE
• Decode file save screen— file name edit
F-4 F-5
DEF SAVE/OPT
MAKE REN DEL F-2
F-1 F-5
DIR/FILE SAVE/OPT
• Save option screen
When a PC keyboard is connected to the [USB]
connector on the front panel, the file name can also
be edited from the keyboard. In this case, a USB
hub is required.
DEL SPACE
F-2 F-3 F-4
Main dial
EXIT/SET
EDIT
Main dial
EXIT/SET
F-3 F-4
