File Saving - Icom IC-7600 Instruction Manual

10
SET MODE

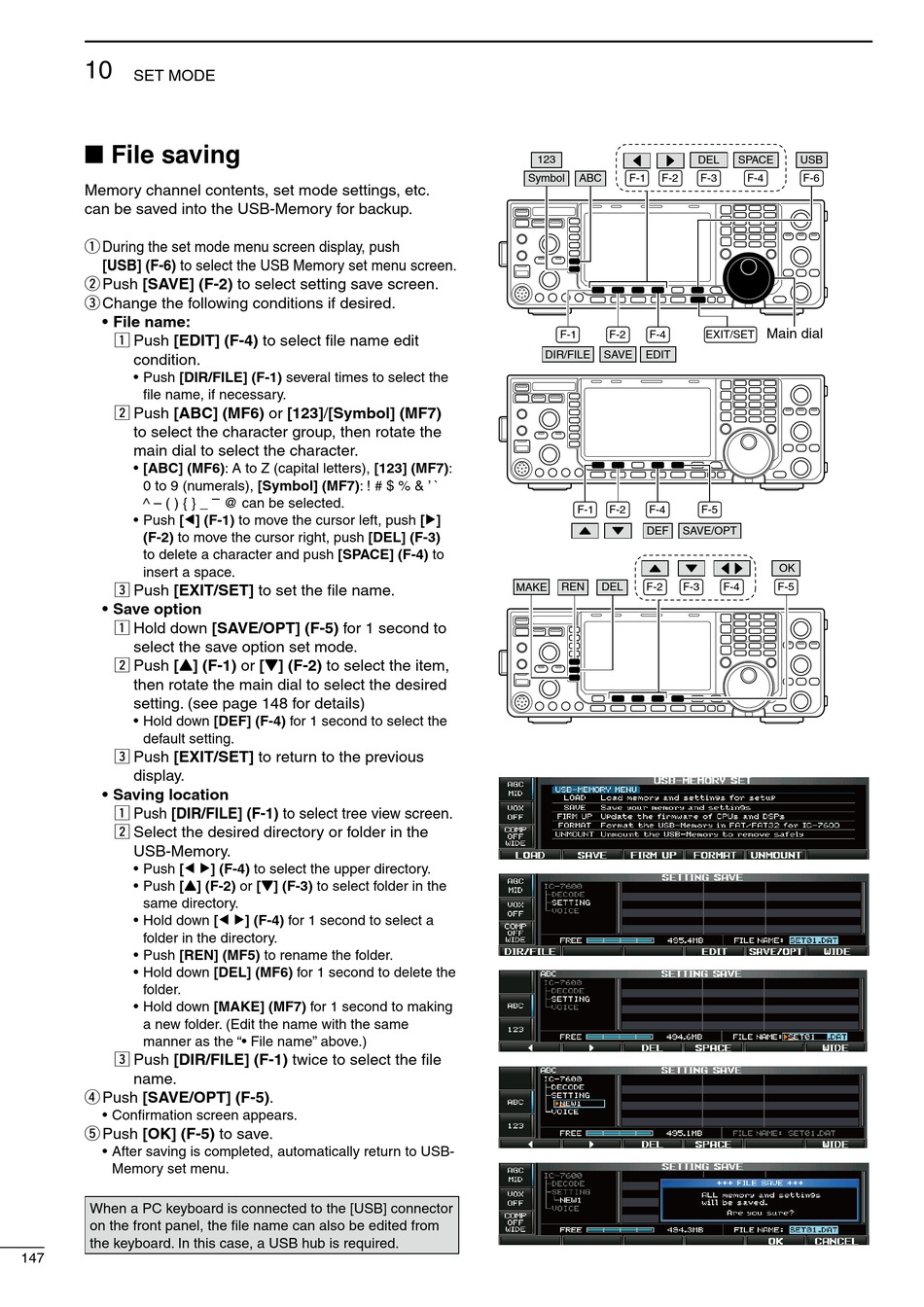

■ File saving

Memory channel contents, set mode settings, etc.
can be saved into the USB-Memory for backup.
q During the set mode menu screen display, push
[USB] (F-6) to select the USB Memory set menu screen.
w Push [SAVE] (F-2) to select setting save screen.
e Change the following conditions if desired.
• File name:
z Push [EDIT] (F-4) to select file name edit
condition.
• Push [DIR/FILE] (F-1) several times to select the
file name, if necessary.
x Push [ABC] (MF6) or [123]/[Symbol] (MF7)
to select the character group, then rotate the
main dial to select the character.
• [ABC] (MF6): A to Z (capital letters), [123] (MF7):
0 to 9 (numerals), [Symbol] (MF7): ! # $ % & ' `
^ – ( ) { } _ – @ can be selected.
• Push [Ω] (F-1) to move the cursor left, push [≈]
(F-2) to move the cursor right, push [DEL] (F-3)
to delete a character and push [SPACE] (F-4) to
insert a space.
c Push [EXIT/SET] to set the file name.
• Save option
z Hold down [SAVE/OPT] (F-5) for 1 second to
select the save option set mode.
x Push [Y] (F-1) or [Z] (F-2) to select the item,
then rotate the main dial to select the desired
setting. (see page 148 for details)
• Hold down [DEF] (F-4) for 1 second to select the
default setting.
c Push [EXIT/SET] to return to the previous
display.
• Saving location
z Push [DIR/FILE] (F-1) to select tree view screen.
x Select the desired directory or folder in the
USB-Memory.
• Push [Ω ≈] (F-4) to select the upper directory.
• Push [Y] (F-2) or [Z] (F-3) to select folder in the
same directory.
• Hold down [Ω ≈] (F-4) for 1 second to select a
folder in the directory.
• Push [REN] (MF5) to rename the folder.
• Hold down [DEL] (MF6) for 1 second to delete the
folder.
• Hold down [MAKE] (MF7) for 1 second to making
a new folder. (Edit the name with the same
manner as the "• File name" above.)
c Push [DIR/FILE] (F-1) twice to select the file
name.
r Push [SAVE/OPT] (F-5).
• Confirmation screen appears.
t Push [OK] (F-5) to save.
• After saving is completed, automatically return to USB-
Memory set menu.
When a PC keyboard is connected to the [USB] connector
on the front panel, the file name can also be edited from
the keyboard. In this case, a USB hub is required.
147
