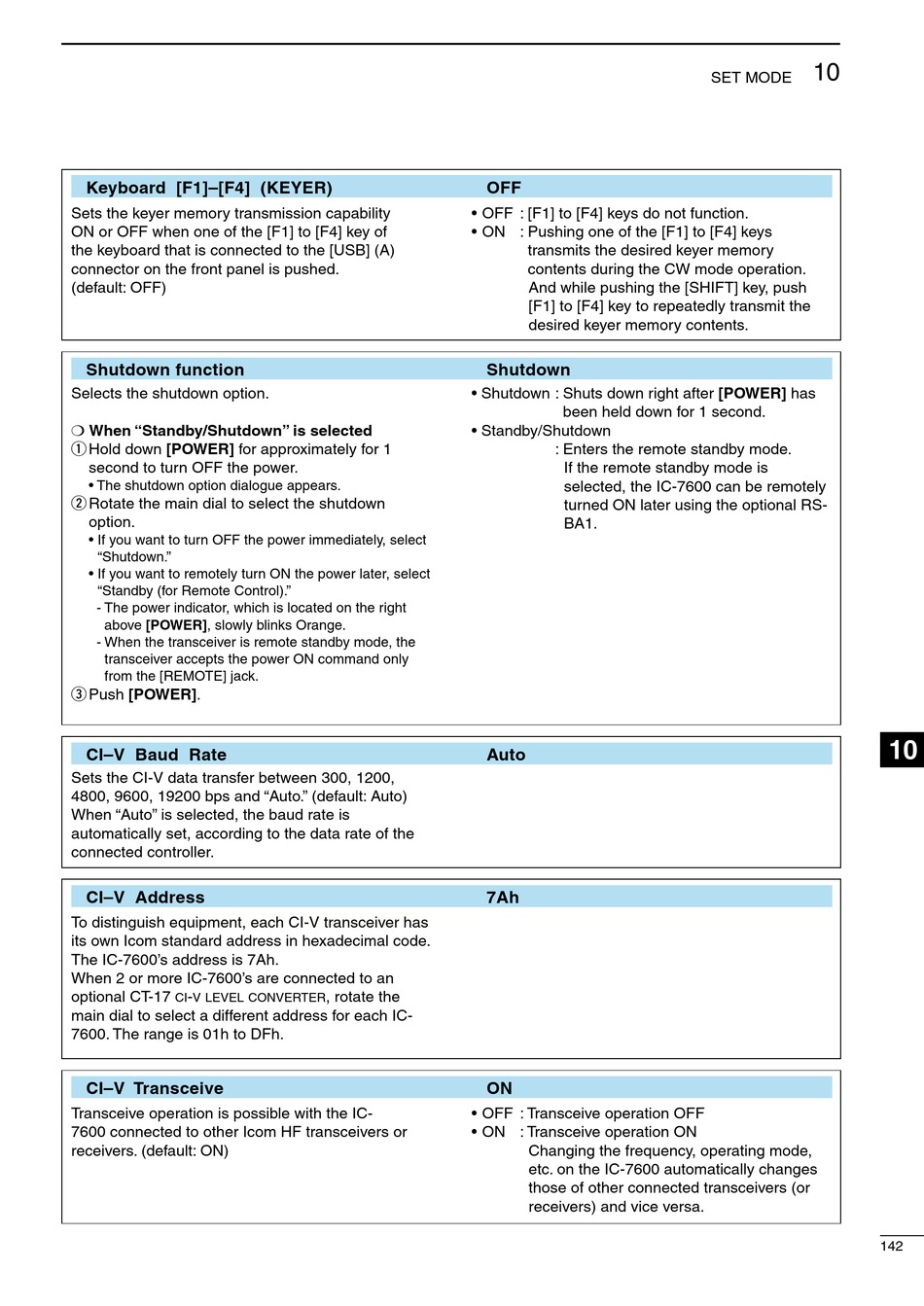

Icom IC-7600 Instruction Manual page 151

Keyboard [F1]–[F4] (KEYER)
Sets the keyer memory transmission capability
ON or OFF when one of the [F1] to [F4] key of
the keyboard that is connected to the [USB] (A)
connector on the front panel is pushed.
(default: OFF)
Shutdown function
Selects the shutdown option.
❍ When "Standby/Shutdown" is selected
Hold down [POWER] for approximately for 1
q
second to turn OFF the power.
• The shutdown option dialogue appears.
Rotate the main dial to select the shutdown
w
option.
• If you want to turn OFF the power immediately, select
"Shutdown."
• If you want to remotely turn ON the power later, select
"Standby (for Remote Control)."
- The power indicator, which is located on the right
above [POWER], slowly blinks Orange.
- When the transceiver is remote standby mode, the
transceiver accepts the power ON command only
from the [REMOTE] jack.
Push [POWER].
e
CI–V Baud Rate
Sets the CI-V data transfer between 300, 1200,
4800, 9600, 19200 bps and "Auto." (default: Auto)
When "Auto" is selected, the baud rate is
automatically set, according to the data rate of the
connected controller.
CI–V Address
To distinguish equipment, each CI-V transceiver has
its own Icom standard address in hexadecimal code.
The IC-7600's address is 7Ah.
When 2 or more IC-7600's are connected to an
optional CT-17 -
ci v level converter
main dial to select a different address for each IC-
7600. The range is 01h to DFh.
CI–V Transceive
Transceive operation is possible with the IC-
7600 connected to other Icom HF transceivers or
receivers. (default: ON)
OFF
• OFF : [F1] to [F4] keys do not function.
• ON : Pushing one of the [F1] to [F4] keys
Shutdown
• Shutdown : Shuts down right after [POWER] has
• Standby/Shutdown
Auto
7Ah
, rotate the
ON
• OFF : Transceive operation OFF
• ON : Transceive operation ON
transmits the desired keyer memory
contents during the CW mode operation.
And while pushing the [SHIFT] key, push
[F1] to [F4] key to repeatedly transmit the
desired keyer memory contents.
been held down for 1 second.
: Enters the remote standby mode.
If the remote standby mode is
selected, the IC-7600 can be remotely
turned ON later using the optional RS-
BA1.
Changing the frequency, operating mode,
etc. on the IC-7600 automatically changes
those of other connected transceivers (or
receivers) and vice versa.
