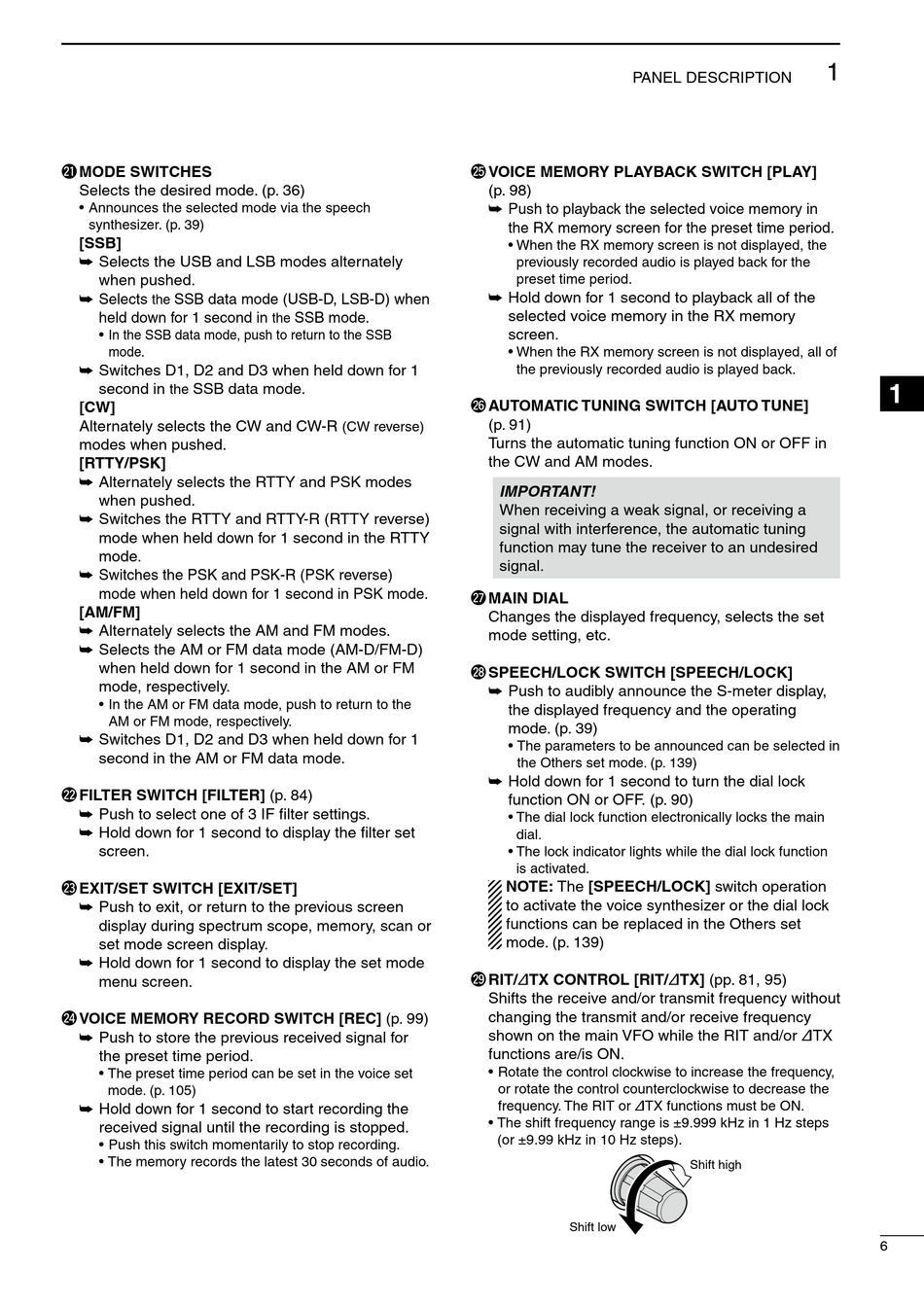

Icom IC-7600 Instruction Manual page 15

@1 MODE SWITCHES
Selects the desired mode. (p. 36)
• Announces the selected mode via the speech
synthesizer. (p. 39)
[SSB]
➥ Selects the USB and LSB modes alternately
when pushed.
➥ Selects SSB data mode (USB-D, LSB-D) when
the
held down for 1 second in
• In the SSB data mode, push to return to the SSB
mode.
➥ Switches D1, D2 and D3 when held down for 1
second in SSB data mode.
the
[CW]
Alternately selects the CW and CW-R
modes when pushed.
[RTTY/PSK]
➥ Alternately selects the RTTY and PSK modes
when pushed.
➥ Switches the RTTY and RTTY-R (RTTY reverse)
mode when held down for 1 second in the RTTY
mode.
➥ Switches the PSK and PSK-R (PSK reverse)
mode when held down for 1 second in PSK mode.
[AM/FM]
➥ Alternately selects the AM and FM modes.
➥ Selects the AM or FM data mode (AM-D/FM-D)
when held down for 1 second in the AM or FM
mode, respectively.
• In the AM or FM data mode, push to return to the
AM or FM mode, respectively.
➥ Switches D1, D2 and D3 when held down for 1
second in the AM or FM data mode.
@2 FILTER SWITCH [FILTER] (p. 84)
➥ Push to select one of 3 IF filter settings.
➥ Hold down for 1 second to display the filter set
screen.
@3 EXIT/SET SWITCH [EXIT/SET]
➥ Push to exit, or return to the previous screen
display during spectrum scope, memory, scan or
set mode screen display.
➥ Hold down for 1 second to display the set mode
menu screen.
@4 VOICE MEMORY RECORD SWITCH [REC] (p. 99)
Push to store the previous received signal for
➥
the preset time period.
• The preset time period can be set in the voice set
mode. (p. 105)
Hold down for 1 second to start recording the
➥
received signal until the recording is stopped.
• Push this switch momentarily to stop recording.
• The memory records the latest 30 seconds of audio.
SSB mode.
the
(CW reverse)
PANEL DESCRIPTION
@5 VOICE MEMORY PLAYBACK SWITCH [PLAY]
(p. 98)
➥ Push to playback the selected voice memory in
the RX memory screen for the preset time period.
• When the RX memory screen is not displayed, the
previously recorded audio is played back for the
preset time period.
➥ Hold down for 1 second to playback all of the
selected voice memory in the RX memory
screen.
• When the RX memory screen is not displayed, all of
the previously recorded audio is played back.
@6 AUTOMATIC TUNING SWITCH [AUTO TUNE]
(p. 91)
Turns the automatic tuning function ON or OFF in
the CW and AM modes.
IMPORTANT!
When receiving a weak signal, or receiving a
signal with interference, the automatic tuning
function may tune the receiver to an undesired
signal.
@7 MAIN DIAL
Changes the displayed frequency, selects the set
mode setting, etc.
@8 SPEECH/LOCK SWITCH [SPEECH/LOCK]
➥ Push to audibly announce the S-meter display,
the displayed frequency and the operating
mode. (p. 39)
• The parameters to be announced can be selected in
the Others set mode. (p. 139)
➥ Hold down for 1 second to turn the dial lock
function ON or OFF. (p. 90)
• The dial lock function electronically locks the main
dial.
• The lock indicator lights while the dial lock function
is activated.
NOTE: The [SPEECH/LOCK] switch operation
to activate the voice synthesizer or the dial lock
functions can be replaced in the Others set
mode. (p. 139)
@9 RIT/∂TX CONTROL [RIT/∂TX] (pp. 81, 95)
Shifts the receive and/or transmit frequency without
changing the transmit and/or receive frequency
shown on the main VFO while the RIT and/or ∂TX
functions are/is ON.
• Rotate the control clockwise to increase the frequency,
or rotate the control counterclockwise to decrease the
frequency. The RIT or ∂TX functions must be ON.
• The shift frequency range is ±9.999 kHz in 1 Hz steps
(or ±9.99 kHz in 10 Hz steps).
Shift low
1
Shift high
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
6
