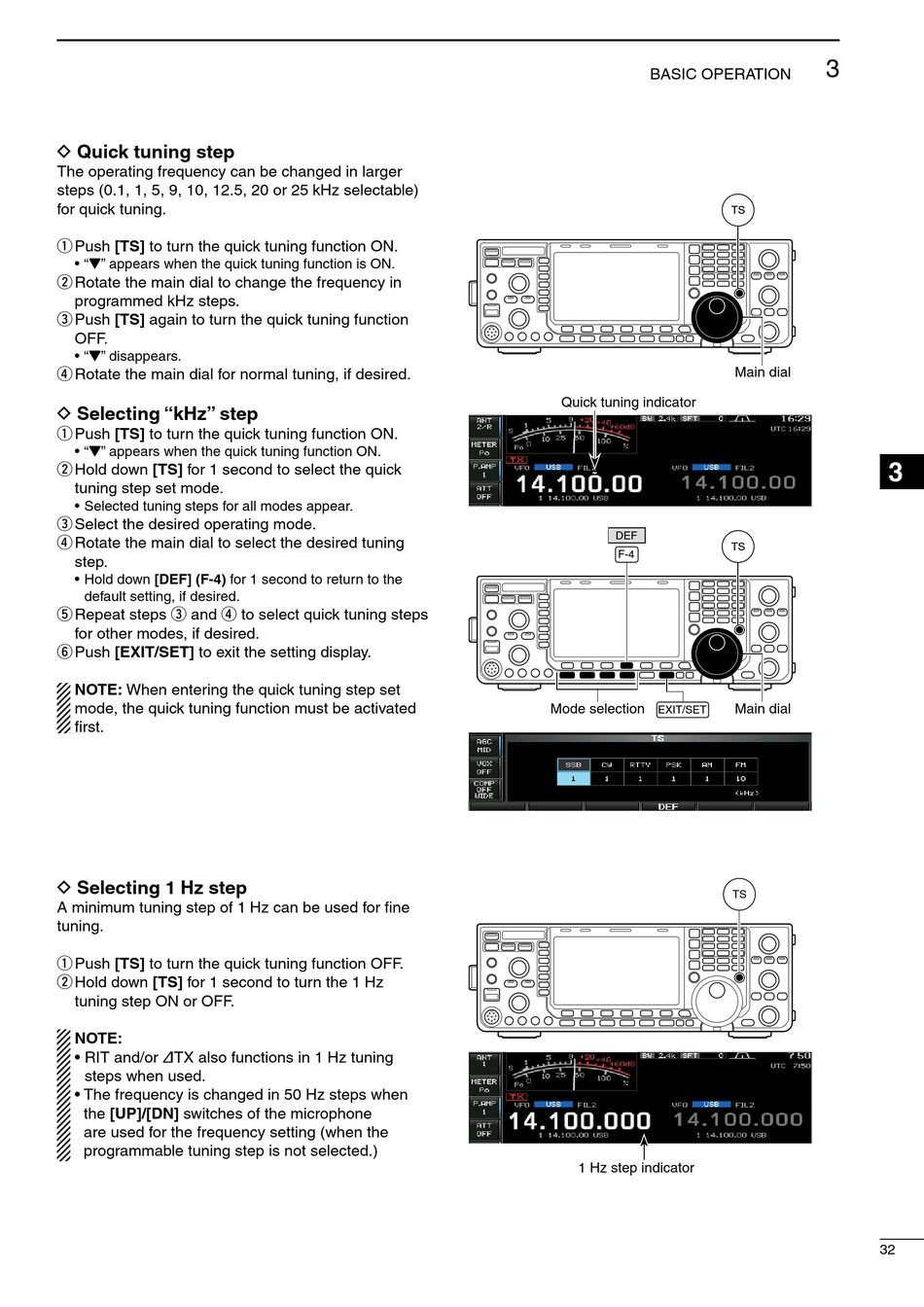

D Quick tuning step
The operating frequency can be changed in larger
steps (0.1, 1, 5, 9, 10, 12.5, 20 or 25 kHz selectable)
for quick tuning.
Push [TS] to turn the quick tuning function ON.
q
• "Z" appears when the quick tuning function is ON.
Rotate the main dial to change the frequency in
w
programmed kHz steps.
Push [TS] again to turn the quick tuning function
e
OFF.
• "Z" disappears.
Rotate the main dial for normal tuning, if desired.
r
D Selecting "kHz" step
[TS] to turn the quick tuning function ON.
Push
q
• "Z" appears when the quick tuning function ON.
Hold down [TS] for 1 second to select the quick
w
tuning step set mode.
• Selected tuning steps for all modes appear.
Select the desired operating mode.
e
Rotate the main dial to select the desired tuning
r
step.
• Hold down [DEF] (F-4) for 1 second to return to the
default setting, if desired.
Repeat steps e and r to select quick tuning steps
t
for other modes, if desired.
Push [EXIT/SET] to exit the setting display.
y
NOTE: When entering the quick tuning step set
mode, the quick tuning function must be activated
first.
D Selecting 1 Hz step
A minimum tuning step of 1 Hz can be used for fine
tuning.
Push [TS] to turn the quick tuning function OFF.
q
[TS] for 1 second to turn the 1 Hz
Hold down
w
tuning step ON or OFF.
NOTE:
• RIT and/or ∂TX also functions in 1 Hz tuning
steps when used.
• The frequency is changed in 50 Hz steps when
the [UP]/[DN] switches of the microphone
are used for the frequency setting (when the
programmable tuning step is not selected.)
BASIC OPERATION
Quick tuning indicator
DEF
F-4
Mode selection
EXIT/SET
1 Hz step indicator
3
TS
Main dial
1
2
3
4
5
TS
6
7
8
9
Main dial
10
11
12
13
TS
14
15
16
17
18
19
20
21
