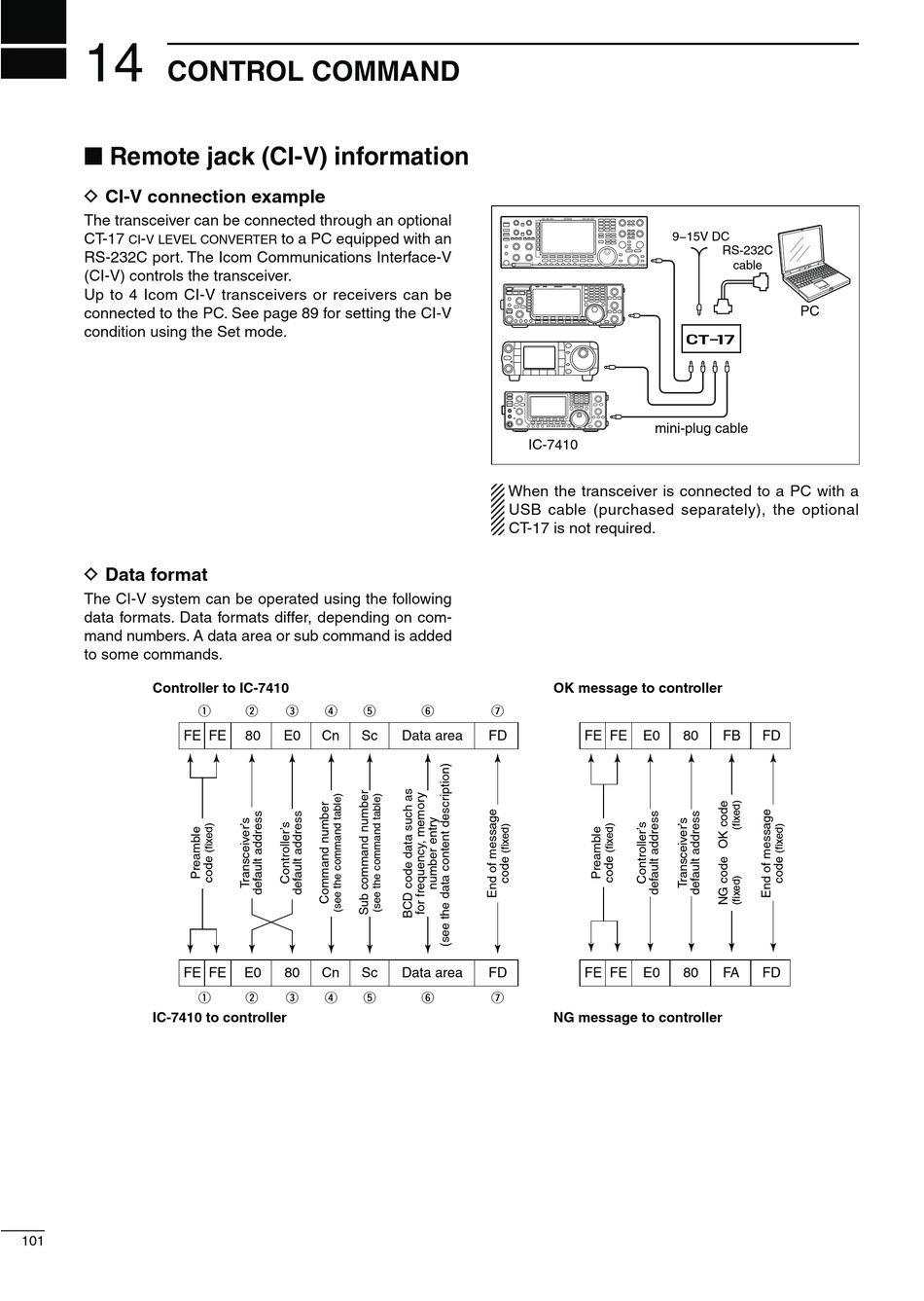

CONTROL COMMAND

D
The transceiver can be connected through an optional
-
CT-17 CI V LEVEL CONVERTER
RS-232C port. The Icom Communications Interface-V
(CI-V) controls the transceiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to the PC. See page 89 for setting the CI-V
condition using the Set mode.
D
The CI-V system can be operated using the following
data formats. Data formats differ, depending on com-
mand numbers. A data area or sub command is added
to some commands.
Controller to IC-7410
FE FE
FE FE
IC-7410 to controller
101
to a PC equipped with an
q w e r t
80 E0 Cn Sc
E0 80 Cn Sc
q w e r t
IC-7410
When the transceiver is connected to a PC with a
USB cable (purchased separately), the optional
CT-17 is not required.
OK message to controller
y u
Data area FD
Data area FD
y u
NG message to controller
9−15V DC
RS-232C
cable
ct-17
mini-plug cable
FE FE E0 80 FB
FE FE E0 80 FA
PC
FD
FD
