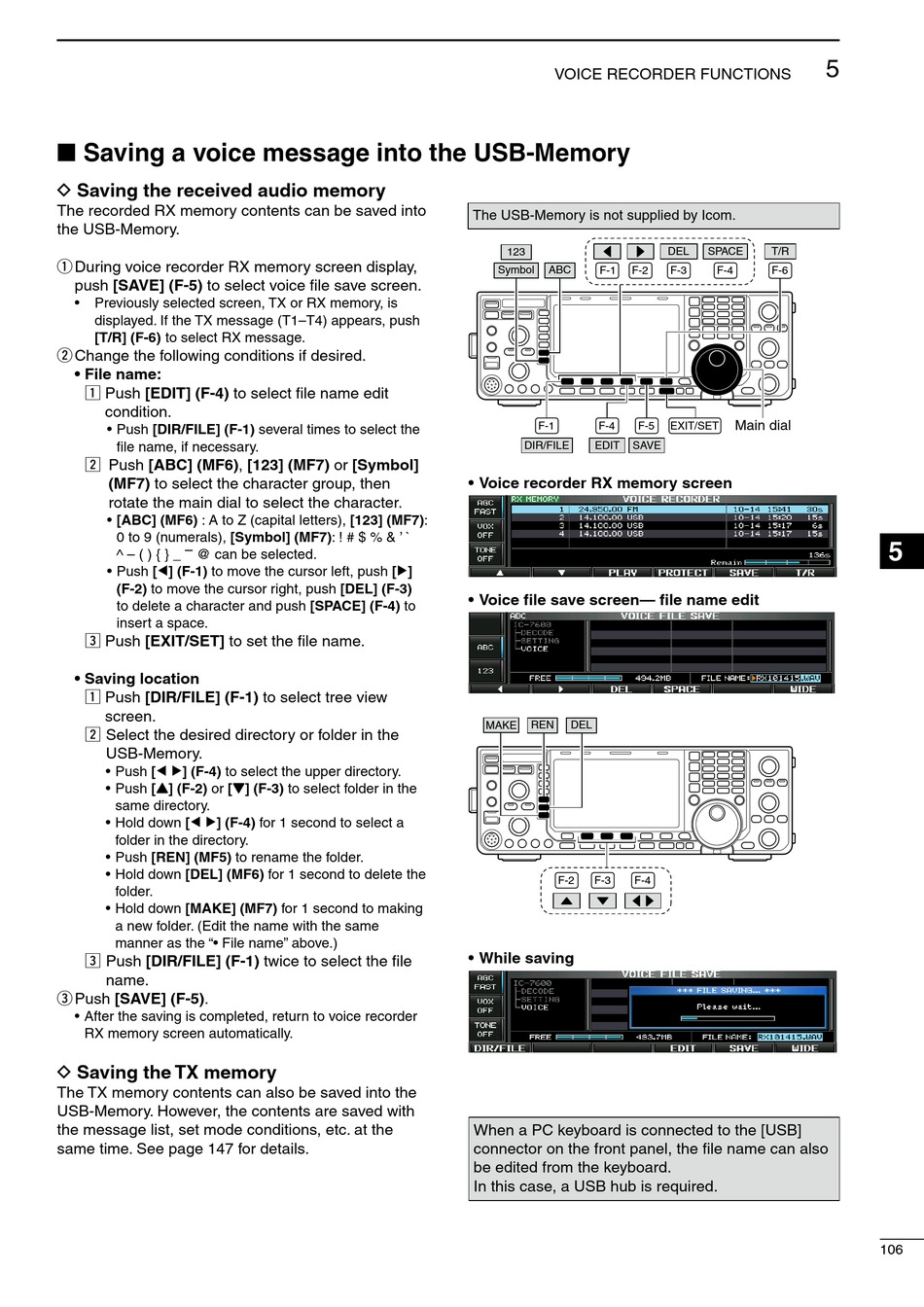

■ Saving a voice message into the USB-Memory

D Saving the received audio memory

The recorded RX memory contents can be saved into
the USB-Memory.
q During voice recorder RX memory screen display,
push [SAVE] (F-5) to select voice file save screen.
• Previously selected screen, TX or RX memory, is
displayed. If the TX message (T1–T4) appears, push
[T/R] (F-6) to select RX message.
w Change the following conditions if desired.
• File name:
z Push [EDIT] (F-4) to select file name edit
condition.
• Push [DIR/FILE] (F-1) several times to select the
file name, if necessary.
x Push [ABC] (MF6), [123] (MF7) or [Symbol]
(MF7) to select the character group, then
rotate the main dial to select the character.
• [ABC] (MF6) : A to Z (capital letters), [123] (MF7):
0 to 9 (numerals), [Symbol] (MF7): ! # $ % & ' `
^ – ( ) { } _ – @ can be selected.
• Push [Ω] (F-1) to move the cursor left, push [≈]
(F-2) to move the cursor right, push [DEL] (F-3)
to delete a character and push [SPACE] (F-4) to
insert a space.
c Push [EXIT/SET] to set the file name.
• Saving location
z Push [DIR/FILE] (F-1) to select tree view
screen.
x Select the desired directory or folder in the
USB-Memory.
• Push [Ω ≈] (F-4) to select the upper directory.
• Push [Y] (F-2) or [Z] (F-3) to select folder in the
same directory.
• Hold down [Ω ≈] (F-4) for 1 second to select a
folder in the directory.
• Push [REN] (MF5) to rename the folder.
• Hold down [DEL] (MF6) for 1 second to delete the
folder.
• Hold down [MAKE] (MF7) for 1 second to making
a new folder. (Edit the name with the same
manner as the "• File name" above.)
c Push [DIR/FILE] (F-1) twice to select the file
name.
e Push [SAVE] (F-5).
• After the saving is completed, return to voice recorder
RX memory screen automatically.

D Saving the TX memory

The TX memory contents can also be saved into the
USB-Memory. However, the contents are saved with
the message list, set mode conditions, etc. at the
same time. See page 147 for details.
VOICE RECORDER FUNCTIONS
The USB-Memory is not supplied by Icom.
123
Symbol ABC
F-1 F-2
F-1 F-4 F-5
DIR/FILE EDIT SAVE
• Voice recorder RX memory screen
• Voice file save screen— file name edit
REN DEL
MAKE
F-2 F-3 F-4
• While saving
When a PC keyboard is connected to the [USB]
connector on the front panel, the file name can also
be edited from the keyboard.
In this case, a USB hub is required.
5
DEL SPACE T/R
F-3 F-4 F-6
Main dial
EXIT/SET
