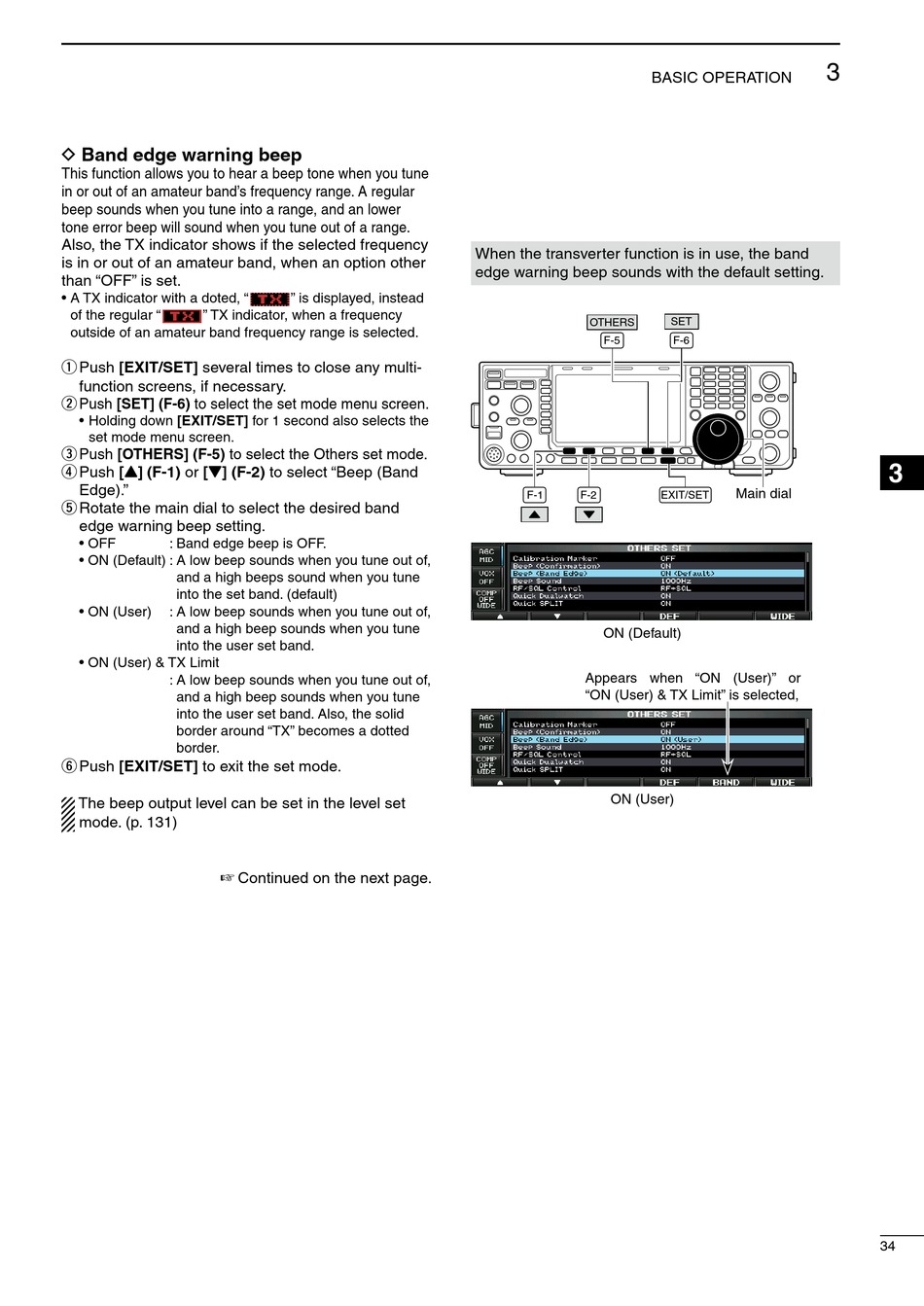

Band Edge Warning Beep - Icom IC-7600 Instruction Manual

D Band edge warning beep
This function allows you to hear a beep tone when you tune
in or out of an amateur band's frequency range. A regular
beep sounds when you tune into a range, and an lower
tone error beep will sound when you tune out of a range.
Also, the TX indicator shows if the selected frequency
is in or out of an amateur band, when an option other
than "OFF" is set.
• A TX indicator with a doted, "
of the regular " " TX indicator, when a frequency
outside of an amateur band frequency range is selected.
q Push [EXIT/SET] several times to close any multi-
function screens, if necessary.
w Push [SET] (F-6) to select the set mode menu screen.
• Holding down [EXIT/SET] for 1 second also selects the
set mode menu screen.
e Push [OTHERS] (F-5) to select the Others set mode.
r Push [Y] (F-1) or [Z] (F-2) to select "Beep (Band
Edge)."
t Rotate the main dial to select the desired band
edge warning beep setting.
• OFF : Band edge beep is OFF.
• ON (Default) : A low beep sounds when you tune out of,
and a high beeps sound when you tune
into the set band. (default)
• ON (User) : A low beep sounds when you tune out of,
and a high beep sounds when you tune
into the user set band.
• ON (User) & TX Limit
: A low beep sounds when you tune out of,
and a high beep sounds when you tune
into the user set band. Also, the solid
border around "TX" becomes a dotted
border.
y Push [EXIT/SET] to exit the set mode.
The beep output level can be set in the level set
mode. (p. 131)
☞
" is displayed, instead
Continued on the next page.
When the transverter function is in use, the band
edge warning beep sounds with the default setting.
OTHERS
F-5
F-1 F-2
ON (Default)
Appears when "ON (User)" or
"ON (User) & TX Limit" is selected,
ON (User)
BASIC OPERATION
SET
F-6
Main dial
EXIT/SET
