4
RECEIVE AND TRANSMIT

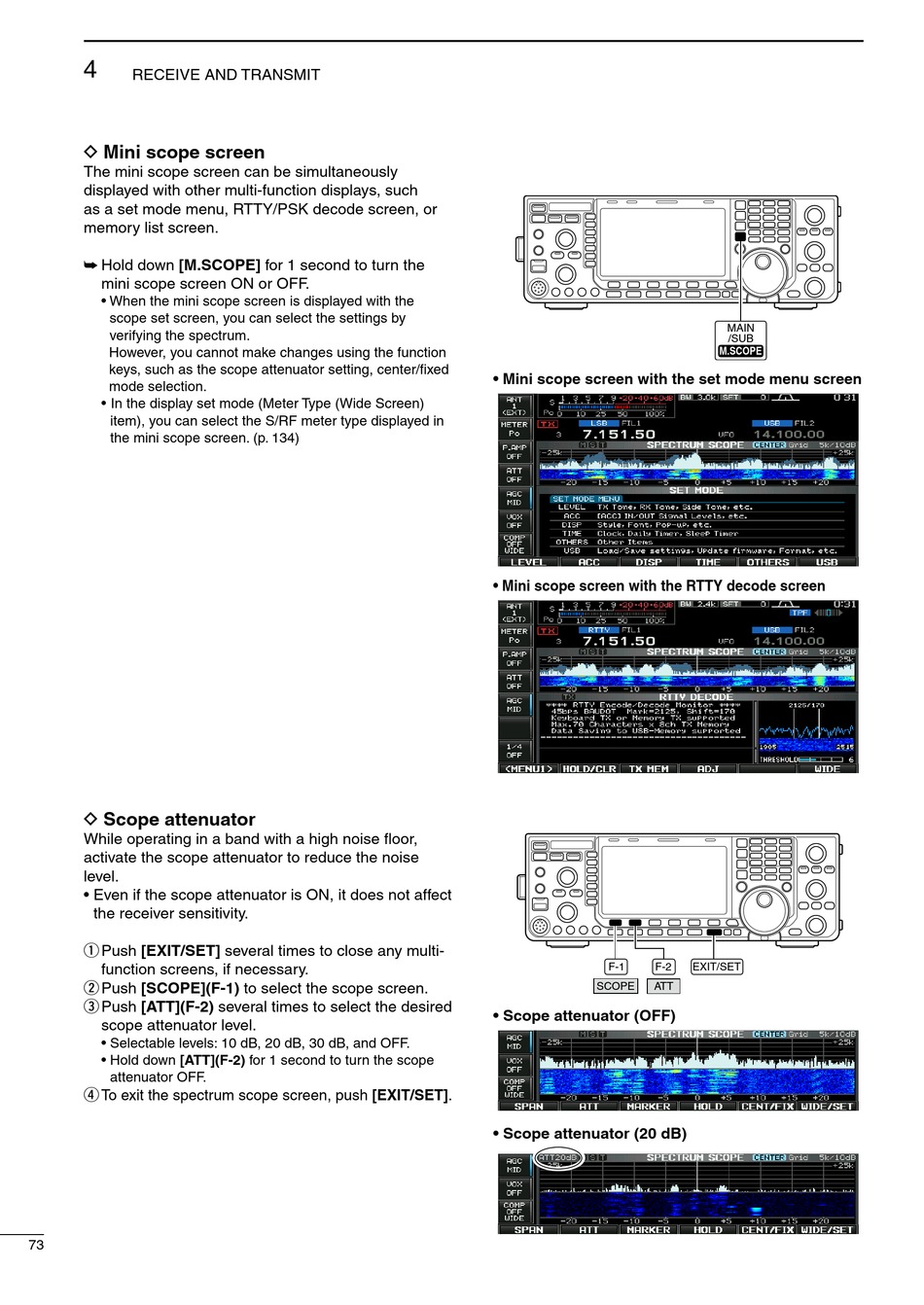

D Mini scope screen

The mini scope screen can be simultaneously
displayed with other multi-function displays, such
as a set mode menu, RTTY/PSK decode screen, or
memory list screen.
Hold down [M.SCOPE] for 1 second to turn the
➥
mini scope screen ON or OFF.
• When the mini scope screen is displayed with the
scope set screen, you can select the settings by
verifying the spectrum.
However, you cannot make changes using the function
keys, such as the scope attenuator setting, center/fixed
mode selection.
• In the display set mode (Meter Type (Wide Screen)
item), you can select the S/RF meter type displayed in
the mini scope screen. (p. 134)

D Scope attenuator

While operating in a band with a high noise floor,
activate the scope attenuator to reduce the noise
level.
• Even if the scope attenuator is ON, it does not affect
the receiver sensitivity.
q Push [EXIT/SET] several times to close any multi-
function screens, if necessary.
Push [SCOPE](F-1) to select the scope screen.
w
Push [ATT](F-2) several times to select the desired
e
scope attenuator level.
• Selectable levels: 10 dB, 20 dB, 30 dB, and OFF.
• Hold down [ATT](F-2) for 1 second to turn the scope
attenuator OFF.
r To exit the spectrum scope screen, push [EXIT/SET].
73
• Mini scope screen with the set mode menu screen
• Mini scope screen with the RTTY decode screen
F-1 F-2
SCOPE ATT
• Scope attenuator (OFF)
• Scope attenuator (20 dB)
MAIN
/SUB
M.SCOPE M.SCOPE
EXIT/SET
