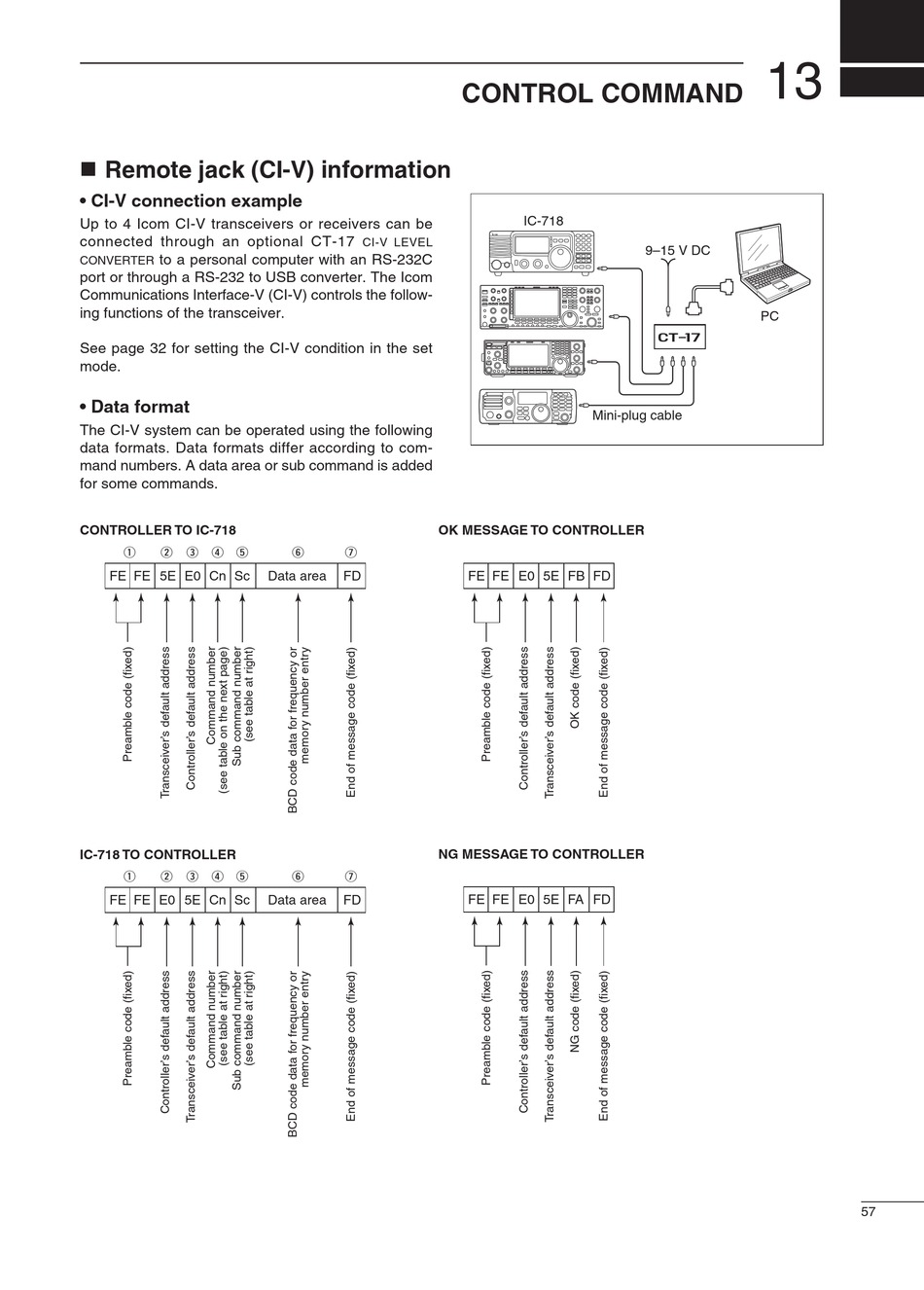

 Remote jack (CI-V) information
• CI-V connection example
Up to 4 Icom CI-V transceivers or receivers can be
connected through an optional CT-17
to a personal computer with an RS-232C
CONVERTER
port or through a RS-232 to USB converter. The Icom
Communications Interface-V (CI-V) controls the follow-
ing functions of the transceiver.
See page 32 for setting the CI-V condition in the set
mode.
• Data format
The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area or sub command is added
for some commands.
CONTROLLER TO IC-718
q w e r t
FE FE 5E E0 Cn Sc
IC-718 TO CONTROLLER
q w e r t
FE FE E0 5E Cn Sc
CI-V LEVEL
OK MESSAGE TO CONTROLLER
y u
Data area FD
NG MESSAGE TO CONTROLLER
y u
Data area FD

CONTROL COMMAND

IC-718
NB NR ANF
METER
V/M 1 A/B 2 SPLIT 3
1.8 = 3.5 7
4 5 6
MW M-CL AGC
10 14 18
7 8 9
COMP 21 SCAN 24 VOX 28
.
MODE TS RIT MNF 0 F-INP ENT
GENE 50 BAND
Mini-plug cable
TUNER FILTER P.AMP
ATT
M-CH/RIT
SET
FE FE E0 5E FB FD
FE FE E0 5E FA FD
13
9–15 V DC
PC
ct-17
57
