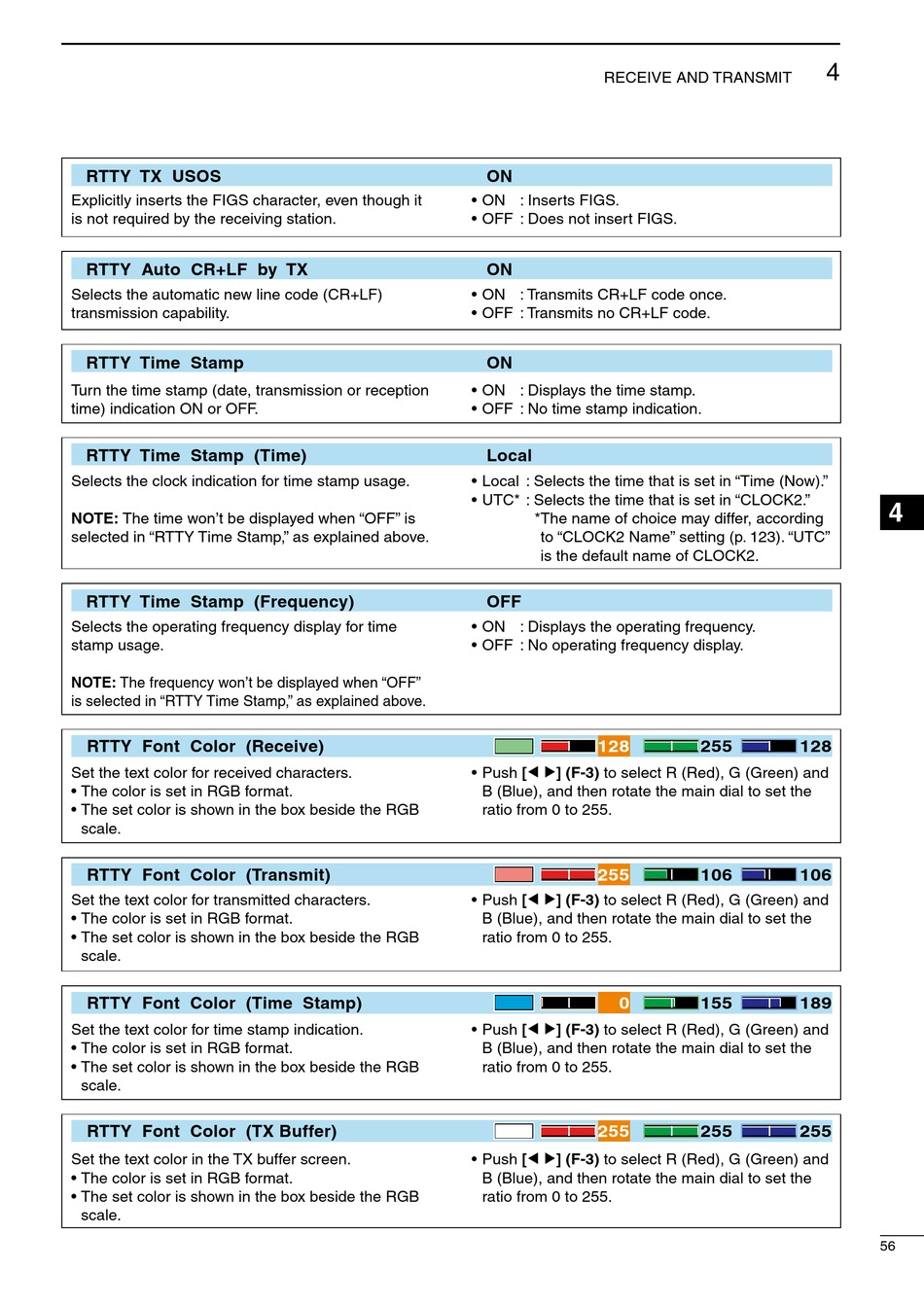

Icom IC-7600 Instruction Manual page 65

RTTY TX USOS
Explicitly inserts the FIGS character, even though it
is not required by the receiving station.
RTTY Auto CR+LF by TX
Selects the automatic new line code (CR+LF)
transmission capability.
RTTY Time Stamp
Turn the time stamp (date, transmission or reception
time) indication ON or OFF.
RTTY Time Stamp (Time)
Selects the clock indication for time stamp usage.
NOTE: The time won't be displayed when "OFF" is
selected in "RTTY Time Stamp," as explained above.
RTTY Time Stamp (Frequency)
Selects the operating frequency display for time
stamp usage.
NOTE: The frequency won't be displayed when "OFF"
is selected in "RTTY Time Stamp," as explained above.
RTTY Font Color (Receive)
Set the text color for received characters.
• The color is set in RGB format.
• The set color is shown in the box beside the RGB
scale.
RTTY Font Color (Transmit)
Set the text color for transmitted characters.
• The color is set in RGB format.
• The set color is shown in the box beside the RGB
scale.
RTTY Font Color (Time Stamp)
Set the text color for time stamp indication.
• The color is set in RGB format.
• The set color is shown in the box beside the RGB
scale.
RTTY Font Color (TX Buffer)
Set the text color in the TX buffer screen.
• The color is set in RGB format.
• The set color is shown in the box beside the RGB
scale.
RECEIVE AND TRANSMIT
ON
• ON : Inserts FIGS.
• OFF : Does not insert FIGS.
ON
• ON : Transmits CR+LF code once.
• OFF : Transmits no CR+LF code.
ON
• ON : Displays the time stamp.
• OFF : No time stamp indication.
Local
• Local : Selects the time that is set in "Time (Now)."
• UTC* : Selects the time that is set in "CLOCK2."
* The name of choice may differ, according
to "CLOCK2 Name" setting (p. 123). "UTC"
is the default name of CLOCK2.
OFF
• ON : Displays the operating frequency.
• OFF : No operating frequency display.
128
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and then rotate the main dial to set the
ratio from 0 to 255.
255
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and then rotate the main dial to set the
ratio from 0 to 255.
0
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and then rotate the main dial to set the
ratio from 0 to 255.
255
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and then rotate the main dial to set the
ratio from 0 to 255.
4
255 128
106 106
155 189
255 255
4
56
