3
BASIC OPERATION

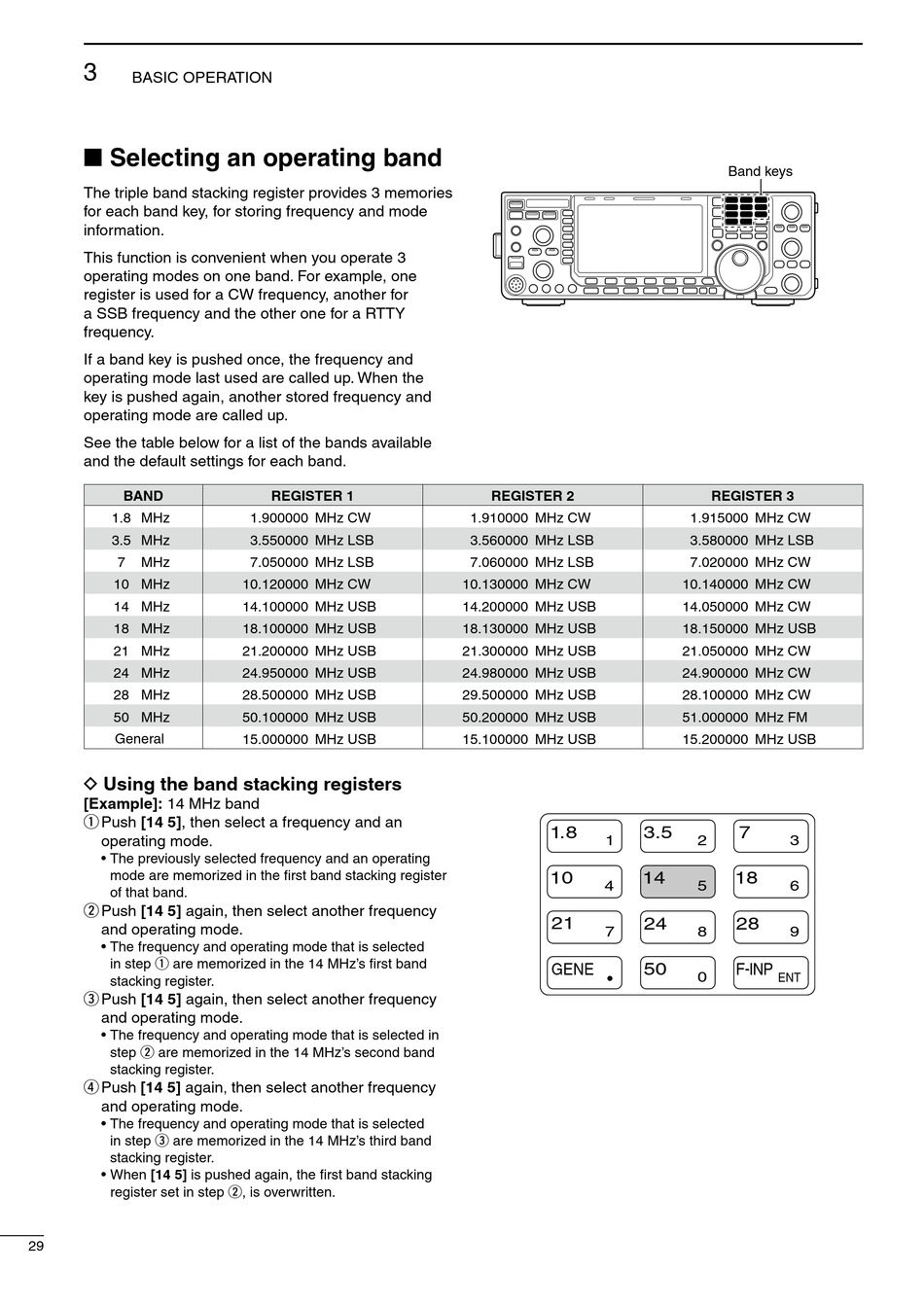

■ Selecting an operating band

The triple band stacking register provides 3 memories
for each band key, for storing frequency and mode
information.
This function is convenient when you operate 3
operating modes on one band. For example, one
register is used for a CW frequency, another for
a SSB frequency and the other one for a RTTY
frequency.
If a band key is pushed once, the frequency and
operating mode last used are called up. When the
key is pushed again, another stored frequency and
operating mode are called up.
See the table below for a list of the bands available
and the default settings for each band.
BAND
1.8 MHz
3.5 MHz
7 MHz
10 MHz
14 MHz
18 MHz
21 MHz
24 MHz
28 MHz
50 MHz
General
D Using the band stacking registers
[Example]: 14 MHz band
Push [14 5], then select a frequency and an
q
operating mode.
• The previously selected frequency and an operating
mode are memorized in the first band stacking register
of that band.
[14 5] again, then select another frequency
Push
w
and operating mode.
• The frequency and operating mode that is selected
in step q are memorized in the 14 MHz's first band
stacking register.
[14 5] again, then select another frequency
Push
e
and operating mode.
• The frequency and operating mode that is selected in
step w are memorized in the 14 MHz's second band
stacking register.
[14 5] again
Push
r
and operating mode.
• The frequency and operating mode that is selected
in step e are memorized in the 14 MHz's third band
stacking register.
• When [14 5] is pushed again, the first band stacking
register set in step w, is overwritten.
29
REGISTER 1
1.900000 MHz CW
3.550000 MHz LSB
7.050000 MHz LSB
10.120000 MHz CW
14.100000 MHz USB
18.100000 MHz USB
21.200000 MHz USB
24.950000 MHz USB
28.500000 MHz USB
50.100000 MHz USB
15.000000 MHz USB
then select another frequency
,
REGISTER 2
1.910000 MHz CW
3.560000 MHz LSB
7.060000 MHz LSB
10.130000 MHz CW
14.200000 MHz USB
18.130000 MHz USB
21.300000 MHz USB
24.980000 MHz USB
29.500000 MHz USB
50.200000 MHz USB
15.100000 MHz USB
1.8
1
10
4
21
7
GENE
Band keys
REGISTER 3
1.915000 MHz CW
3.580000 MHz LSB
7.020000 MHz CW
10.140000 MHz CW
14.050000 MHz CW
18.150000 MHz USB
21.050000 MHz CW
24.900000 MHz CW
28.100000 MHz CW
51.000000 MHz FM
15.200000 MHz USB
3.5 7
2 3
14 18
5 6
24 28
8 9
50 F - INP
0
ENT
