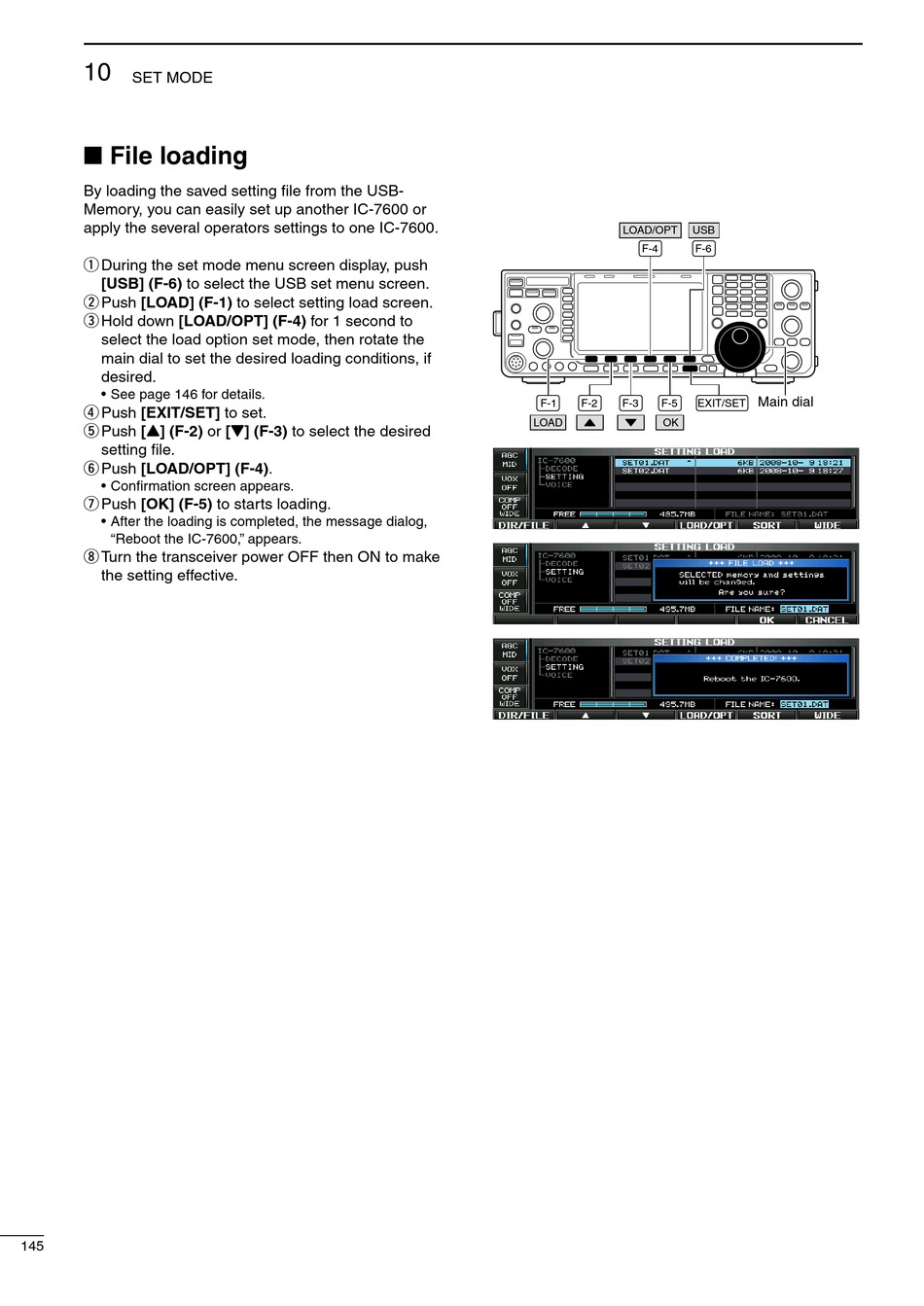

File Loading - Icom IC-7600 Instruction Manual

10
SET MODE

■ File loading

By loading the saved setting file from the USB-
Memory, you can easily set up another IC-7600 or
apply the several operators settings to one IC-7600.
q During the set mode menu screen display, push
[USB] (F-6) to select the USB set menu screen.
w Push [LOAD] (F-1) to select setting load screen.
e Hold down [LOAD/OPT] (F-4) for 1 second to
select the load option set mode, then rotate the
main dial to set the desired loading conditions, if
desired.
• See page 146 for details.
r Push [EXIT/SET] to set.
t Push [Y] (F-2) or [Z] (F-3) to select the desired
setting file.
y Push [LOAD/OPT] (F-4).
• Confirmation screen appears.
u Push [OK] (F-5) to starts loading.
• After the loading is completed, the message dialog,
"Reboot the IC-7600," appears.
i Turn the transceiver power OFF then ON to make
the setting effective.
145
LOAD/OPT USB
F-4 F-6
F-1 F-2 F-3 F-5 EXIT/SET
LOAD OK
Main dial
