3

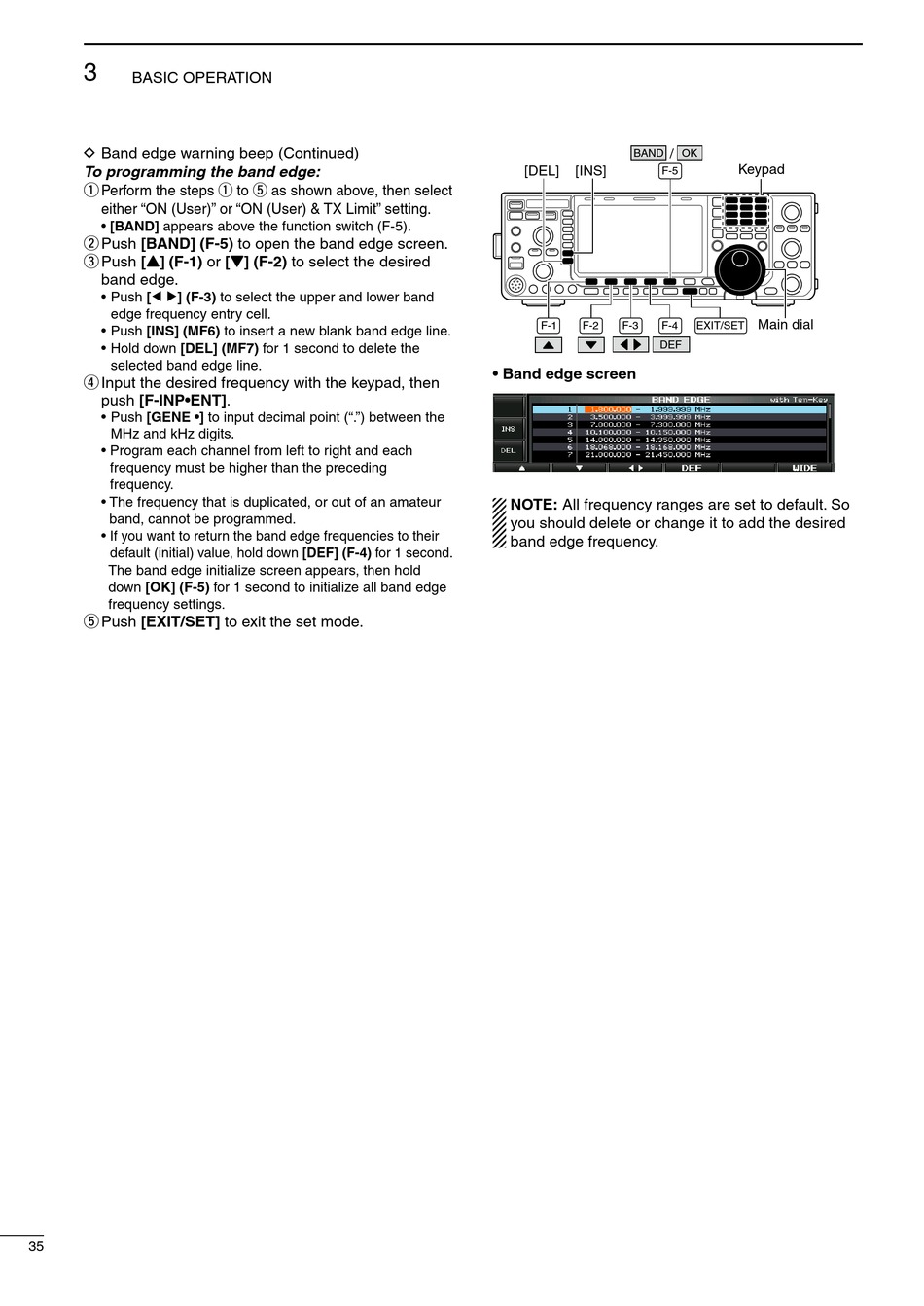

BASIC OPERATION
D
Band edge warning beep (Continued)
To programming the band edge:
q Perform the steps q to t as shown above, then select
either "ON (User)" or "ON (User) & TX Limit" setting.
• [BAND] appears above the function switch (F-5).
w Push [BAND] (F-5) to open the band edge screen.
e Push [Y] (F-1) or [Z] (F-2) to select the desired
band edge.
• Push [Ω ≈] (F-3) to select the upper and lower band
edge frequency entry cell.
• Push [INS] (MF6) to insert a new blank band edge line.
• Hold down [DEL] (MF7) for 1 second to delete the
selected band edge line.
r Input the desired frequency with the keypad, then
push [F-INP•ENT].
• Push [GENE •] to input decimal point (".") between the
MHz and kHz digits.
• Program each channel from left to right and each
frequency must be higher than the preceding
frequency.
• The frequency that is duplicated, or out of an amateur
band, cannot be programmed.
• If you want to return the band edge frequencies to their
default (initial) value, hold down [DEF] (F-4) for 1 second.
The band edge initialize screen appears, then hold
down [OK] (F-5) for 1 second to initialize all band edge
frequency settings.
t Push [EXIT/SET] to exit the set mode.
35
BAND
[DEL] [INS]
F-5
F-1 F-2 F-3 F-4
DEF
• Band edge screen
NOTE: All frequency ranges are set to default. So
you should delete or change it to add the desired
band edge frequency.
/
OK
Keypad
Main dial
EXIT/SET
