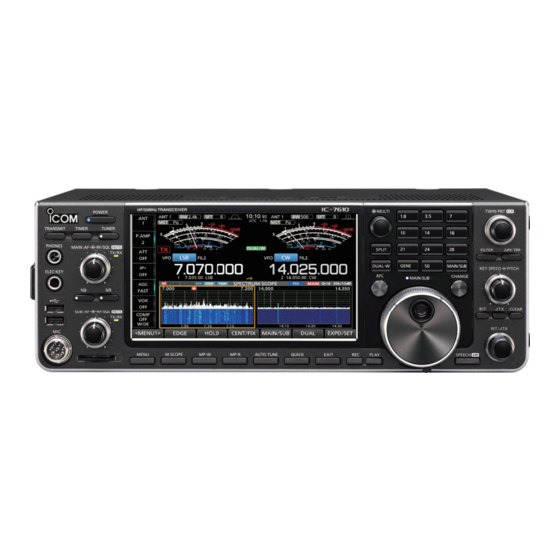

SERVICE MANUAL HF/50 MHz TRANSCEIVER i7610 S-15418XZ-C1 December 2017...
Page 2
7. READ the instructions of the test equipment thoroughly before connecting it to the transceiver. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
Page 3
TABLE OF CONTENTS SECTION 1 SPECIFICATIONS SECTION 2 INSIDE VIEWS SECTION 3 INTERFASE INFORMATION SECTION 4 ADJUSTMENT PROCEDURES PREPARATION ……………………………………………………………………………………… 4-1 RECEIVE ADJUSTMENT FOR A BAND ………………………………………………………… 4-4 RECEIVE ADJUSTMENT FOR B BAND ………………………………………………………… 4-4 4-4 TRANSMIT ADJUSTMENTS ……………………………………………………………………… 4-5 4-5 ANTENNA TUNER/REFERENCE ADJUSTMENTS ……………………………………………...
Page 4
SECTION 1 SPECIFICATIONS General ● Frequency range Receive Operable range 0.030000 MHz ~ 60.000000MHz Guaranteed range 0.500000 MHz ~ 29.999999 MHz 50.000000 MHz ~ 54.000000 MHz Transmit 0.135700 MHz ~ 0.137800 MHz (EUR only) ( The transmit frequency range will differ, 1.800000 MHz 1.999999 MHz depending on the transceiver version.)
Page 5
Receiver ● Receive system Direct sampling superheterodyne system ● Intermediate frequency 12 kHz ● Receive sensitivity (For USA and EXP/Filter shape=Soft) SSB/CW 1.8 MHz~29.999 MHz –16 dBμ (0.16 μV) typ. (10 dB S/N) (Preamp1 ON) 50 MHz band –18 dBμ (0.13 μV) typ. (10 dB S/N) (Preamp2 ON) 0.5 MHz~1.799 MHz +16 dBμ...
Page 6
SECTION 2 INSIDE VIEWS • PA/TUNER (TOP VIEW) TUNER UNIT SHIFT REGISTER J2001 (IC2811) W2001 SHIFT REGISTER (IC2821) ANT1 T/R CTRL (Q503) J2002 SHIFT REGISTER (IC2831) J2003 J1801 ANT2 J1003 J1001 SHIFT REGISTER PA UNIT (IC2841) CURRENT DET (IC401) PWR AMP (Q302) PWR AMP (Q301)
Page 7
• MAIN/DIGISEL-A/DIGISEL-B (TOP VIEW) DIGISEL-A UNIT DIGISEL-B UNIT D _ S CTRL (IC5) D _ S CTRL (IC4) J2017 J2017 D _ S CTRL D _ S CTRL (IC5) (IC4) J2018 J2018 J601 J451 J621 J602 J151 J611 J321 J361 MAIN CPU (IC4001) J7401 [LAN]...
Page 8
NOTE: An 8 V DC bias voltage is applied for Icom microphones. The DC power can 6.35 (d) mm (¼ in) Dash be turned OFF when you use non-Icom microphones in the “MIC Input DC Bias” item on the CONNECTORS screen. +8 V DC output (Maximum 10 mA)
Page 10
MENU » SET > Connectors > USB Output Select (Example) ACC 1/2 socket MENU » SET > Connectors > LAN Output Select To a non-Icom The AF/IF (IF=12 kHz) output level is adjustable in the linear amplifier MENU. Approximately 200 mV rms is at the 50% as the e SEND default.
Page 12
SECTION 4 ADJUSTMENT PROCEDURE 4-1 PREPARATION ■ REQUIRED EQUIPMENT EQUIPMENT SPECIFICATIONS EQUIPMENT SPECIFICATIONS Output voltage: 13.8 V Modified 3.5 mm (⅛ inch) monaural DC power supply Shunt plug Current capacity: 25 A or more plug. (See the next page.) Measuring range: 1~120 W Frequency range: 0.1~60 MHz RF power meter Standard signal...
Page 13
■ ENTERING THE ADJUST MODE 3. While holding down both [MENU] and [M.SCOPE], turn 1. Turn OFF the power. ON the transceiver power to enter the adjust mode. 2. Connect the shunt plug to the [REMOTE] connector on [POWER] the rear panel. (See below) to [REMOTE] [MENU] [M.SCOPE] (Shunt)
Page 14
■ ADJUST MODE SCREENS ● MAIN MENU ADJUST MODE FRONT Preset TX/ID TUNER/REF RX A RX B DSEL ALL Enter the TX/ID adjust menu. Enter the DSEL ALL adjust menu. Enter the TUNER/REF adjust menu. Enter the RX B adjust menu. Enter the RX A adjust menu.
Page 15
4-2 RECEIVE ADJUSTMENTS FOR A BAND • Touch [RX A] on the main menu screen. NOTE: DO NOT change the SSG output level until the two beeps sound. ADJUSTMENT ADJUSTMENT ITEM DISPLAY SETTING CONDITION OPERATION PREPARATION 1 – – Touch [Gain] to start the RX-A total gain adjustment.
4-4 TRANSMIT ADJUSTMENTS • Touch [TX/ID] on the main menu screen. ADJUSTMENT ADJUSTMENT ITEM DISPLAY SETTING CONDITION OPERATION PREPARATION 1 – • Connect the RF power meter to the Touch [ID] to start the [ANT1] connector. transmitter adjustment. 2 VDL IDL SET •...
Page 17
4-4 TRANSMIT ADJUSTMENTS (continued) ADJUSTMENT ADJUSTMENT ITEM DISPLAY SETTING CONDITION OPERATION AM CARRIER 28 POWER AM Ratio 50M • Receiving. Touch [SET]. POWER RATE • Automatically transmitted. Set to 25 W by [DIAL], then touch [SET]. (Two beeps sound 0.5 seconds later.) 30 ALC HF •...
Page 18
4-6 DIGI-SEL ADJUSTMENTS • Touch [DSEL ALL] on the main menu screen. ADJUSTMENT ADJUSTMENT ITEM DISPLAY SETTING CONDITION OPERATION PREPARATION 1 – • No test equipment is connected to Touch [DIGI-SEL ALL] to start neither [ANT1] and [ANT2]. the DIGI-SEL adjustment. DIGI-SEL 2 DIGI-SEL ALL adjustment menu –...
Page 61
SECTION 7 BOARD LAYOUTS The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • DISPLAY UNIT B-8549D (TOP VIEW) POWER DS861 S701 S702 S703 S501 TRANSMIT TIMER TUNER DS507 S704 S705 S706...
Page 62
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • DISPLAY UNIT B-8549D (BOTTOM VIEW) CP101 FINED PTCHL KSPDL 3R3V DASH J771 PBTK FRES PBABK PHNI PBAAK J201 PBBBK PHOL PBBAK PHOR...
Page 63
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • USB UNIT B-8551D • MULTI UNIT B-8556B • JACK UNIT B-8553B (TOP VIEW) (TOP VIEW) (TOP VIEW) • MIC UNIT B-8550C (TOP VIEW) B-8553B JACK B-8556B...
Page 64
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • MIC UNIT B-8550C • MULTI UNIT B-8556B • USB UNIT B-8551D (BOTTOM VIEW) (BOTTOM VIEW) (TOP VIEW) • JACK UNIT B-8553B (BOTTOM VIEW) R104 GND_1...
Page 65
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • MAIN UNIT B-8536F (TOP VIEW) J451 J602 J612 J4902 J151 J321 J4902 J611 J5391 J601 F3R3V F3R3V F3R3V USA5V USA5V USA5V USA5V...
Page 66
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • MAIN UNIT B-8536F (BOTTOM VIEW) R445 R433 R431 R4184 C4179 R4174 C430 IC431 MP4001 C450 R4172 R432 R4171 R439 R450 R446 C4361...
Page 67
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • RF UNIT B-8543F (TOP VIEW) J1172 L3033 X-VERT J1091 DIGIA-OUT J1191 L3032 L3034 L3035 R1193 L3401 C1191 R1096 C3401 R3422 C3421 C3396...
Page 68
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • RF UNIT B-8543F (BOTTOM VIEW) C3433 C3437 C3407 R3415 C3403 Q1191 Q1182 C3031 J4005 L3031 R1184 R3031 C1182 R3033 C3138 C3131 C1194...
Page 69
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • DIGISEL-A/-B UNIT B-8083C (TOP VIEW) • BPF-A/-B UNIT B-8642D L107 L105 L103 (TOP VIEW) L102 L106 L104 L101 RL76 RL74 RL72 C1306...
Page 70
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • DIGISEL-A/-B UNIT B-8083C (BOTTOM VIEW) • BPF-A/-B UNIT B-8642D (BOTTOM VIEW) BPF-A UNIT BPF-A UNIT C141 C143 R105 RFLIA RFLIA RFOA RFOA...
Page 71
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • PA UNIT B-8546F (TOP VIEW) L891 C881 D881 D891 C891 L871 C861 D861 D871 C871 C875 C872 L911 C901 D901 D911 C911...
Page 72
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • PA UNIT B-8546F (BOTTOM VIEW) See the PARTS LIST H/V location on the PARTS LIST for location details. 7-12...
Page 73
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. W2001 • TUNER UNIT B-8547E (TOP VIEW) J1002 TO RF J1101 RL2081 RL2091 RL2221 R561 RL2051 RL2061 RL2071 C561 R564 R565 C2383 C2393...
Page 74
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together. • TUNER UNIT B-8547E (BOTTOM VIEW) See the PARTS LIST H/V location on the PARTS LIST for location details. 7-14...
Page 78
FRONT UNIT PUSH SW, BOARD VR, ENCODERs F3R3V Q505 Q752 JACK BOARD TIMER SBYDS STAND BY MAINDS MAIN PBAAK MP-W [TRANSMIT] CTRL CTRL TUNER PBABK SUB AF MP-R MAIN AF TRSK [PHONES] (AFSK) AUTO TUNE (AFMK) PBBAK MENU PBBBK [M.SCOPE] Q506 Q751 MSCK...
Page 80
FRONT UNIT TO MAIN J351 TO MAIN J361 J771 MICI MICE MULTI PHOR BOARD MFDBK MFDBK PHOL TO MAIN J331,J341 MFDAK MFDAK DISPLAY BOARD J109 USB1_HP J801 USB1_HM USB1_5V PBBAK PBBAK BOARD PBBBK PBBBK USB2_HP PBAAK PBAAK USB2_HM PBABK PBABK USB2_5V BOARD PBTK...
Page 82
• DISPLAY UNIT (2/2) • MIC UNIT EP231 D3R3V 2.9 V 7.9 V MMZ1005B601C 0.01 EP201 3.0 V MICI MMZ1005B601C MICI 100U MICE MICE MICE MMZ1608Y102BT MMZ1608D301B AF OUT EP10 DISPLAY UNIT IC453 MMZ1608D301B (1/2) R286 MIC U/D MPZ2012S601A MUDL J201 RxOUT17 MUDL...
Page 83
• VR UNIT MAIN RF/SQL MAIN AF Maximum counterclockwise Maximum counterclockwise Center 1.6 V Center 1.6 V 3.3 V Maximum clockwise 3.3 V Maximum clockwise 3.3 V 3R3V 3R3V MAIN AF/ (RF/SQL) RFML RFML AFML AFML AFMK AFMK RFSL DISPLAY UNIT 4.7k RFSL AFSL...
Page 95
• RF UNIT (1/4) J1001 TUNER UNIT (2/2) RX-B When a different antenna is used for each R1043 R1039 R1035 R1031 MAIN and SUB bands during Dualwatch or Split operation. C1034 C1033 C1032 C1031 TX: 0 V J1002 RX: 13.3 V RL1021 RL1003 RL1001...
Page 98
• RF UNIT (4/4) D4005 R4026 R4036 3R3V 3R3V TX: 0.2 V L1SS400 4.7K 4.7K SENI TX: 0 V RX: 0.6 V IC4001 IC4002 RX: 6.7 V TX: 3.0 V R4027 RX: 0 V Q4006 Q4004 L2SC4081 NJM2904CRB1 NJM2904CRB1 DSC7004S0 Q4003 [ACC(1)] J4006...
Page 99
• BPF-A UNIT • BPF-B UNIT RF UNIT (2/4) RF UNIT (3/4) J1002 J1002 RF UNIT (2/4) RF UNIT (3/4) J1001 J1001 BA10BS BA1BS BA10AS BA9BS BA1AS BA11BS BA9AS BA7BS BA11AS BA8BS BA7AS BA8AS 0.5~1.599MHz L1003 L5204F D1001 C1002 L1002 L1004 L1005 0.5~1.599 MHz...
Page 100
• PA UNIT (1/2) R308 TX: 13.5 V RX: 13.7 V C312 R309 TX: 13.5 V RX: 13.7 V 0.0068 R205 *R302 C304 TX: 13.5 V R306 PA UNIT (2/2) RX: 13.7 V 0.0068 L304 Q301 RD100HHF1C C202 LA-262 R107 Q201 RD15HVF1 0.047...
Page 101
• PA UNIT (2/2) PA UNIT (1/2) TUNER UNIT (1/2) RL821 RL822 L822 L823 J941 L821 LR-263 LR-235 C822 C824 100U 180P 100P C823 3.5 MHz 180P 4.63 MHz FTR-B4CA009Z FTR-B4CA009Z L941 +14V +14V RL841 RL842 100U L842 L843 L841 LR-552 LR-238 C842...
