RECEIVE AND TRANSMIT

■ Spectrum scope screen

This DSP-based spectrum scope allows you to
display the activity on the selected band, as well as
the relative strengths of various signals.
The IC-7600 has two spectrum scope modes. One is
the center mode, and another one is the fixed mode.
You can also turn the waterfall display ON or OFF for
your convenience.
In addition, there is a mini scope screen to save
screen space.

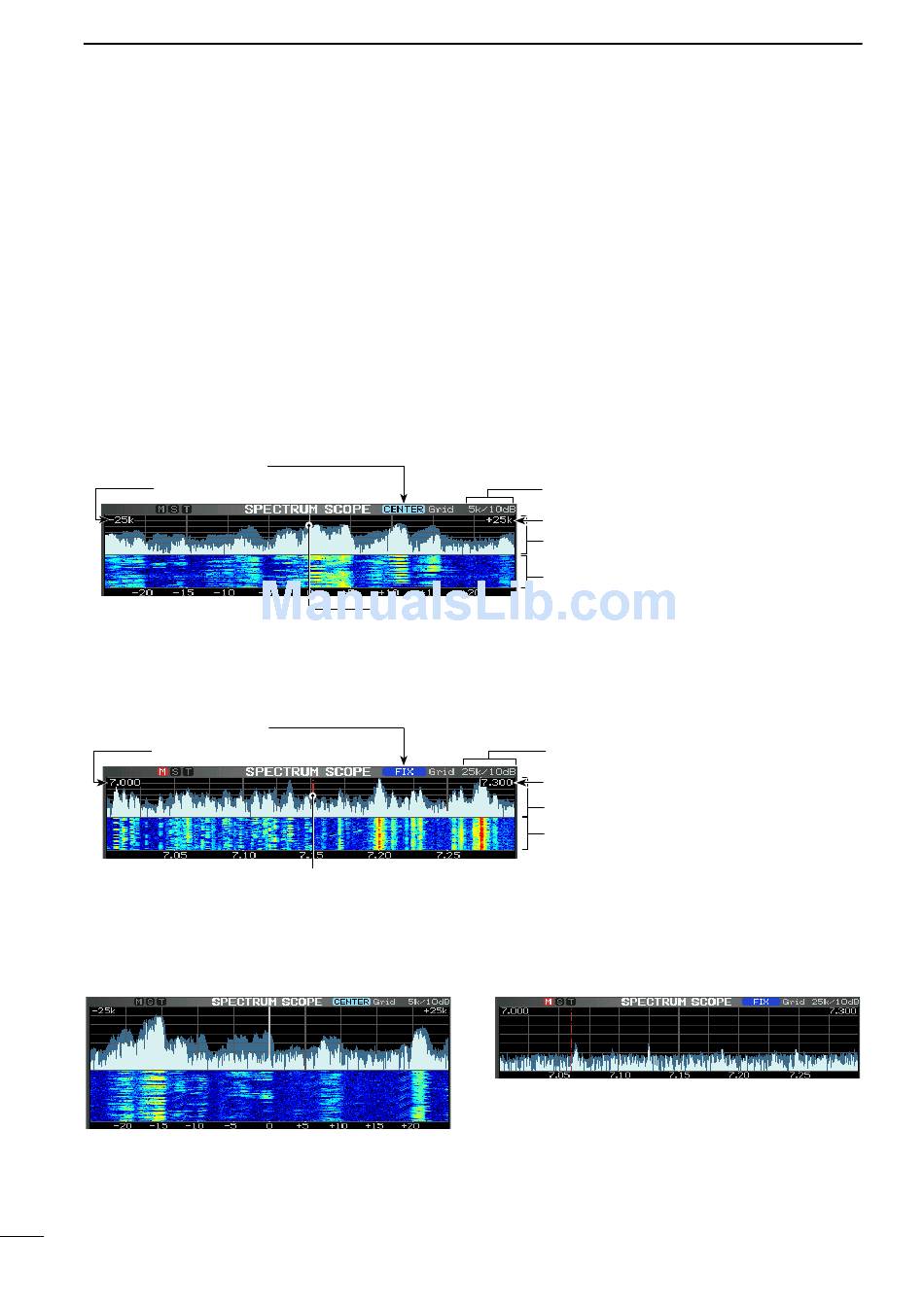

• Center mode screen
Center/Fixed mode icon
Span (Display range)
• Fixed mode screen
Center/Fixed mode icon
Edge (Lower frequency)
• Center mode screen (Wide screen)
69
Display frequency (stays on Center)
Display frequency (moves)
Grid (frequency/level)
Span (Display range)
Spectrum scope zone
Waterfall zone
Grid (frequency/level)
Edge (Upper frequency)
Spectrum scope zone
Waterfall zone
• Fixed mode screen (Waterfall OFF)
