Icom IC-7600 Instruction Manual page 16

1

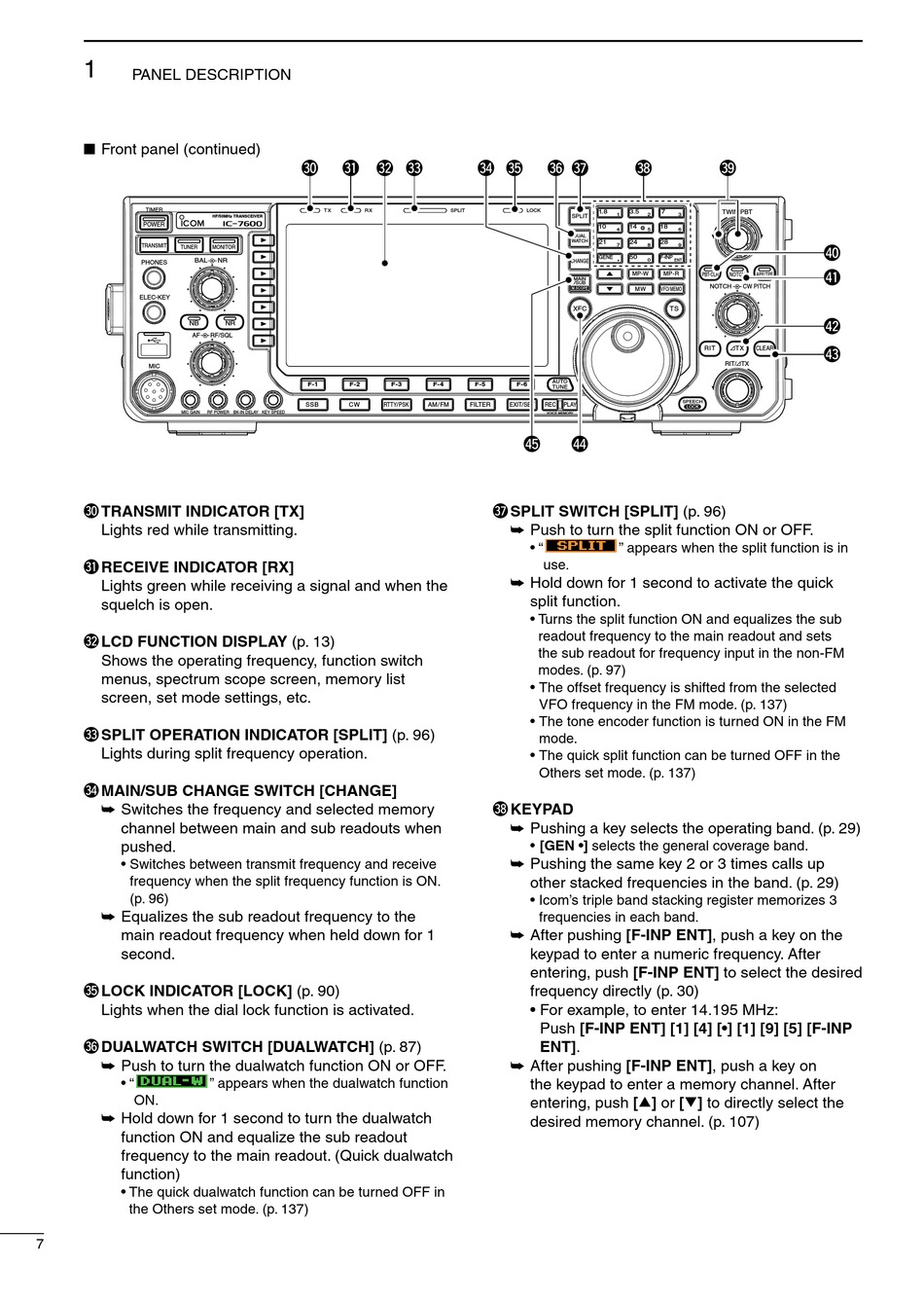

PANEL DESCRIPTION
Front panel (continued)
■
TIMER
POWER
TRANSMIT
TUNER
BAL
PHONES
ELEC-KEY
NB
AF RF/SQL
MIC
MIC GAIN RF POWER BK-IN DELAY KEY SPEED
#0 TRANSMIT INDICATOR [TX]
Lights red while transmitting.
#1 RECEIVE INDICATOR [RX]
Lights green while receiving a signal and when the
squelch is open.
#2 LCD FUNCTION DISPLAY (p. 13)
Shows the operating frequency, function switch
menus, spectrum scope screen, memory list
screen, set mode settings, etc.
#3 SPLIT OPERATION INDICATOR [SPLIT] (p. 96)
Lights during split frequency operation.
#4 MAIN/SUB CHANGE SWITCH [CHANGE]
➥ Switches the frequency and selected memory
channel between main and sub readouts when
pushed.
• Switches between transmit frequency and receive
frequency when the split frequency function is ON.
(p. 96)
➥ Equalizes the sub readout frequency to the
main readout frequency when held down for 1
second.
#5 LOCK INDICATOR [LOCK] (p. 90)
Lights when the dial lock function is activated.
#6 DUALWATCH SWITCH [DUALWATCH] (p. 87)
➥ Push to turn the dualwatch function ON or OFF.
• " " appears when the dualwatch function
ON.
➥ Hold down for 1 second to turn the dualwatch
function ON and equalize the sub readout
frequency to the main readout. (Quick dualwatch
function)
• The quick dualwatch function can be turned OFF in
the Others set mode. (p. 137)
7
#0 #1 #2
T X RX
HF/50MHz TRANSCEIVER
MONITOR
NR
NR
F- 1 F- 2
SSB CW RTTY/PSK
#3 #4 #5 #6 #7
SPLIT LOCK
AUTO
F- 3 F- 4 F- 5 F- 6
TUNE
AM/FM FILTER EXIT/SET REC PLAY
VOICE MEMORY
$5
#7 SPLIT SWITCH [SPLIT] (p. 96)
➥ Push to turn the split function ON or OFF.
• "
use.
➥ Hold down for 1 second to activate the quick
split function.
• Turns the split function ON and equalizes the sub
readout frequency to the main readout and sets
the sub readout for frequency input in the non-FM
modes. (p. 97)
• The offset frequency is shifted from the selected
VFO frequency in the FM mode. (p. 137)
• The tone encoder function is turned ON in the FM
mode.
• The quick split function can be turned OFF in the
Others set mode. (p. 137)
#8 KEYPAD
➥ Pushing a key selects the operating band. (p. 29)
• [GEN •] selects the general coverage band.
➥ Pushing the same key 2 or 3 times calls up
other stacked frequencies in the band. (p. 29)
• Icom's triple band stacking register memorizes 3
frequencies in each band.
➥ After pushing [F-INP ENT], push a key on the
keypad to enter a numeric frequency. After
entering, push [F-INP ENT] to select the desired
frequency directly (p. 30)
• For example, to enter 14.195 MHz:
Push [F-INP ENT] [1] [4] [•] [1] [9] [5] [F-INP
ENT].
➥ After pushing [F-INP ENT], push a key on
the keypad to enter a memory channel. After
entering, push [∫] or [√] to directly select the
desired memory channel. (p. 107)
#8 #9
1.8 3.5 7 TWIN-PBT
1 2 3
SPLIT
10 14 18
4 5 6
DUAL
WATCH 21 24 28
7 8 9
GENE 50 F-INP
0
CHANGE ENT
MP-W MP-R
PBT - CLR NOTCH
MAIN
/SUB
NOTCH CW PITCH
M.SCOPE MW VFO/MEMO
XFC TS
RIT TX
RIT/ TX
SPEECH
LOCK
$4
" appears when the split function is in
$0
$1
APF/TPF
$2
CLEAR
$3
