13

CONTROL COMMAND

I Remote jack (CI-V) information

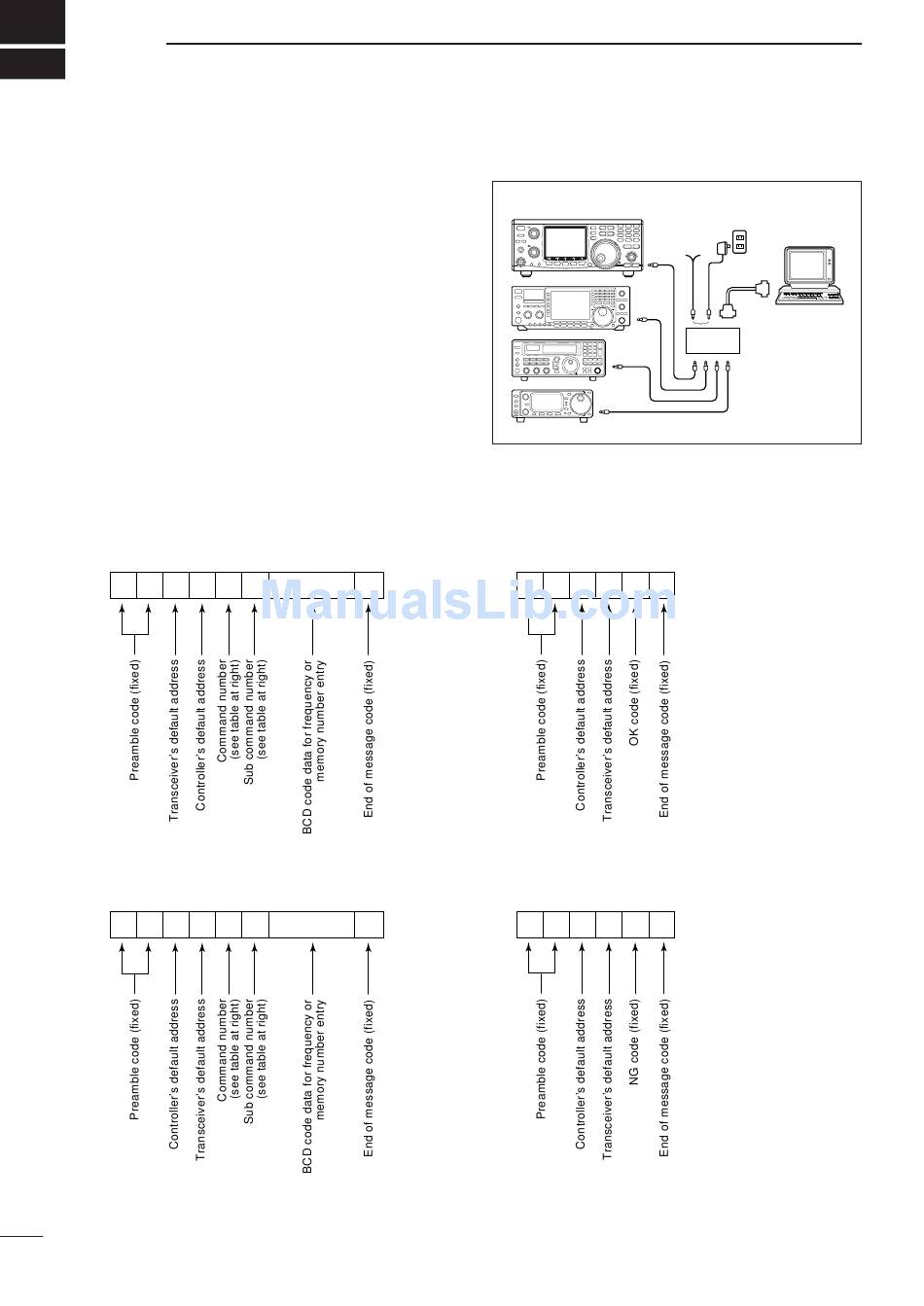

• CI-V connection example
The transceiver can be connected through an optional
CT-17
CI-V LEVEL CONVERTER
equipped with an RS-232C port. The Icom Communi-
cations Interface-V (CI-V) controls the following func-
tions of the transceiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to a personal computer equipped with an
RS-232C port. See p. 59 for setting the CI-V condition
using set mode.
• Data format
The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area or sub command is added
for some commands.
CONTROLLER TO IC-910H
q w e
FE FE 60 E0 Cn Sc
IC-910H TO CONTROLLER
q w e
FE FE E0 60 Cn Sc
78
to a personal computer
r t y u
Data area FD
r t y u
Data area FD
From The N3UJJ.COM Document Library From The N3UJJ.COM Document Library
IC-910H
mini-plug cable
OK MESSAGE TO CONTROLLER
FE FE E0 60 FB FD
NG MESSAGE TO CONTROLLER
FE FE E0 60 FA FD
BC-25
(optional)
9–15
V DC
personal
computer
ct- 17
