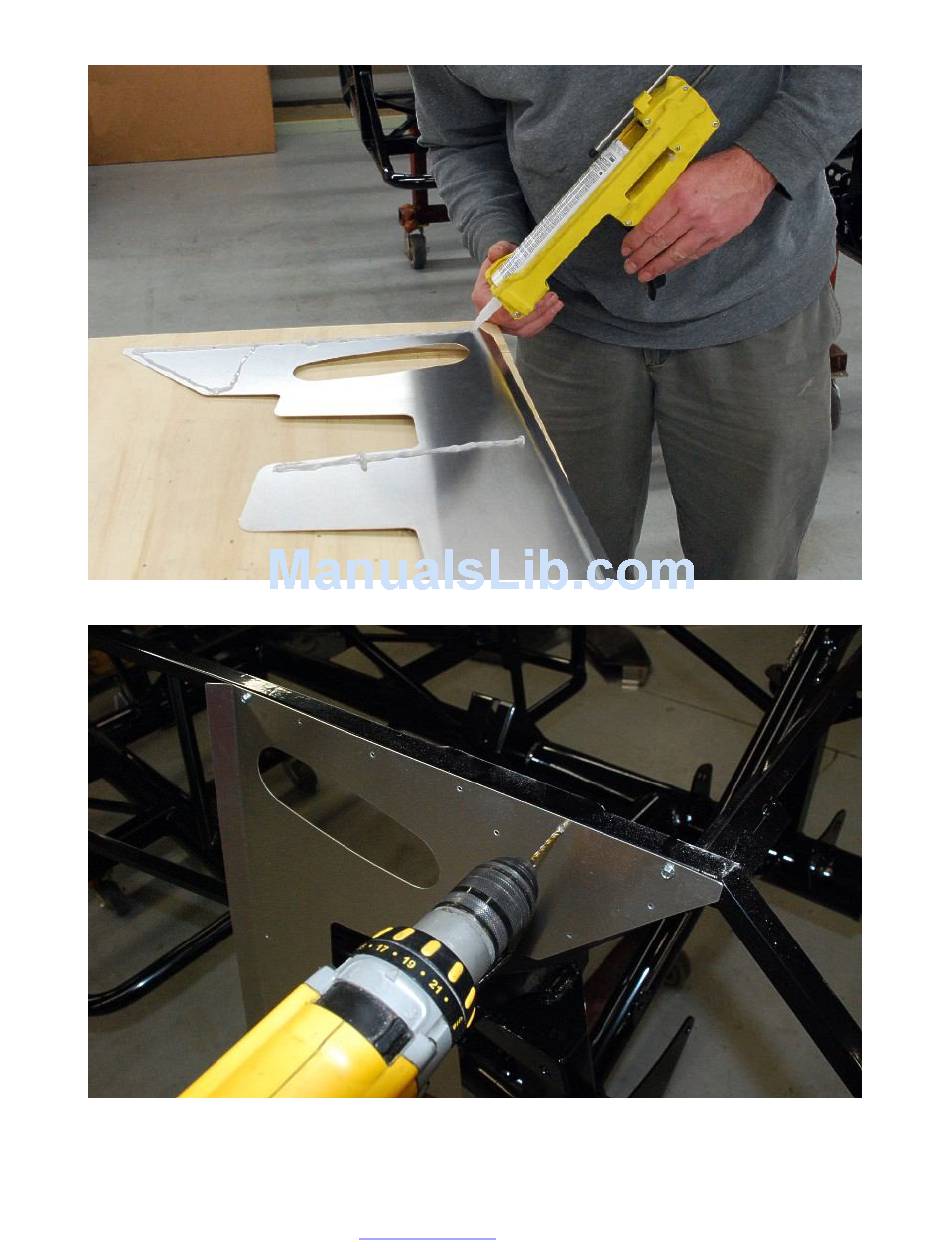

Apply silicone to the panel or chassis (whichever is easier) in the areas where they will make contact.
Use the original #6 screws to remount the panel then drill the
/
" rivet holes through the panel holes into
1
8
the chassis.
89
www.factoryfive.com
508-291-3443
