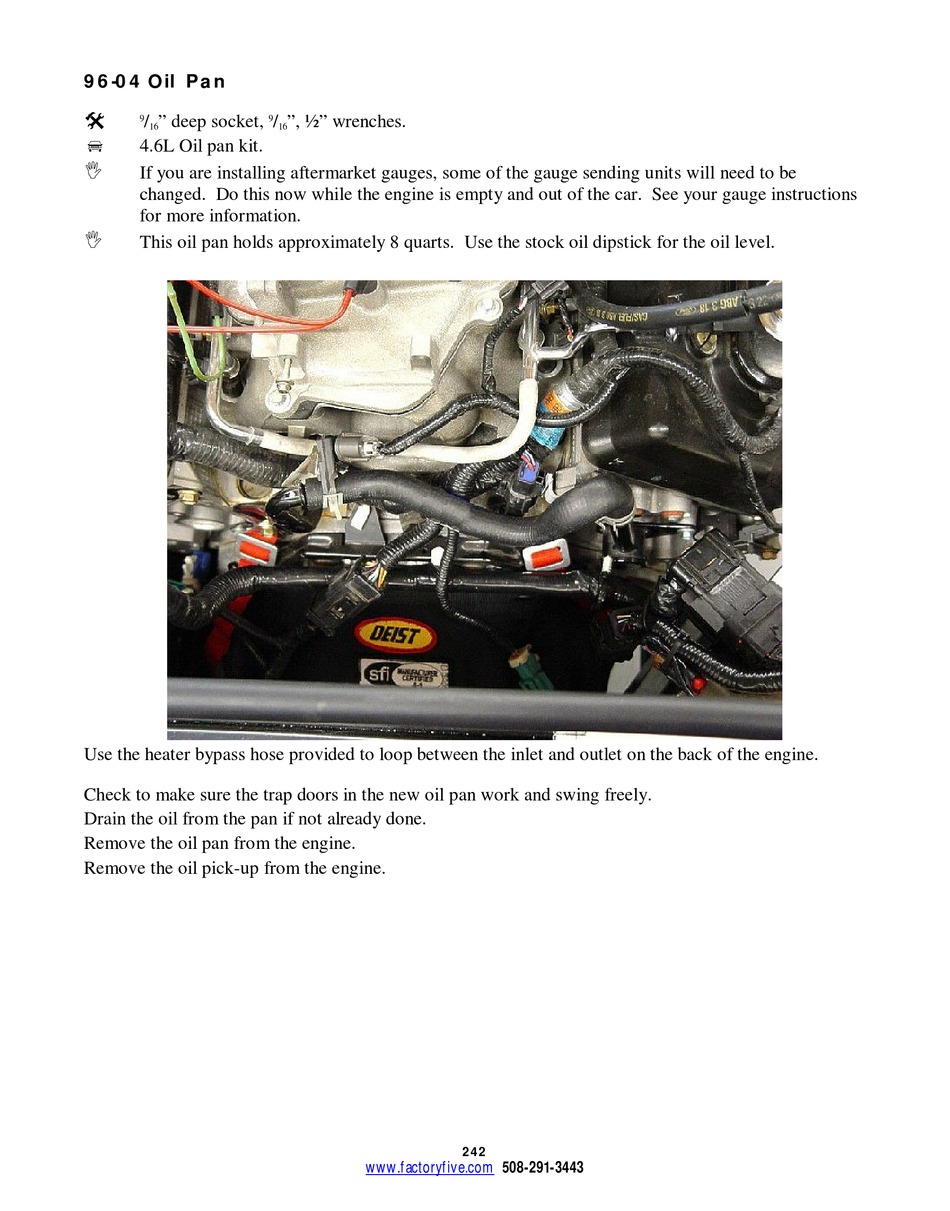

96-04 Oil Pan


9 / " deep socket,
16

4.6L Oil pan kit.

If you are installing aftermarket gauges, some of the gauge sending units will need to be
changed. Do this now while the engine is empty and out of the car. See your gauge instructions
for more information.

This oil pan holds approximately 8 quarts. Use the stock oil dipstick for the oil level.
Use the heater bypass hose provided to loop between the inlet and outlet on the back of the engine.
Check to make sure the trap doors in the new oil pan work and swing freely.
Drain the oil from the pan if not already done.
Remove the oil pan from the engine.
Remove the oil pick-up from the engine.
9 / ", ½" wrenches.
16
